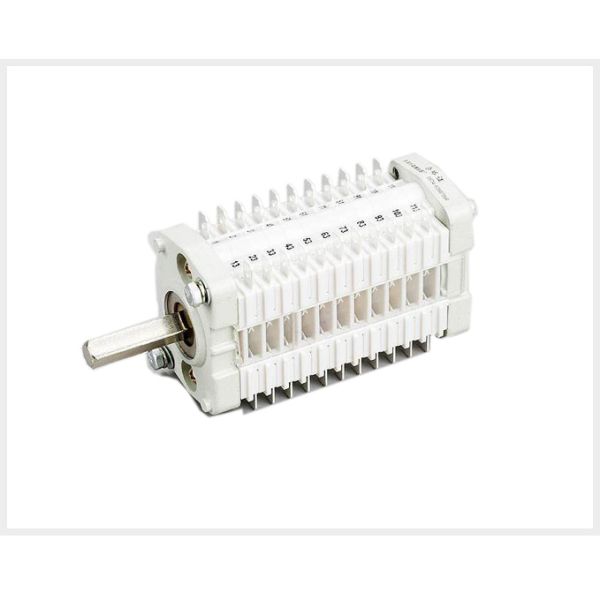

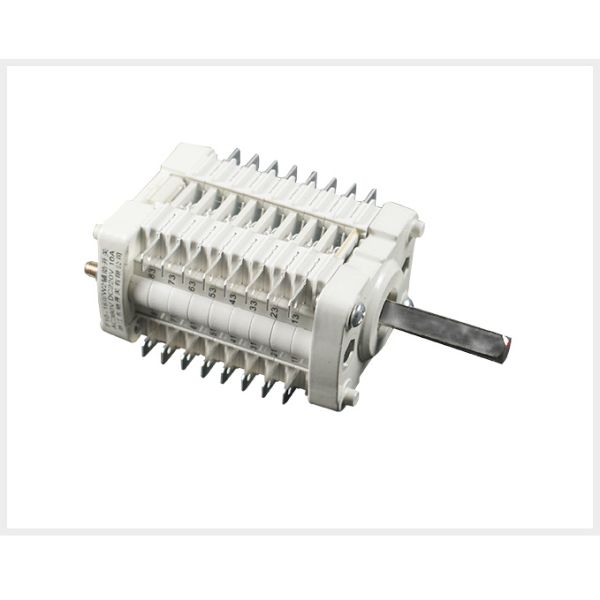

Power Protection Circuit Breaker Accessories F10 Circuit Breaker Auxiliary Switch 8NO+8NC 129mm
Power Protection Circuit Breaker Accessories F10 Circuit Breaker Auxiliary Switch 8NO+8NC 129mm
Power Protection Circuit Breaker Accessories F10 Circuit Breaker Auxiliary Switch 8NO+8NC 129mm
Power Protection Circuit Breaker Accessories F10 Circuit Breaker Auxiliary Switch 8NO+8NC 129mm
Specifications
Brand Name :
MacweyTEK
Model Number :
F10
Certification :
IEC Testing Report
Place of Origin :
China
MOQ :
1 pc
Price :
$5-$10
Payment Terms :
T/T
Supply Ability :
20000 pcs
Delivery Time :
7 days
Packaging Details :
carton
Name :
Circuit Breaker Accessories
Locating Size :
m3*48
Pulling rotation style mechanism :
via square shaft
Application :
High Voltage Switch Operating Mechanisms
Description


Circuit Breaker F10 Series Auxiliary Switch for Power Protection

1 Application
F10口11/W2 series auxiliary switch is a product of localization, which introduces high technology from Siemens in
Germany, it is used for closing, breaking, interlock, and signal circuit in different high voltage switches' operating mechanism.
Widely used in vacuum circuit breakers and spring operating mechanisms, such as VS1(ZN63)/ZN12/3AF/ZN65/CT19/CT口,etc.
What's more, it could be used as change-over switch, combination switch.
Its performance meets the technical standards from China and European countries.

2 Structural Features
The structure of this product is pulling-rotation style, rotate 90° through square shaft, to move the contacts,
realizing the touching or seperation from fixed contact, so as to connect or break all controlled electric circuit.
The auxiliary switches with different contact quantities share the same mounting dimensions.
Usually, users could use bracket or installing plate's screw hole 4-Φ6 or 2-Φ6, 2-M5, locating size m3*48,
and auxiliary switch could be mounted in right position.

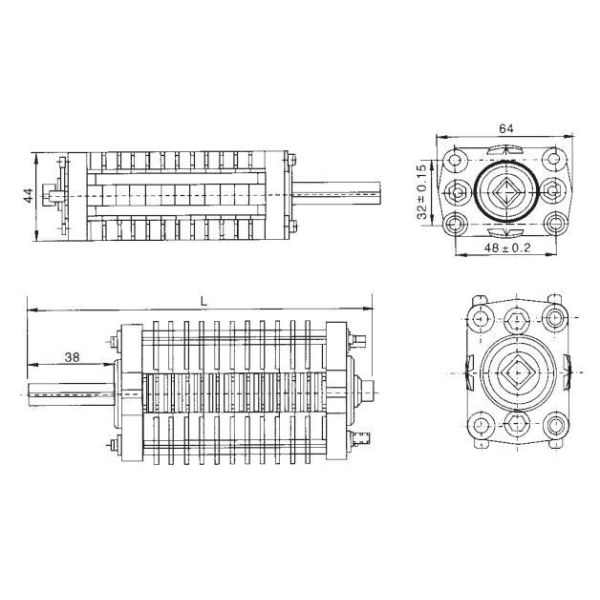

3. Outline Dimension

Power Protection Circuit Breaker Accessories F10 Circuit Breaker Auxiliary Switch 8NO+8NC 129mm

Model No. Specification Length (L)
F10-4/W2 2K2B 87
F10-6/W2 3K3B 94
F10-8/W2 4K4B 101
F10-10/W2 5K5B 108
F10-12/W2 6K6B 115
F10-14/W2 7K7B 122
F10-16/W2 8K8B 129
F10-18/W2 9K9B 136
F10-20/W2 10K10B 143
F10-22/W2 11K11B 150
F10-24/W2 12K12B 157
