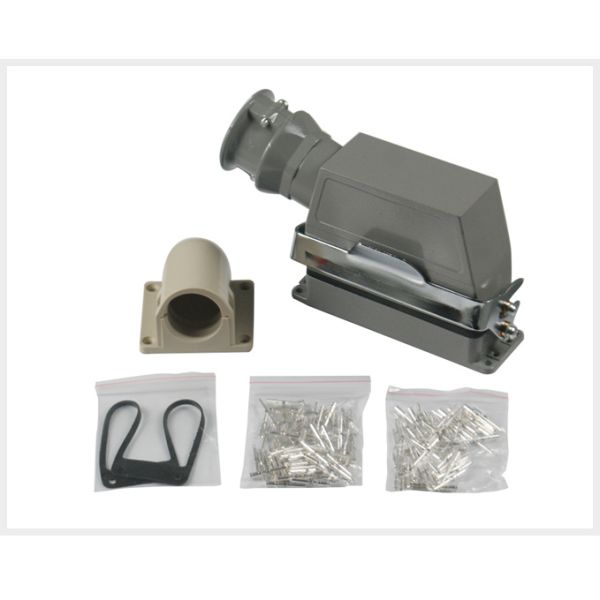

24 Pairs - 64 Pairs Vacuum Breaker Plug CD Secondary Socket For A-B-B VCB
24 Pairs - 64 Pairs Vacuum Breaker Plug CD Secondary Socket For A-B-B VCB
Specifications
Brand Name :
MacweyTEK
Model Number :
CD Series plug
Certification :
IEC Type Test Report
MOQ :
1pc
Price :
$10-$30
Payment Terms :
T/T
Supply Ability :
5000 pcs
Delivery Time :
10 days
Packaging Details :
carton
Name :
Vacuum Breaker Plug
Rated voltage :
AC380V, DC220V
Rated current :
AC16A, DC10A
Mechanical life :
2000 times
Pairs :
24 pairs, 32 pairs, 46 pairs, or 64 pairs
Description
CD Series Secondary Connector Socket A-B-B VCB Plug 24-64 Pairs
Structural Features
The connector socket features a plug pin and plug hole design with contact options of 24 pairs, 32 pairs, 46 pairs, or 64 pairs to meet technical requirements.
Compared to similar imported products, we've enhanced the connector between socket base and flexible pipe with improved fixed seat design. It comes with plastic flexible pipe (internally coated with metal spring) for durability, featuring an ergonomic exterior design for comfortable handling and easy operation. The built-in positioning device prevents misoperation.
Connecting Method
  1. Open the connector socket's locking device and separate plug from socket
  2. Remove the cover plates
  3. Insert cable into plug pin or plug hole wiring holes and secure with special clamp
  4. Insert plug pin or plug hole into matched mounting holes of plug/socket base until hearing a click sound indicating proper installation
  5. Route cable through wire lead and match with professional plastic soft pipe M36*8 (internally coated with metal spring)
  6. Secure cover plates on plug and socket base
  7. Fix the other end of cables to equipment using special turn head
  8. Connector socket cables are led out from the bottom and fixed to equipment
Basic Parameters
Rated voltage AC380V, DC220V
Rated current AC16A, DC10A
Mechanical life 2000 times
