GDZ-58 Secondary Connector Socket (new style)

1 Application

GDZ-58 secondary connector socket is a new style product, developed by our own company, equipped with international advanced technics,

it could match with current main vacuum circuit breakers, such as VS1, VD4, and connect to main popular switchgears, such as KYN28 series.

Its performance meets the standards from China and European countries.

2 Basic Technical Data

(1) Rated voltage: AC380, DC220V

(2)Rated current: AC16A, DC10A

(3) Mechanical life: 2000 times

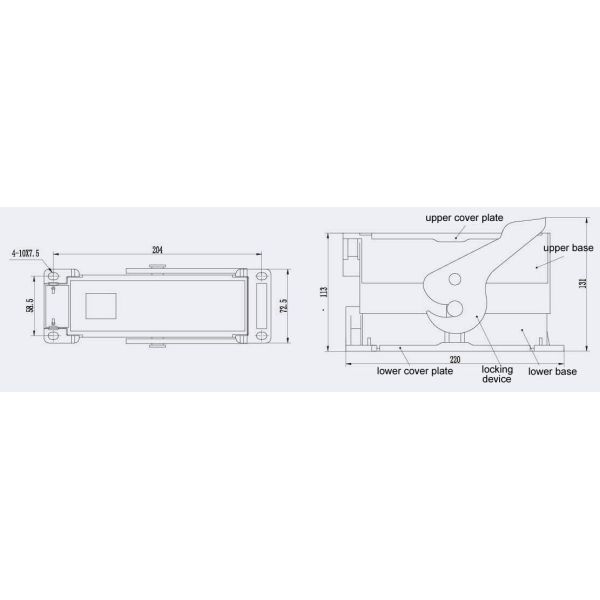

3. Structural Features

The product's contact is with structure of plug pin and plug hole, the quantity of contacts is 58 pairs, and using quantity could be chosen freely

according technical need.

Connecting Way: Open the connector socket's locking device, separate plug from socket, respectively take down the cover plate, put cable in

plug pin or plug hole's wiring holes, an fasten it with special clamp. Plug pin or plug hole is respectively put in the matched mounting holes of plug

or socket base matched, when hearing a sound of crack, the mounting is in right place. The cable is out from wire lead, and matched with

professional plastic soft pipe M36*8 (inside coated with metal spring), cover plates respectively fixed on plug and socket base, another

side of cables fixed on equipment by a special turn head.

4. Special Demount Tool for GDZ-58 Secondary Connector Socket (new style)

When plug pin and plug hole are mounted wrongly, it could be adjusted freely by a special demount tool(fastening yoke),

and won't bring damages to plug pin, plug hole's the surface coating as well as socket base.

5. The advantages of the new style connector socket

(1) Structure is more easy

(2) Assembly is more convenient

(3) Furtherly improved product's stability
