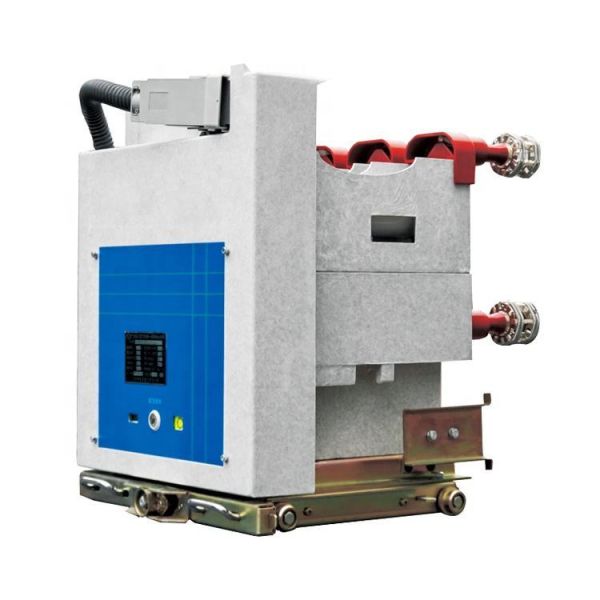

315A 7.2 KV Vacuum Contactor Motor Protection High Voltage Contactor With 300,000 Mechanical Life
315A 7.2 KV Vacuum Contactor Motor Protection High Voltage Contactor With 300,000 Mechanical Life
Specifications
Brand Name :
MacweyTEK
Model Number :
MKVC
Certification :
IEC
Place of Origin :
China
MOQ :
1 piece
Price :
$1500
Payment Terms :
T/T
Supply Ability :
10000 pcs
Delivery Time :
15 days
Packaging Details :
wooden cases
Name :
7.2 KV Vacuum Contactor
Rated voltage :
7.2kV
Rated current :
315A
Mechanical Life :
300,000 Cycles
Holding Configuration :
Electrical/Mechanical/Permanent Magnet
Application Scope :
HV Motor Protection, Industrial/Marine Systems
Description

7.2kV Vacuum Contactor And Fuse Combination Apparatus Medium Voltage MV&HV Contactors Vacuum Circuit Breakers

MKVC vacuum contactor is a new-generation medium-voltage vacuum switch element series product developed with advanced domestic and international technology. The MKVC product shares identical dimensions with A-B-B's VC contactor, enabling installation in minimum 650mm mid-mounted switchgear.
Applications
The MKVC vacuum contactor operates in conjunction with high-voltage fuses capable of breaking wide-range short-circuit fault currents. Designed for AC systems with voltages of 3.6~12kV and frequencies of 50Hz/60Hz requiring extensive opening and closing operation cycles, it is particularly suitable for frequent switching applications. Widely used for protection and control of electrical equipment including high-voltage motors, transformers, capacitor banks, induction furnaces, and more in thermal power plants, metallurgy, petrochemicals, mining plants, and shipping industries.
Configuration Options
The GPVC vacuum contactor offers three configurations: electrical holding, mechanical self-holding, and permanent magnet holding. Control electromagnets facilitate closing operations through the operating mechanism, while opening operations are achieved via opening springs.
Technical Specifications
MKVC vacuum contactors are available in two voltage grades with corresponding fuse compatibility:
MKVC 7 - Rated voltage 3.6~7.2kV, current range 6A to 315AMKVC 12 - Rated voltage 12kV, current range 6A to 160A
Item Unit 3.6kV 7.2kV 12kV
Rated voltage kV 3.6 7.2 12
1min Power frequency withstand voltage kV 20 32 42
Lighting impulse withstand voltage kV 46 60 75
Rated current A 400 315 200
Rated short-time withstand current (4s) kA 4
Rated peak withstand current kA 10
Expected short-circuit breaking current kA 50
Expected short-circuit close current kA 130
Main circuit resistance uΩ ≤250+RFuse
Max. transfer current A 4000 4000 3200
Rated current breaking times times 250,000
Mechanical life (Mechanical hole-type) times 300,000
Mechanical life (Electrical hold-type) times 500,000
Main circuit resistance uΩ ≤150
