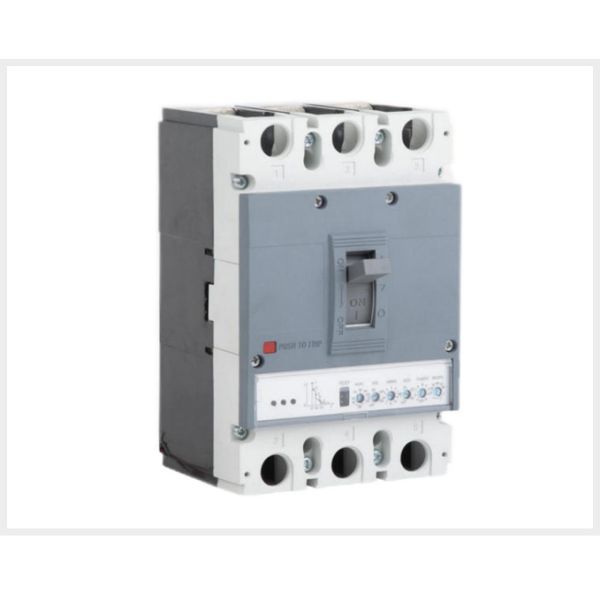

CE Certificated LV Circuit Breaker Moulded Case Electronic Circuit Breaker 63A 125A 200A 350A 500A 800A
CE Certificated LV Circuit Breaker Moulded Case Electronic Circuit Breaker 63A 125A 200A 350A 500A 800A
Specifications
Brand Name :
MacweyTEK
Model Number :
MKB3E
Certification :
CE, CCC
Place of Origin :
China
MOQ :
1 pc
Price :
$10
Payment Terms :
T/T
Supply Ability :
50000 pcs
Delivery Time :
20 days
Packaging Details :
carton & pallet
Name :
LV Circuit Breaker
Available Current Ratings :
63A 125A 200A 350A 500A 800A
Rated insulation voltage :
1000V
Rated operating voltage :
400V and below
Key Features :
Comprehensive protection
breaking capacity types :
L-type (standard) and M-type (medium)
Description

CE certificated Electronic Type Moulded Case Circuit Breaker Low Voltage MCCB 63A, 100A,200A, 350A, 500A,800A


◎ The MKB3E series electronic moulded case circuit breakers (hereinafter referred to as circuit breakers)are
suitable for AC 50Hz(or 60Hz) circuits with rated insulation voltage of1000V,rated operating voltage of 400V
and below,and rated operating current of 1250A for infrequent switching and infrequent starting of motors.
The circuit breaker has overload long delay inverse time,short circuit short delay inverse time, short circuit
short delay definite time,short circui instantaneous and under voltage protection functions,as wellas residual
current protection (optional)and phase loss protection function(optional),which can protect the circuit and
powerequipment from damage.The circuit breaker has complete and accurate protection characteristics,
which can improve power supply reliability and avoid unnecessary power outages.The "Z,B"type controller
has a communication interface and can be used for “three remote”to meet the requirements of the control
center and automation system.
◎ Circuit breakers are clasified into two types based on their rated ultimate short-circuit breaking capacity:
L-type(standard type)and M-type (medium breaking type).This circuit breaker has the characteristics of small
volume,high breaking capacity,short arc and high vibration resistance.
◎ The circuit breaker can be installed vertically(i.e.upright)orhorizontally(i.e.transversely).
◎ The circuit breaker has isolation function,and its corresponding symbol is_/
◎ The circuit breaker allowsfor reverse wiring.


Main technical performance parameters of electronic moulded case circuit breaker

Rated frame current Inm(A)

125

250

400

400 frame

capacity

Increase 630

630

800 frame

630 type

800

Rated current IN,40°℃ Setting current Ir¹

(adjustable)

In:32A(Ir=16A,

20A,25A,32A)

In:63A(Ir1=63A, 35A,40A,45A,50A 55A,60A,63A)

In:125A(Ir1=63A, 65A,70A,75A,

80A,85A,90A,

95A,100A,125A)

100,125,140, 160,180,200,

225,250,

200,225, 250,280,

315,350, 400

252,315, 378,441, 504,567, 450,500,

560,630,

250,280,315, 350,375,400,

450,500,560,

630

400,420,440, 460,480,500,

530,560, 600,630

630,640,660, 680,700,720,

740,760, 780,800,

Rated insulation voltage Ui(V)

1000

1000

1000

1000

1000

1000

1000

Rated impulse withstand voltage Uimp(kv)

12

12

12

12

12

12

12

Rated operating voltage Ue(V),AC 50/60Hz

400

400

400

400

400

400

400

Selective category

B

B

B

B

B

B

B

Arc distance(mm)

≤50

≤50

≤100

≤100

≤100

≤100

≤100

Operating

performance (times)

Electrical life

(power-on)

3000

3000

1500

1500

1500

1000

1000

Mechanical life

(power-off)

7000

7000

5000

5000

5000

3000

3000

Breaking capacity level

L

M

L

M

L

M

L

M

L

M

L

M

L

M

Numberof poles

3P

■

■

■

■

■

■

■

■

■

■

■

■

■

4P

■

■

■

■

■

■

■

■

■

■

■

■

■

■

Rated ultimate short circuit breaking capacity Icu(KA)

Ue=AC400V

25

35

25

35

50

65

50

65

50

65

50

65

50

65

Rated service

short circuit breaking capaity Ics(KA)

Ue=AC400V

70%

70%

70%

70%

70%

70%

70%

70%

70%

70%

70%

70%

70%

70%

Rated short time withstand current cw/1s(KA)

Ue=AC400V

5

5

5

5

8

8

8

8

10

10

10

10

10

10
