LGX Box FWDM Filter 1310 1550 1650nm Wavelengths Low Insertion Loss for Optical Communication
LGX Box FWDM Filter 1310 1550 1650nm Wavelengths Low Insertion Loss for Optical Communication
LGX Box FWDM Filter 1310 1550 1650nm Wavelengths Low Insertion Loss for Optical Communication
LGX Box FWDM Filter 1310 1550 1650nm Wavelengths Low Insertion Loss for Optical Communication
LGX Box FWDM Filter 1310 1550 1650nm Wavelengths Low Insertion Loss for Optical Communication
LGX Box FWDM Filter 1310 1550 1650nm Wavelengths Low Insertion Loss for Optical Communication
Specifications
Brand Name :
HJY
Model Number :
WDM
Certification :
ISO9001
Place of Origin :
China
MOQ :
10pcs
Price :
12-100
Payment Terms :
L/C,T/T
Supply Ability :
1500 per weeks
Delivery Time :
5-8 work days
Packaging Details :
Neutrial Packing
central wavelengths :
1310,1550,1650nm
pass channel wavelength range :
1310+-25nm and 1550+-25nm
reflection channel wavelength range :
1650+-20nm
Dimensions :
129*118*44mm
Package Dimension :
LGX box
Operatingtemperature :
-40°C to +85°C
Productname :
FWDM Filter
Packagetype :
Module / Box
Power Handling :
≤ 500mW
Fwdm :
1650nm Reflection WDM Filter
Operating Bandwidth :
±20nm
Centerwavelength :
1310 nm / 1550/1650 nm
Polarizationdependentloss :
≤ 0.2 dB
Pass Channel Isolation :
>30
Insertion Loss :
<1.5dB
Operting Humidity Range :
5 to 90%
Return Loss :
>50dB
Description
LGX Box FWDM Filter 1310 1550 1650nm Wavelengths Low Insertion Loss for Optical Communication

Crafted for high-performance optical network upgrades, this LGX Box FWDM Filter integrates dual FWDM filters paired with spliced reference branches, enabling targeted bypass of 1650nm wavelengths. Leveraging premium Thin Film Filter (TFF) technology, it delivers stable, consistent operation even in harsh optical network conditions, making it a reliable choice for fiber optic transmission system enhancement.

Product Overview

FTTX Filter WDM Modules are widely deployed across EDFA systems, Raman amplifiers, WDM optical networks and professional fiber optic instrumentation. Engineered to integrate and split optical signals of distinct wavelengths across a broad spectrum, these modules dramatically boost single-fiber bandwidth, enabling high-efficiency bidirectional data transmission. They serve as a cornerstone component for optical network upgrades, infrastructure expansion and the rollout of full-featured new business services.

Dimensions

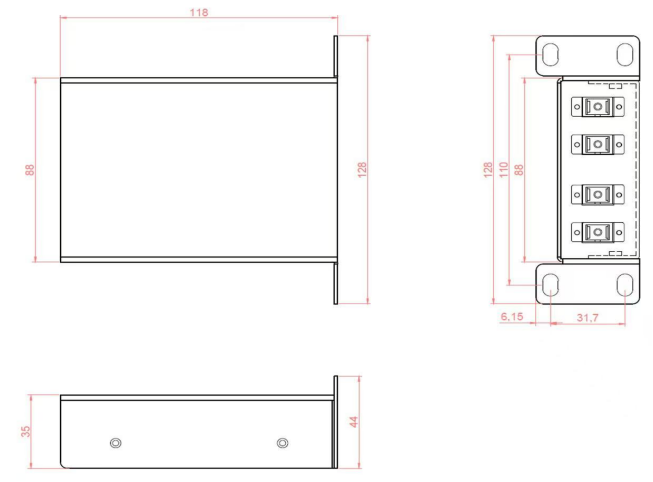

LGX Box FWDM Filter 1310 1550 1650nm Wavelengths Low Insertion Loss for Optical Communication
Technical Specifications
Central Wavelengths 1310, 1550, 1650nm Technology TFF (Thin Film Filter)
Passband 1310±25nm and 1550±25nm Reflection 1650±20nm
Passband Ripple ≤0.30dB IL @ Passband ≤0.60dB
Reflection Band Ripple ≤0.20dB IL @ Reflection ≤0.40dB
Transmission Isolation (Adjacent Channel) ≥30dB Transmission Isolation (Non-Adjacent Channel) ≥50dB
Reflection Isolation ≥15dB Polarization Dependent Loss ≤0.1dB
Polarization Mode Dispersion ≤0.2ps Thermal Stability ≤0.005N
Directivity ≥50dB Return Loss ≥45dB
Optical Power Handling ≤500mW Operating Temperature -40 to 85°C
Fiber Type SMF-28e Storage Temperature -40 to 85°C
Package Dimension LGX Box 128*118*44mm

Application Diagram

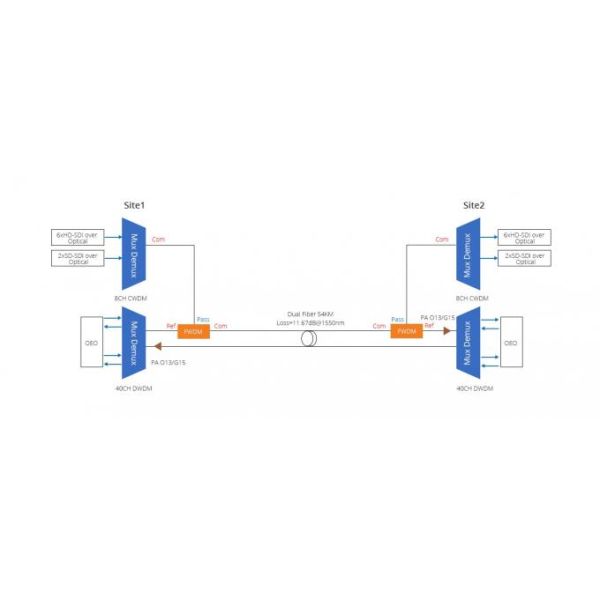

The Filter WDM system employs a Multiplexer at the transmitter to combine multiple wavelengths (each carrying different signals up to 10G bite-rate) and a demultiplexer at the receiver to separate them. With low insertion loss, minimal polarization dependence, and high isolation, this filter is widely used in CATV systems, FTTx and PON systems, fiber communication networks, and test instrumentation.

LGX Box FWDM Filter 1310 1550 1650nm Wavelengths Low Insertion Loss for Optical Communication
Ordering Information
HJY-FW Package Connector Type U/A Wavelength Fiber Type Fiber Length Ports Type
FW S: Steel
B: ABS BOX
Others		 0: No connector
1: LC
2: SC
3: FC
4: Others		 U: UPC
A: APC		 T: Transmission wavelength range (nm)
R: Transmission wavelength range (nm)		 9: 0.9mm
20: 2.0mm
30: 2.0mm
Others		 005: 0.5±0.1m
01: 1.0±0.1m
others		 Com
Reflect
Pass

Note:
1) All specifications are based on devices without connectors and guaranteed over wavelength, polarization and temperature.
2) PMD and chromatic dispersion values are guaranteed by design.
3) Specifications are subject to change without notice.

WDM Filter DWDM Filter Fiber Patch
