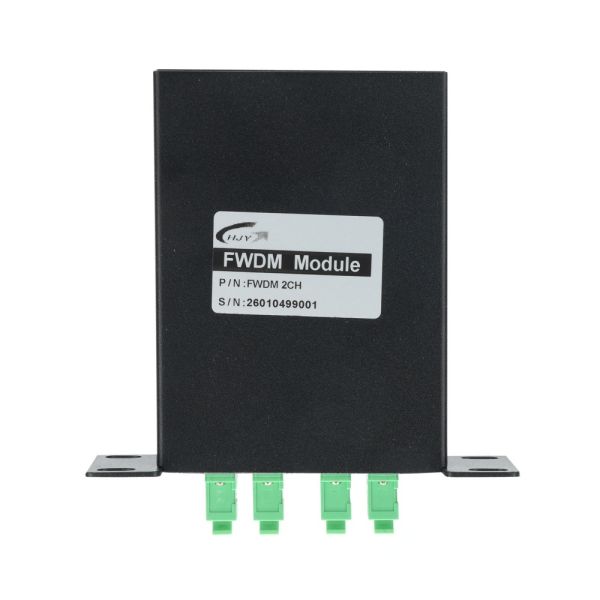

Professional LGX Box FWDM Filter 1310 1550 1650nm Wavelengths for Fiber Optic Networks

Ideal for next-gen optical network expansion and maintenance, our LGX Box FWDM Filter features dual-filter architecture with spliced reference legs, specifically engineered to bypass 1650nm wavelength signals. Built with industry-proven Thin Film Filter (TFF) technology, it excels in demanding deployment environments, ensuring minimal signal loss and long-term durability for critical fiber optic communication infrastructure.

Product Overview

Tailored for next-gen optical communication needs, our FTTX Filter WDM Modules deliver exceptional compatibility with EDFA, Raman amplifiers, WDM networks and fiber optic test instrumentation. By merging or isolating light waves of varying wavelengths over an extended range, the modules maximize single-fiber utilization and unlock expanded capacity for two-way communication. Perfectly suited for network enhancement projects, infrastructure scaling and the launch of innovative commercial applications.

Dimensions
Professional LGX Box FWDM Filter with 1310 1550 1650nm Wavelengths and Thin Film Filter Technology for Fiber Optic Networks
Technical Specifications
Central Wavelengths 1310, 1550, 1650nm Technology TFF (Thin Film Filter)
Passband 1310±25nm and 1550±25nm Reflection 1650±20nm
Passband Ripple ≤0.30dB IL @ Passband ≤0.60dB
Reflection Band Ripple ≤0.20dB IL @ Reflection ≤0.40dB
Transmission Isolation (Adjacent Channel) ≥30dB Transmission Isolation (Non-Adjacent Channel) ≥50dB
Reflection Isolation ≥15dB Polarization Dependent Loss ≤0.1dB
Polarization Mode Dispersion ≤0.2ps Thermal Stability ≤0.005N
Directivity ≥50dB Return Loss ≥45dB
Optical Power Handling ≤500mW Operating Temperature -40 to 85°C
Fiber Type SMF-28e Storage Temperature -40 to 85°C
Package Dimension LGX Box 128*118*44mm

Application Diagram

The Filter WDM system employs a Multiplexer at the transmitter to combine multiple wavelengths (each carrying different signals up to 10G bite-rate) and a demultiplexer at the receiver to separate them. With low insertion loss, minimal polarization dependence, and high isolation, this filter is widely used in CATV systems, FTTx and PON systems, fiber communication networks, and test instrumentation.

Professional LGX Box FWDM Filter with 1310 1550 1650nm Wavelengths and Thin Film Filter Technology for Fiber Optic Networks
Ordering Information
HJY-FW Package Connector Type U/A Wavelength Fiber Type Fiber Length Ports Type
FW S: Steel
B: ABS BOX
Others		 0: No connector
1: LC
2: SC
3: FC
4: Others		 U: UPC
A: APC		 T: Transmission wavelength range (nm)
R: Transmission wavelength range (nm)		 9: 0.9mm
20: 2.0mm
30: 2.0mm
Others		 005: 0.5±0.1m
01: 1.0±0.1m
others		 Com
Reflect
Pass

Note:
1) All specifications are based on devices without connectors and guaranteed over wavelength, polarization and temperature.
2) PMD and chromatic dispersion values are guaranteed by design.
3) Specifications are subject to change without notice.
