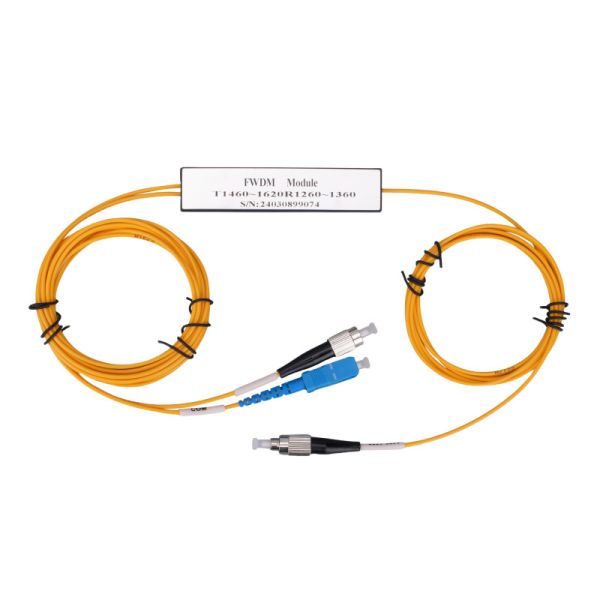

1650nm Reflection FWDM Filter with 1260-1670nm Operating Wavelength and 500mW Power Handling for Efficient Signal Separation
1650nm Reflection FWDM Filter with 1260-1670nm Operating Wavelength and 500mW Power Handling for Efficient Signal Separation
1650nm Reflection FWDM Filter with 1260-1670nm Operating Wavelength and 500mW Power Handling for Efficient Signal Separation
1650nm Reflection FWDM Filter with 1260-1670nm Operating Wavelength and 500mW Power Handling for Efficient Signal Separation
1650nm Reflection FWDM Filter with 1260-1670nm Operating Wavelength and 500mW Power Handling for Efficient Signal Separation
1650nm Reflection FWDM Filter with 1260-1670nm Operating Wavelength and 500mW Power Handling for Efficient Signal Separation
1650nm Reflection FWDM Filter with 1260-1670nm Operating Wavelength and 500mW Power Handling for Efficient Signal Separation
1650nm Reflection FWDM Filter with 1260-1670nm Operating Wavelength and 500mW Power Handling for Efficient Signal Separation
Specifications
Brand Name :
HJY
Model Number :
WDM
Certification :
ISO9001
Place of Origin :
China
MOQ :
10pcs
Price :
12-100
Payment Terms :
L/C,T/T
Supply Ability :
1500 per weeks
Delivery Time :
5-8 work days
Packaging Details :
25*15*2cm
FWDM :
1650nm Reflection WDM Filter
Operating Wavelength :
1260-1670nm
Pass Channel Wavelength Range :
1260-1610nm
Reflection Channel Wavelength Range :
1625-1670nm
Insertion Loss :
0.5-0.75dB
Productname :
FWDM Filter
Operating Current :
<100mA
Power Handling :
≤ 500mW
Pass Channel Isolation :
>30
Type :
Fiber Wavelength Division Multiplexing Filter
Storage Temperature :
-40-85℃
Fiber Length :
1m
Connectortype :
SC/APC or LC/UPC or others
PDL :
<0.1
Return Loss :
>45dB
Package Dimension :
90*20*10mm ABS box
Description
Product Description

Professional Grade WDM Filter FWDM Filter ( Filter Wavelength Division Multiplexer) for Efficient Signal Separation

FTTX Filter WDM module extensively used in EDFA, Raman amplifiers, WDM networks, and fiber optics instrumentation is based on Thin Film Filter (TFF) technology. The device combines or separates light at different wavelengths in a wide wavelength range. It can expand the capacity of a single fiber to achieve bi-directional communication so that widely used in optical network upgrades and expansion, or introduce new comprehensive business, etc.
HJY provides filter-based wavelength division multiplexing (WDM) filter devices that are customized to the particular wavelength bands for your special applications. As you might know, the GEPON system itself works on 1310/1490, so the CATV signal here is delivered over the same fiber using 1550nm, and FWDM is a place where all this get's "mixed".
1650nm Reflection FWDM Filter with 1260-1670nm Operating Wavelength and 500mW Power Handling for Efficient Signal Separation

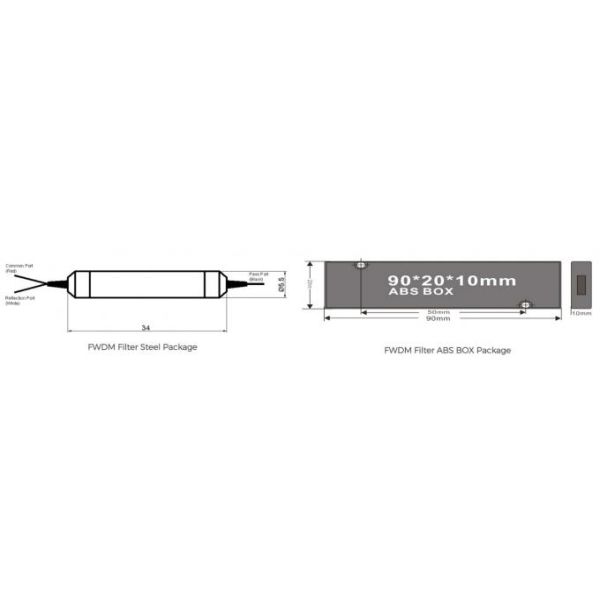

Dimensions (mm)
1650nm Reflection FWDM Filter with 1260-1670nm Operating Wavelength and 500mW Power Handling for Efficient Signal Separation

Product Parameters
Wavelength TX1260-1610nm
RX1625-1670nm		 Technology TFF (Thin Film Filter)
Passband 1260-1670nm Reflection 1625-1670nm
Passband ripple ≤0.30dB IL @ Passband ≤0.60dB
Reflection band ripple ≤0.20dB IL @Reflection ≤0.40dB
Transmission isolation (pass channel) ≥30dB Transmission isolation (reflect channel) ≥15dB
Reflection isolation ≥15dB Polarization dependent loss ≤0.1dB
Polarization mode dispersion ≤0.2ps Thermal Stability ≤0.005N
Directivity ≥50dB Return loss ≥45dB
Optical power handling ≤500mW Temperature Operating -40 to 85°C
Storage -40 to 85°C
Fiber type SMF-28e Package dimension Steel ∮5.5 x L34mm
ABS 90*20*10nm

Application Diagram
The Filter WDM system uses a Multiplexer at the transmitter to combine several wavelengths together, each one carry different signal with bite-rate up to 10G and a demultiplexer at the receiver to split them apart. Due to its low insertion loss, low polarization dependence and high isolation, the filter is widely used in CATV system, FTTx and PON system, Fiber Communication, Test Instrument and etc.
1650nm Reflection FWDM Filter with 1260-1670nm Operating Wavelength and 500mW Power Handling for Efficient Signal Separation
Ordering Information
HJY-FW
Package
Connector Type
U/A
Wavelength
Fiber Type
Fiber Length
Ports Type
FW
S: Steel
B: ABS BOX
Others
0: No connector
1: LC
2: SC
3: FC
4: Others
U: UPC
A: APC
T: Transmission wavelength range (nm)
R: Transmission wavelength range (nm)
9: 0.9mm
20:2.0mm
30:2.0mm
Others
005: 0.5+/-0.1m
01: 1.0+/-0.1m
others
Com
Reflect
Pass
Note.
1) All the specifications are based on the devices without connectors, and guaranteed over wavelength, polarization and temperature.
2)PMD and chromatic dispersion values are guaranteed by design.
3) Specifications are subject to change without notice
