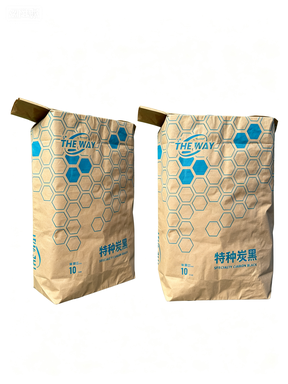

Kraft paper valve bags represent the leading high-end packaging solution for automated packaging of industrial powders and granular materials. Manufactured using multiple layers of high-strength imported or domestic all-wood pulp kraft paper composites combined with specialized one-way valve structures, these bags are available in two main series: standard paper and paper-film composite moisture-proof versions.
The production process utilizes precision composite technology, edge-lock stitching, and integrated bottom-gluing methods, ensuring bags maintain a square, upright shape with stable structure. This design provides perfect compatibility with fully automatic high-speed filling production lines. After filling, bags automatically form into cubes, enabling neat stacking without collapse.
These bags offer multiple advantages including high strength and damage resistance, dustproof and leakproof characteristics, moisture protection, freshness preservation, and environmentally friendly biodegradability. They are widely applied across industries including building materials, chemicals, mining, and agricultural supplies.
Kraft paper valve bags meet packaging standards required for transporting hazardous powdered goods and are suitable for both domestic shipping needs and foreign trade export scenarios.
Main body made from premium wood pulp or high-strength kraft paperboard with uniform basis weight, free of impurities, oil stains, and brittleness. Laminated versions feature high-adhesion, weather-resistant PE waterproof film ensuring firm bonding without peeling.
| Parameter | Specifications |
|---|---|
| Standard Layers | 2, 3, or 4 layers with paper plus PE laminated moisture-proof composite structures |
| Valve Types | Inner valve, outer valve, and widened reinforced valve openings |
| Dimension Tolerances | Length, width, and valve opening sizes within ±5mm error margin |
| Load-Bearing Specifications | 10kg, 20kg, 25kg, 40kg, and 50kg (custom capacities available) |
Bag surfaces must be clean and tidy without damage, holes, or severe creases. Printed texts and images should be sharp and complete with uniform coloring, no ghosting, and no misalignment. Seams, valves, and bottom reinforcements must be flat, firm, and free from glue failure, loose threads, or cracks.
Customize any desired length and width dimensions, choose between 2 to 4 layers, and select various weight-bearing specifications from 10kg to 50kg. Non-standard sizes and special ratios available upon request.
Options include single or double-sided PE lamination, reinforced thickening, widened valve openings, strengthened bottoms, breathable pressure relief, and leak-proof edge locking for humid environments, long-distance transportation, and frequent handling conditions.
High-definition printing available in single color or four colors. Printed content can include company logos, brand information, product specifications, standards compliance, UN markings, batch tracking codes, contact details, and promotional messages.
Various material options including regular kraft paper, reinforced high-strength kraft paper, and waterproof composite paper, allowing selection based on budget and specific usage scenarios.
