Agricultural Tunnel Greenhouse Industrial Hydroponic System Greenhouse For Tomato And Cucumber
Agricultural Tunnel Greenhouse Industrial Hydroponic System Greenhouse For Tomato And Cucumber
Agricultural Tunnel Greenhouse Industrial Hydroponic System Greenhouse For Tomato And Cucumber
Agricultural Tunnel Greenhouse Industrial Hydroponic System Greenhouse For Tomato And Cucumber
Agricultural Tunnel Greenhouse Industrial Hydroponic System Greenhouse For Tomato And Cucumber
Agricultural Tunnel Greenhouse Industrial Hydroponic System Greenhouse For Tomato And Cucumber
Specifications
Brand Name :
Xiamen Wellgain
MOQ :
500sqm
Payment Terms :
50% deposit by T/T, another 50% by T/T before loading
Supply Ability :
100000m2 per month
Name :
Tunnel Greenhouse
Size :
Customized
Material :
Steel Frame Construction and film
Side Hight :
1-2.5m
Top Height :
2.5-4.5m
Frame material :
Hot Dip Galvanized Steel Tube
Features :
Stable Structure Easily Assembled
Application :
Vegetable Fruits Flowers
Place of Origin :
Made In China
Price :
EX W unit price: USD5.00 to USD60.00 each sqm
Packaging Details :
containerized transport
Description

Tunnel Greenhouse Agricultural Greenhouses Industrial Hydroponic For Tomato And Cucumber

The single span/hoop film greenhosue is a small type greenhouse, widely used in many countries.

The greenhouse span width usually 6m/8m/10m; the bay width usually 4m; gutter height usually from 1m-3m. total height from 2.5m-5m.

The steel structure of the single span greenhouse is all assembled and welded by hot-dip galvanized steel pipes or rectangular pipes, and there are manual film rolls and insect-proof nets on both sides of the greenhouse.

The cost of the greenhouse is low, the overall skeleton structure is high in strength, and the land utilization rate is high.

Greenhouse is customized, can follow customers require.

Name:
Tunnel greenhouse for best hydroponic system
Description:
The body framework material:
hot-dip galvanized steel tube
Film:
PE film , PO film,
Insect net:
HDPE, UV block, transparent;
Ventilation System:
Manual or electric window opening on both sides
Parameter:
Spen:
5m/6m/8m/9m/9.6m/10m, Customizable
Section:
1~3m, Customizable
Top Height
3~5m, Customizable

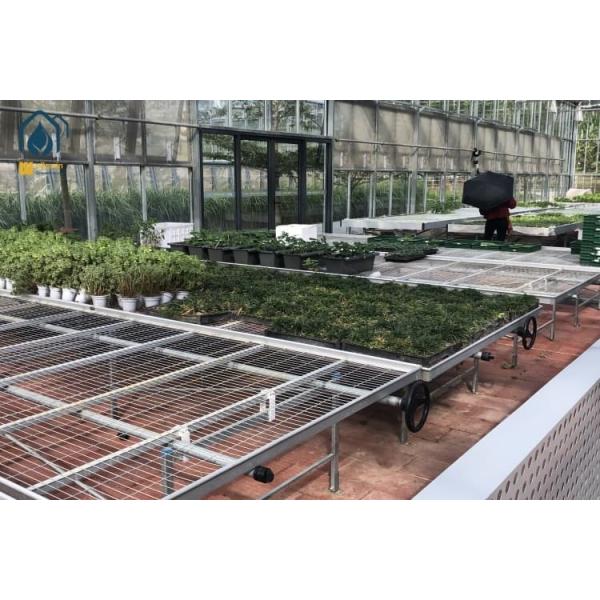

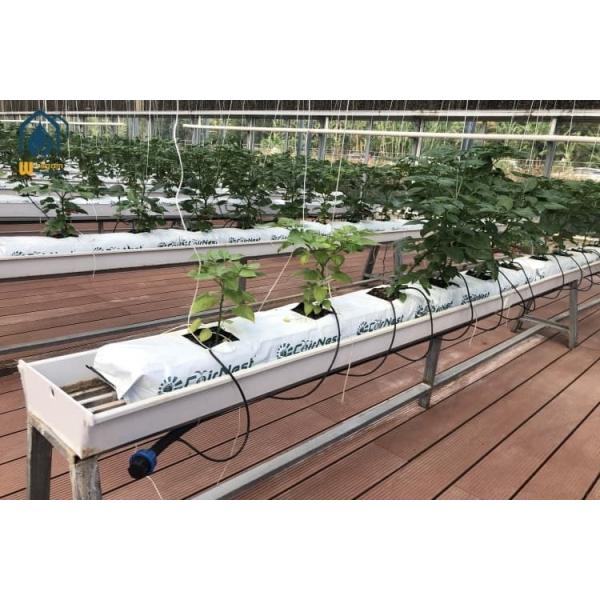

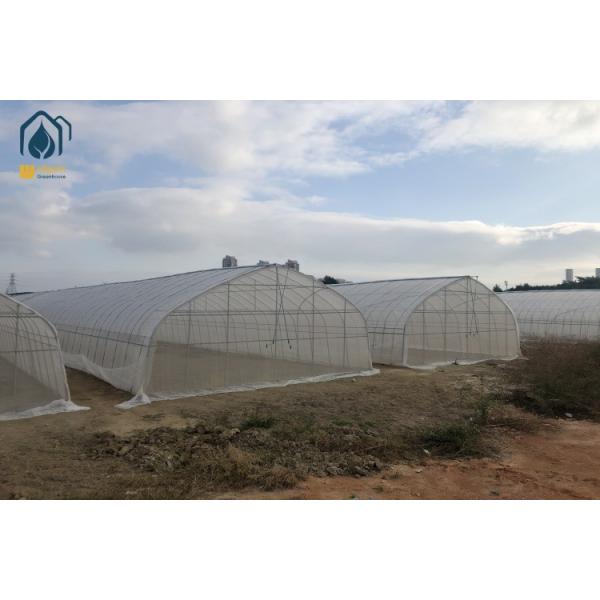

Project Picture

Agricultural Tunnel Greenhouse Industrial Hydroponic System Greenhouse For Tomato And Cucumber

Agricultural Tunnel Greenhouse Industrial Hydroponic System Greenhouse For Tomato And Cucumber

Agricultural Tunnel Greenhouse Industrial Hydroponic System Greenhouse For Tomato And Cucumber

Agricultural Tunnel Greenhouse Industrial Hydroponic System Greenhouse For Tomato And Cucumber

Agricultural Tunnel Greenhouse Industrial Hydroponic System Greenhouse For Tomato And Cucumber

Agricultural Tunnel Greenhouse Industrial Hydroponic System Greenhouse For Tomato And Cucumber

Agricultural Tunnel Greenhouse Industrial Hydroponic System Greenhouse For Tomato And Cucumber

Agricultural Tunnel Greenhouse Industrial Hydroponic System Greenhouse For Tomato And Cucumber

Agricultural Tunnel Greenhouse Industrial Hydroponic System Greenhouse For Tomato And Cucumber

Agricultural Tunnel Greenhouse Industrial Hydroponic System Greenhouse For Tomato And Cucumber

Technical Parameters:

Temperature Control Available
Structure Arched
Size Customizable
Cost Reasonable
Wind Resistance Up To 80km/h
Greenhouse Film 150micron Clear Film
Wind Load 0.4KN/M2
Height 2.8-4.5m
Roof Height 3.5m Or Customized
Covering 150/200micron PE Film
Key Features:

Structure:
1. Made of galvanized steel hoops or PVC pipes bent into arches.
2. Covered with UV-resistant plastic film (usually 6–12 mil thickness).
3. No heating/cooling systems (passive design), though vents or roll-up sides can be added.

Uses:
1. Extends growing seasons (early spring/late fall).
2. Ideal for vegetables (tomatoes, leafy greens), berries, flowers, and nursery seedlings.
3. Protects against frost, wind, heavy rain, and pests.

Advantages:
1. Low cost (10x cheaper than glass greenhouses).
2. Easy assembly (no foundation required).
3. Portable (can be relocated if needed).
