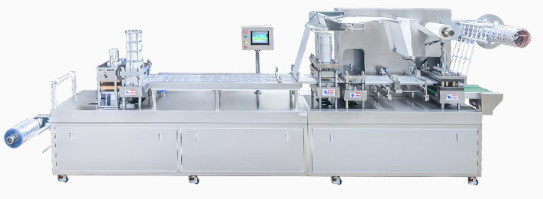

Machine introduction

This machine is specially designed for colorful printed plastic sheet position forming (Double PH sensor for tracking), filling, sealing and cutting in half egg or other shapes. It is widely used for packing chocolate paste, ketchup, butter, candy, biscuit, spicy snack foods, toys and etc. The product packager (such as kinder joy egg,3D cartoon characters, surprise cartoon cars) looks novel and beautiful, excellent 3D appearance, high class. It is one of best packaging machines for high class confectionery, daily use chemical, toys manufacturers.

Technical parameters1

Punching frequency: 20-30 times/minute

Maximum forming area and depth: length 170 * width 320 * depth 26mm

Blister material: PVC or PET material

material thickness: 25-65 mess

Roll diameter: blister diameter 32cm, film diameter 35cm

Standard travel range: 40mm-140mm

Total power supply: 380V/50Hz, 8.2KW

Compressed air pressure: 0.6-0.8MPa

Compressed air consumption:>0.3m3/min

Cooling method: refrigeration cycle or water cooling

Noise index:<65dB

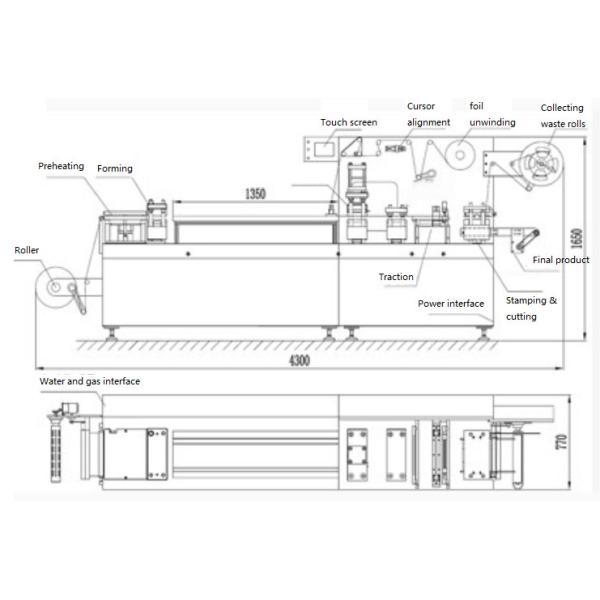

External dimensions: width 4300xdepth 720xheight 1750mm

Weight: 1400kg

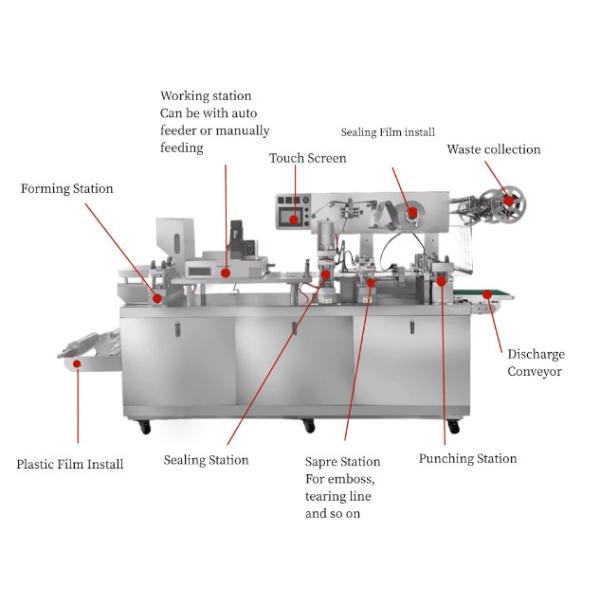

Production process: forming, cutting, heat sealing, punching, and finished product conveying

Product features: secondary molding, cursor error compensation, servo traction

Technical parameters2

Machine model: CH-320 type (extended)

Nature of the machine: Customized production according to the product

Construction period: 25 working days

Loading method: manual feeding

PET thickness: 35-70 fibers

Cursor compensation: With cursor tolerance compensation function, it reduces the scrap rate

Servo traction: Panasonic motor

PLC programming: Siemens

Lead screw: Japanese lead screw

Encoder: Panasonic Encoder

Touch screen: Siemens

Capacity requirement: Cut 26 times per minute

Forming method: upper blowing and lower suction material

Fixed method: Inflation wheel (2 pieces)

All machines could be manufactured according to personalized customer requirements
