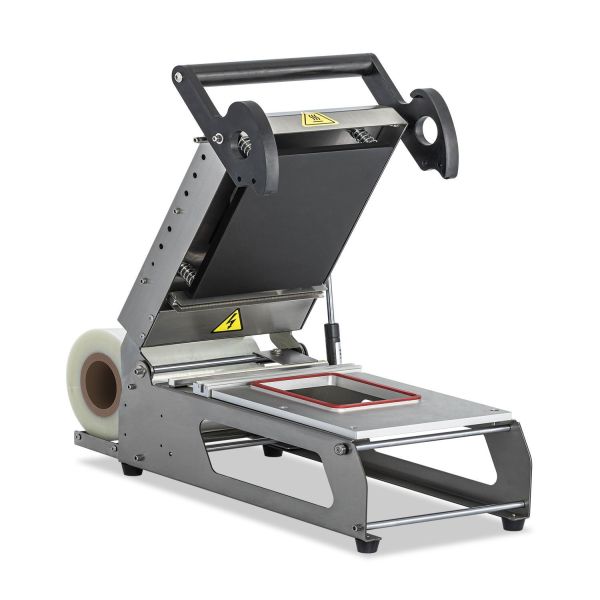

Customizable Manual Edge Cutting Sealer Machine FR230A with Adjustable Temperature Control and Ergonomic Handle for Food Trays
Customizable Manual Edge Cutting Sealer Machine FR230A with Adjustable Temperature Control and Ergonomic Handle for Food Trays
Customizable Manual Edge Cutting Sealer Machine FR230A with Adjustable Temperature Control and Ergonomic Handle for Food Trays
Customizable Manual Edge Cutting Sealer Machine FR230A with Adjustable Temperature Control and Ergonomic Handle for Food Trays
Customizable Manual Edge Cutting Sealer Machine FR230A with Adjustable Temperature Control and Ergonomic Handle for Food Trays
Customizable Manual Edge Cutting Sealer Machine FR230A with Adjustable Temperature Control and Ergonomic Handle for Food Trays
Customizable Manual Edge Cutting Sealer Machine FR230A with Adjustable Temperature Control and Ergonomic Handle for Food Trays
Customizable Manual Edge Cutting Sealer Machine FR230A with Adjustable Temperature Control and Ergonomic Handle for Food Trays
Customizable Manual Edge Cutting Sealer Machine FR230A with Adjustable Temperature Control and Ergonomic Handle for Food Trays
Customizable Manual Edge Cutting Sealer Machine FR230A with Adjustable Temperature Control and Ergonomic Handle for Food Trays
Specifications
Brand Name :
CHIC
Model Number :
CH-FR230A
Certification :
CE ,ISO
Place of Origin :
CHINA
MOQ :
5 pcs
Price :
320$
Payment Terms :
L/C,T/T,Western Union
Supply Ability :
10 pieces per month
Delivery Time :
15 working days
Packaging Details :
Packing inside is plastic films and outside is fumigation wooden case.Our wooden case is very strong,it can bear long time shipping on the sea.And machine with preservative film,it can stop the salt sea water enter into the machine and avoid corrosion.
Name :
Stainless Steel Sealer Packing Machine Compact Design Manual Labor-saving food Heat Sealer Machine
Packaing material :
rolling film
Type :
Manual
Warranty of core parts :
1 year
Description
FR230A Manual Edge Cutting Sealer Machine
Customizable manual edge cutting sealer with adjustable temperature control and ergonomic handle, designed specifically for food tray packaging applications.
Customizable Manual Edge Cutting Sealer Machine FR230A with Adjustable Temperature Control and Ergonomic Handle for Food Trays
Customizable Manual Edge Cutting Sealer Machine FR230A with Adjustable Temperature Control and Ergonomic Handle for Food Trays
Product Overview
The FR230A sealing packaging machine is designed for fresh food packaging without gas filling, making it ideal for instant foods and frozen products in retail stores and supermarkets. This desktop unit features compact dimensions and user-friendly operation suitable for all age groups.
Key Features
  • Constructed with stainless steel body and 6061 aluminum mold for safety and hygiene
  • Compact desktop design with minimal space requirements
  • Customizable with dedicated LOGO color film for brand promotion
  • Ergonomic labor-saving handle for comfortable operation
  • Adjustable temperature control for precise sealing
Technical Specifications
Equipment Model FR230A
Style Edge-cut
Maximum Roll Film Width 320 mm
Maximum Roll Film Diameter 180 mm
Packaging Speed 7-8 times/min
Capacity (1 out 1) ≈480 boxes/hour
Power Supply 220V/50Hz
Total Power 0.8 kW
Equipment Weight 13.5 kg
Equipment Dimensions (L*W*H) 710*330*260 mm
Packaging Outer Box Dimensions 710*450*300 mm
Maximum Tray Size (Output 1) 260*170*150 mm
Main Components
Shell Stainless Steel
Mold Section 6061 Aluminum
Hot Plate Teflon
Temperature Controller Omron/Taisong
Power Switch Meiyu
Labor-saving Handle Reinforced Nylon
Solid State Relay Clion
Product Gallery
Customizable Manual Edge Cutting Sealer Machine FR230A with Adjustable Temperature Control and Ergonomic Handle for Food Trays


Customizable Manual Edge Cutting Sealer Machine FR230A with Adjustable Temperature Control and Ergonomic Handle for Food Trays


Customizable Manual Edge Cutting Sealer Machine FR230A with Adjustable Temperature Control and Ergonomic Handle for Food Trays


Certifications & Quality
Customizable Manual Edge Cutting Sealer Machine FR230A with Adjustable Temperature Control and Ergonomic Handle for Food Trays
