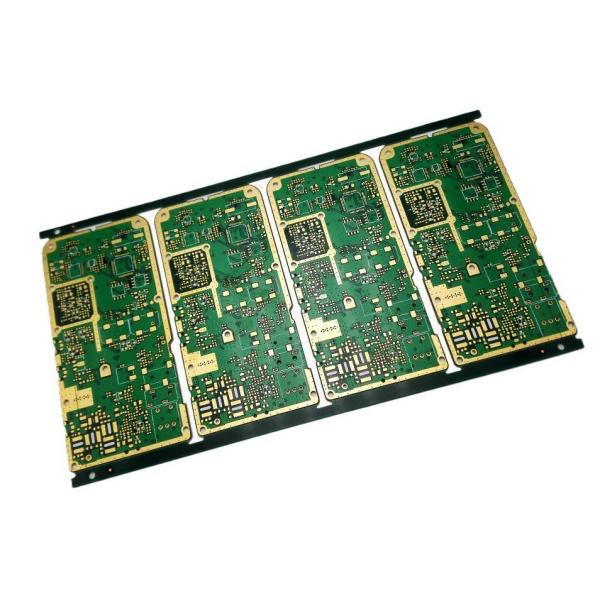

FR4 High Frequency PCB Printed Circuit Board 2-30 Layers Double Sided Customized
FR4 High Frequency PCB Printed Circuit Board 2-30 Layers Double Sided Customized
Specifications
Brand Name :
High Frequency PCB
Place Of Origin :
China
Delivery Time :
14-15 Working Day
Payment Terms :
T/T,Western Union
Supply Ability :
3000㎡
Model Number :
Varies by goods condition
Certification :
ISO 9001, SGS, UL
MOQ :
5 square meters
Price :
NA
Final Foil :
1 Oz
Surface :
HASL-LF
Pcb Type :
Microwave RF Circuit Board
Certifications :
ISO 9001, SGS, UL
Pcb Name :
Double Sided High Frequency PCB
Copper Weight :
Inner 1/2 Oz-4oz;Outer 1oz-5oz
Min Via :
0.1mm Laser Drill, 0.2mm Mechanic Drill
Flammability :
UL 94V-0
Description

Product Description:

A double-sided high-frequency PCB (Printed Circuit Board) is a specialized type of PCB designed for handling high-frequency signals and offering a two-layer configuration for more compact, high-performance designs. A double-sided PCB refers to a board where electronic components are placed on both the top and bottom sides, with electrical connections (traces) routed through the board using vias. High-frequency PCBs are designed to operate effectively at frequencies above 100 MHz, typically in the range of GHz for RF (radio frequency) applications.

Applications:

1. Telecommunications & Networking

  • 5G/6G Infrastructure:
    • Base Stations: Antenna arrays (AAUs), massive MIMO modules (>64 antennas), beamforming circuits. Requires ultra-low-loss laminates (Dk 170°C) and CTE-matched materials.
  • Electronic Warfare (EW):
    • Jammers, SIGINT (Signals Intelligence) systems operating at 2–40 GHz. Critical impedance control (±5%) for pulse integrity.

3. Automotive Electronics

  • ADAS & Autonomous Driving:
    • 77/79 GHz mmWave radar PCBs (e.g., blind-spot detection). Low moisture absorption (<0.1%) for reliability.
  • V2X Communication:
    • 5.9 GHz DSRC (Dedicated Short-Range Communication) antennas. Uses PTFE-ceramic laminates for stable Df.

4. Medical & Scientific Instruments

  • Diagnostic Imaging:
    • MRI RF coils (1.5T/3T), terahertz spectroscopy PCBs. Minimizes signal loss (Df < 0.001) for accuracy.
  • Therapeutic Devices:
    • RF ablation (2.45 GHz), hyperthermia systems. Biocompatible surface finishes (e.g., ENIG) required.

5. High-Performance Computing & IoT

  • Data Centers:
    • 112 Gbps PAM4 SerDes modules, optical transceivers. Controlled impedance (85/90/100 Ω) for signal integrity.
  • Millimeter-Wave IoT:
    • Industrial sensors (60 GHz), short-range high-bandwidth links (e.g., WiGig).

Customization:

Product Customization Services for High Frequency PCB:

Brand Name: High Frequency PCB

Place Of Origin: China

Delivery Time: 15-20 Working Day

Payment Terms: T/T

Supply Ability: 1000㎡

Flammability: UL 94V-0

Pcb Name: Double Sided High Frequency PCB

Layers: 2-30

Certifications: ISO 9001, SGS, UL

Pcb Type: Microwave RF Circuit Board

Product Attributes: High-Frequency Substrate Materials, Signal Integrity (SI), Ground Plane Optimization

FAQ:

Q: What is the brand name of this product?

A: The brand name of this product is High Frequency PCB.

Q: Where is this product manufactured?

A: This product is manufactured in China.

Q: What is the delivery time for this product?

A: The delivery time for this product is 14-25 working days.

Q: What are the payment terms for this product?

A: The payment terms for this product are T/T.

Q: What is the supply ability of this product?

A: The supply ability of this product is 3000㎡.
