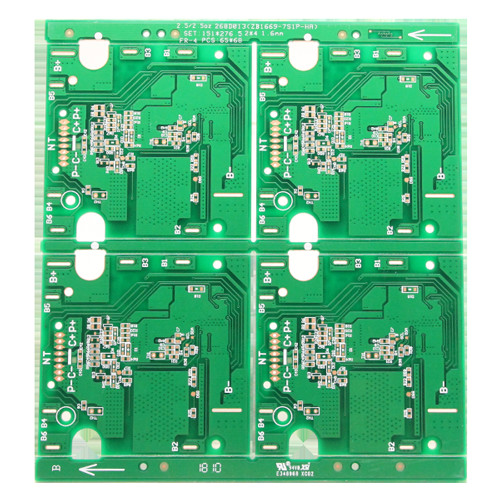

Customized Double Sided PCB HASL Circuit Board For Automotive Industry
Customized Double Sided PCB HASL Circuit Board For Automotive Industry
Specifications
Brand Name :
xingqiang
Model Number :
Varies by goods condition
Certification :
ROHS, CE
Place of Origin :
China
MOQ :
Sample,1 pc(5 square meters)
Price :
NA
Payment Terms :
,T/T,Western Union
Supply Ability :
3000
Delivery Time :
7-10 work days
Customized :
Yes
Min. Line Width/Spacing :
0.075mm
Minimum Hole Size :
0.1mm
Shipping Method :
Express or Seashipment
Type :
TFT
Minimum Line Space :
3mil (0.075mm)
Silkscreen :
White, Black, Yellow
Max Board Size :
528 mm x 600 mm
Treatment :
HASL
Lead Time :
4 Working Days
Categary :
Automotive PCB Assembly
Thermal Conductivity :
0.3-0.5 W/mK
Thickness Of Copper :
0.5-14oz (18-490um)
Description
Advantages and Characteristics of Double-Sided Hot Air Solder Leveling (HASL) Circuit Board​
Product Description​
The double-sided HASL circuit board is a printed circuit board featuring hot air solder leveling on both sides of the substrate. Through this process, molten tin alloy (lead-containing or lead-free) coats the copper surfaces and is leveled by hot air, forming uniform and flat tin layers. With a double-sided wiring design, it meets the signal transmission needs of small to medium complexity circuits and is suitable for welding and assembly of conventional components.​
Core Characteristics​
  • Double-sided HASL treatment: Both sides have tin layers with strong adhesion and bright surfaces, providing a reliable foundation for soldering.​
  • Double-sided wiring structure: Supports bidirectional signal transmission, adapting to circuit layout requirements of standard electronic devices and satisfying small to medium-scale circuit design needs.​
  • Mature process compatibility: The HASL process is stable, integrating well with the substrate, and adapts to conventional production workflows.​
Main Advantages​
  • Dependable soldering performance: The tin layers ensure good solder wetting, reduce cold solder joint risks, and allow multiple rework soldering, facilitating mass assembly and post-maintenance.​
  • Effective protection: The tin layers shield copper surfaces from external environmental factors, enhancing corrosion resistance and extending the board’s service life.​
  • Cost-effectiveness: The mature HASL process offers high production efficiency and controllable costs, making it suitable for cost-sensitive fields like consumer electronics, home appliances, and industrial control.​
  • Decent environmental adaptability: Maintains stable performance in normal temperature, humidity, and general dust environments, ensuring consistent operation over time.
