Custom Multilayer Military PCB with High Tg FR4 Material, Extreme Temperature Resistance, and Impedance Control ±10%
Custom Multilayer Military PCB with High Tg FR4 Material, Extreme Temperature Resistance, and Impedance Control ±10%
Specifications
Brand Name :
Military PCB
Place Of Origin :
China
Model Number :
As Per Customer's Model
Certification :
ISO 9001 / RoHS /UL / IATF 16949 (automotive)
MOQ :
Sample,1 pc(5 square meters)
Price :
Based on Gerber Files
Payment Terms :
T/T,Western Union
Supply Ability :
100000㎡/Month
Delivery Time :
NA
Packaging Details :
Carton Or As Per Customer's Request
PCB Type :
Custom Multilayer PCB
Material :
FR4
Min. Hole Size :
0.1mm
Min. Line Width/Spacing :
3Mil
Copper Weight :
1oz
Thickness :
0.2-5.0mm
Quotation :
Gerber Files
Layer Count :
1-30 Layers
Silkscreen Color :
White, Black, Yellow
Certifications :
ROHS, CE,ISO,UL,IATF
Description
Customizable Multilayer PCB Printed Circuit Board For Heavy Duty Military Industry
HDI Military PCBs with Full Traceability and Robust Plating

The Military PCB product is a top-of-the-line printed circuit board specifically designed for military applications, providing exceptional performance in challenging environments.

One of the key features of the Military PCB is its high-grade military-grade materials, ensuring durability and reliability in demanding situations. The PCB is built to withstand extreme temperatures, making it ideal for use in harsh climates and environments where temperature fluctuations are common. This extreme temperature resistance contributes to the long lifespan of the PCB, ensuring that it can perform consistently over an extended period.

Technical Specifications
Technical Parameter Specification
Product Name Custom Multilayer PCB
Impedance Control ±10%
Solder Mask Color Green, Blue, Black, Red, Yellow, White
Testing Method Flying Probe, Fixture Test
Material High Tg FR4
Thickness 0.2-5.0mm
Hole Size Tolerance +/-0.075
Copper Overall 0.5-5oz
Silkscreen Color White, Black, Yellow
Max. Panel Size 528mm X 600mm
Military Applications
  • Avionics: Flight control systems, navigation equipment, and cockpit displays.
  • Missile and Guidance Systems: Components in guided munitions and targeting systems.
  • Communication Equipment: Secure radios, satellite communication, and data links.
  • Ground and Naval Vehicles: Control systems in tanks, ships, and submarines.
  • Radar and Electronic Warfare: Circuitry for surveillance, threat detection, and countermeasures.

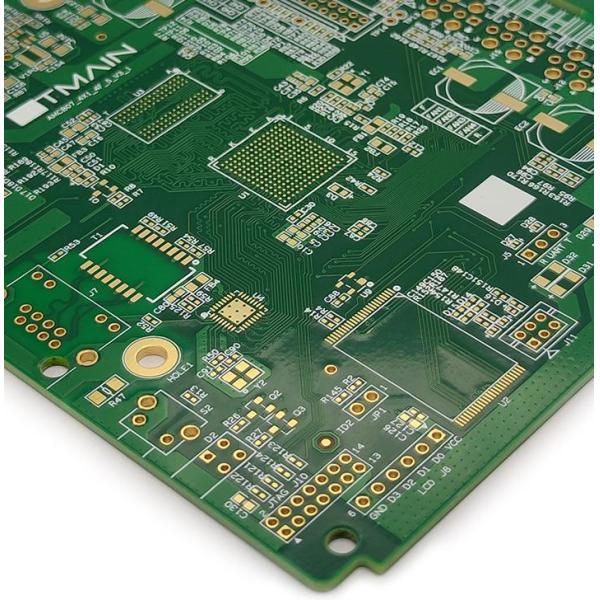

Product Showcase
Custom Multilayer Military PCB with High Tg FR4 Material, Extreme Temperature Resistance, and Impedance Control ±10%
Factory Showcase
Custom Multilayer Military PCB with High Tg FR4 Material, Extreme Temperature Resistance, and Impedance Control ±10%
PCB Quality Testing
Custom Multilayer Military PCB with High Tg FR4 Material, Extreme Temperature Resistance, and Impedance Control ±10%
Certificates and Honors
Custom Multilayer Military PCB with High Tg FR4 Material, Extreme Temperature Resistance, and Impedance Control ±10%
Quality Certifications
Custom Multilayer Military PCB with High Tg FR4 Material, Extreme Temperature Resistance, and Impedance Control ±10%
Industry Recognition
