FPC OEM/ODM Service Custom Flexible PCB Polyimide Base Flexible Area + FR4 Rigid Area
FPC OEM/ODM Service Custom Flexible PCB Polyimide Base Flexible Area + FR4 Rigid Area
Specifications
Brand Name :
Xingqiang
Model Number :
As Per Customer's Model
Place Of Origin :
China
Certification :
ISO 9001 / RoHS /UL / IATF 16949 (automotive)
MOQ :
Sample,1 Pc(5 Square Meters)
Price :
Based on Gerber Files
Payment Terms :
,T/T,Western Union
Supply Ability :
100000㎡/Month
Delivery Time :
NA
PCB Type :
Custom Hard and Soft PCB
Min Line Width :
3mil
Tailored PCBA Services :
Yes
Board Finished Thickness :
0.2-5.0mm
Struction :
1-30 Layer
PCB Testing :
100% E-Test
Material :
High Tg FR-4+PI
Surface Mount Technology :
SMD, BGA, DIP, Etc.
Quote Requirement :
Gerber File And Bom List
Soder Ink Color :
Green/Red/White/Black/Yellow/Blue
Description

Custom FPC Board with Coverlay Flexible Circuit Board Manufacturer:

When it comes to cutting-edge technology and innovative design, our Flexible Rigid Circuit Boards are the perfect solution for your advanced electronic applications. Our Rigid-Flex Circuit Boards offer a unique combination of flexibility and rigidity, making them ideal for a wide range of industries and applications.Our Rigid-Flex Circuit Boards are customized to meet your specific requirements, ensuring that you get a product that perfectly fits your needs. With a customized PCB size, you can be confident that our boards will seamlessly integrate into your electronic devices, providing reliable performance and durability.When it comes to requesting a quote for our Rigid-Flex Circuit Boards, we require the submission of Gerber files and a Bill of Materials (BOM) list. These essential documents provide us with the necessary information to accurately assess your project requirements and provide you with a customized quote that meets your budget and timeline.


Advandtages of Rigid-Flexible PCB :


Comparison Point Rigid-Flex PCB (Our Solution) Traditional Rigid PCB + Wires Why It Matters
Size & Weight Ultra-Compact

30-50% smaller and lighter by eliminating connectors.		 Bulky

Requires extra space for wiring harnesses and connectors.		 Fits into smaller devices (wearables, drones).
Reliability Failure-Proof

No loose wires or solder joints to break.		 Prone to Breakage

Wires and connectors fail due to vibration and fatigue.		 Products last longer; fewer returns.
Assembly Time One-Step Assembly

Board arrives as a single unit; no wire routing needed.		 Time-Consuming

Requires manual soldering of wires and connectors.		 Faster production; lower labor costs.
Signal Quality High Speed

Short, direct paths minimize interference (EMI).		 Noisy

Long wires act as antennas, causing signal loss or noise.		 Better performance for high-speed data.
Design Freedom 3D Capable

Can bend, fold, and twist around corners.		 2D Only

Restricted to flat surfaces; cannot conform to shapes.		 Enables innovative, curved product designs.

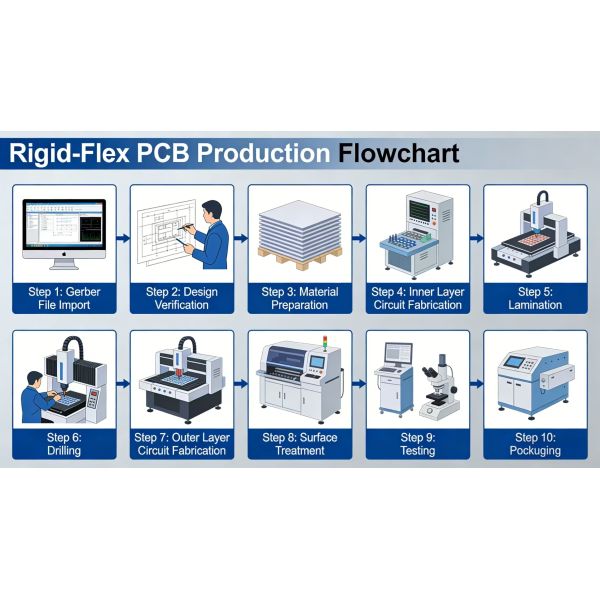

Rigid-Flex PCB Manufacturing Flow Chart :

FPC OEM/ODM Service Custom Flexible PCB Polyimide Base Flexible Area + FR4 Rigid Area
