Xht-310l Wet LED Oxygen Purity Analyzer Simultaneous Monitoring Of Humidity And Oxygen
Xht-310l Wet LED Oxygen Purity Analyzer Simultaneous Monitoring Of Humidity And Oxygen
Xht-310l Wet LED Oxygen Purity Analyzer Simultaneous Monitoring Of Humidity And Oxygen
Xht-310l Wet LED Oxygen Purity Analyzer Simultaneous Monitoring Of Humidity And Oxygen
Xht-310l Wet LED Oxygen Purity Analyzer Simultaneous Monitoring Of Humidity And Oxygen
Xht-310l Wet LED Oxygen Purity Analyzer Simultaneous Monitoring Of Humidity And Oxygen
Specifications
Brand Name :
HiYi
Model Number :
PTM600-S
Certification :
CE, ISO13485, ISO9001
Place of Origin :
Beijing, China
MOQ :
1
Payment Terms :
T/T, L/C, Western Union, MoneyGram
Supply Ability :
1000 set/month
Delivery Time :
3-7 days
Packaging Details :
paper carton
Test item :
Simultaneous detection of 4 gases, supporting up to 6 gases
Warranty :
12 Months
Screen :
3.5-inch LCD
Gas unit :
PPM, mg/m3, Vol%, LEL%, PPHM, ppb, mg/l.
Work modes :
Diffusion and pumping
Weight :
300g
Description

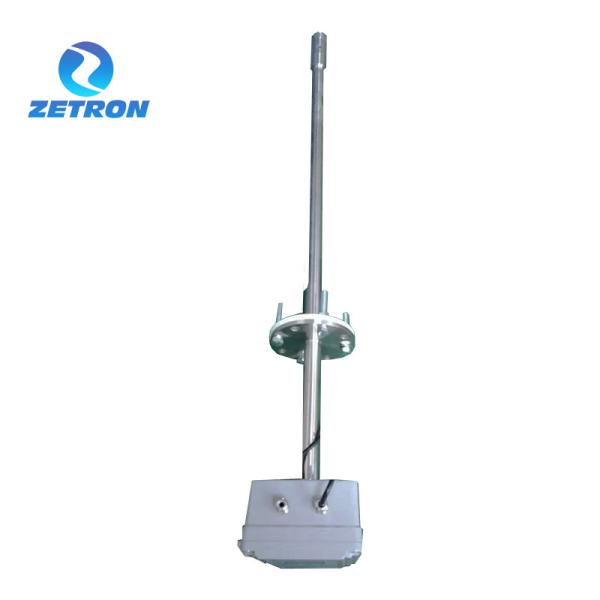

XHT-310L Wet Oxygen Analyzer
OVERVIEW
XHT-310L wet oxygen analyzer can measure humidity and oxygen separately in high temperature environment, the probe has the function of accompanying heat, which can avoid the condensation of water vapor in the gas chamber can realize the accurate measurement of online gas humidity in high temperature environment for a long time, and has strong anti-interference ability.
Xht-310l Wet LED Oxygen Purity Analyzer Simultaneous Monitoring Of Humidity And Oxygen
Xht-310l Wet LED Oxygen Purity Analyzer Simultaneous Monitoring Of Humidity And Oxygen
Xht-310l Wet LED Oxygen Purity Analyzer Simultaneous Monitoring Of Humidity And Oxygen
SPECIFICATION

Test principle
Dry and wet oxygen
Test medium
Simultaneous monitoring of humidity and oxygen
Test range:
Volume percentage: 0-40% Vol
Oxygen
0-25%
Working temperature
Instrument: - 30 ～＋ 75 ℃, probe rod 0 ～ 190 ℃, working environment of sensor: 0-400 ℃
Measurement accuracy
Vol < ± 1.5% FS O2 < ± 2% FS
Repeatability
< ± 1.5% VO, O2 < 2%
Stability
< 2% vol / year, O2 < 3% / year
Initialization time
120 seconds
Response time:
T90 < 30s
FEATURES
* Integrated design, easy to install, and reduce the influence of external interference on the measured value.
* The humidity and oxygen monitor adopts a dual sensor design, which can effectively guarantee the accuracy and service life of the instrument.
* Adopt LED display, more convenient when operating with a simplified Chinese display
* Can be used continuously in a high-temperature environment with reliable stability
* Two-stage dust filtration design, effective filtration of dust and acidic liquids.
* Infinity 316F probe rod material, strong corrosion resistance.
* Instrument body protection grade IP65.
* Simple operation, long service life, and easy maintenance.
* Provide two kinds of display results: volume percentage and oxygen.
APPLICATION SCENES
The detector is widely used in petroleum, chemical industry, environmental protection, metallurgy, refining, biochemical medicine, agriculture, fire control, archaeology, and other industries and places that need safety detection of toxic and harmful, explosion prevention.
The detector can effectively predict the concentration of dangerous gas alarms, to ensure that the safety of staff life is not threatened, and production equipment is not lost.
Xht-310l Wet LED Oxygen Purity Analyzer Simultaneous Monitoring Of Humidity And Oxygen
