Specifications
Measure range :
0-100%VOL
Detection principle :
Thermal Conductive
Sampling Method :
Suck with pump
Weight :
300g
Protection Grade :
IP66, Can effectively waterproof and dustproof
Alarm Mode :
Sound, LED and vibration
Standby time :
100 hours
Humidity :
0 - 90%RH
Gas Detected :
Helium
Resolution :
0.1%VOL
Temperature :
-20℃ to 50℃
Brand Name :
SAFEGAS
Model Number :
SKY2000
Certification :
ATEX/EMC
Place of Origin :
China
MOQ :
1
Price :
Negotiable
Payment Terms :
T/T,Western Union
Supply Ability :
300 pieces per month
Delivery Time :
3 work days
Packaging Details :
Carton(34*24*14cm)
Description
IP66 Helium Detector - 0-100%VOL Concentration Purity with Imported Sensor
Product Specifications
Gas Detected Helium (He)
Measure Range 0-100%VOL
Detection Principle Thermal Conductive
Instrument Lifespan Sensors: 2-3 years, Instruments: ≥5 years
Linearity Error ±2%FS
Response Time T90<30S (25℃)
Sampling Method Pumping Suction
Resolution 0.1%VOL
Signal Output High-speed USB data transmission (optional)
Operating Language Chinese/English
Temperature Range -20℃~50℃
Explosion-Proof Ex ia II CT4
Alarm Mode Sound, Light, Vibration
Dimensions 205×75×32mm
Recovery Time ≤10S
Display LCD Dot Matrix
Gas Unit Switchable Units
Humidity 0-90%RH
Protection Level IP66
Operating Time 100h (pump off)
Weight 300g
Product Overview

SKY2000 series gas detector is a high-precision, quick-response gas measuring equipment. The built-in sampling pump features fast sampling speed and large flow rate, ensuring optimal detector response time. With its unique design, compact size, and convenient transportation capabilities, this detector is built for various industrial applications.

The high-strength special engineering plastic shell makes it suitable for diverse occasions and environments. We are committed to providing the most reliable, accurate, and safe gas detection solutions for your industrial needs.

SKY2000 detector features a built-in sampling pump with 10-level adjustable suction, high flow rate up to 800ml/min, ensuring rapid response times for critical gas detection applications.

Product Advantages
  • Original imported first-class brand sensor for superior accuracy
  • Optional high-speed USB data transmission for data downloading and printing
  • LCD dot matrix display showing gas type, unit, concentration, and local time
  • Support for Chinese and English operation with easy language switching
  • Built-in micro sampling pump with 10-grade suction adjustment; diffusion sampling when pump is off
  • Explosion-proof certification (Ex ia IIC T4 Ga) with IP66 protection level - waterproof, dustproof, and explosion-proof
  • One-key factory settings restoration and zero calibration
  • Large capacity lithium polymer rechargeable battery
  • High-strength engineering plastic shell with non-slip design and elegant aluminum alloy suitcase

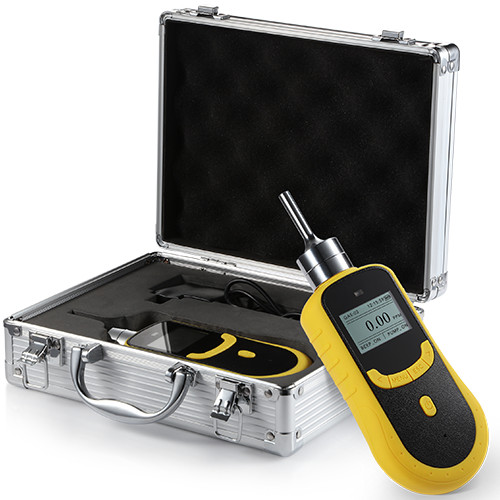

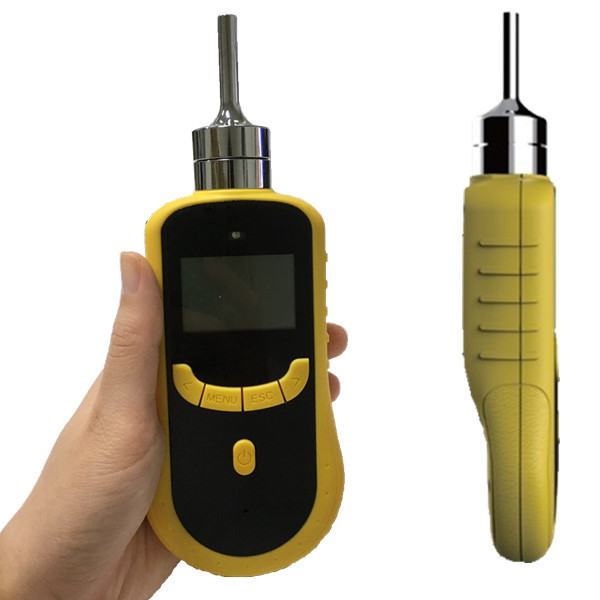

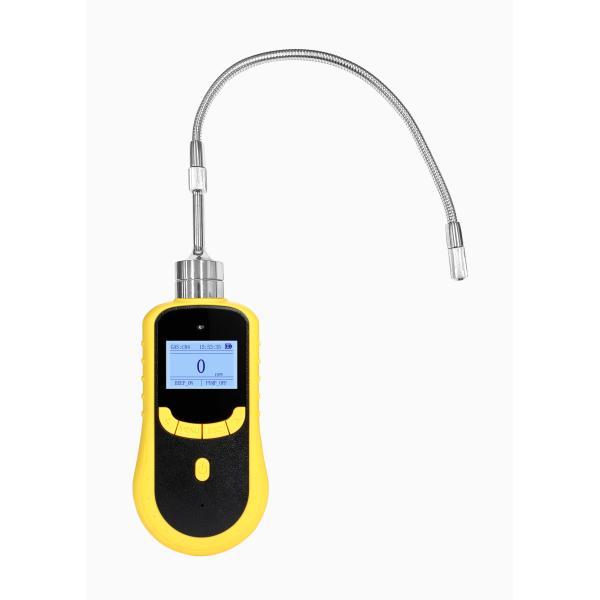

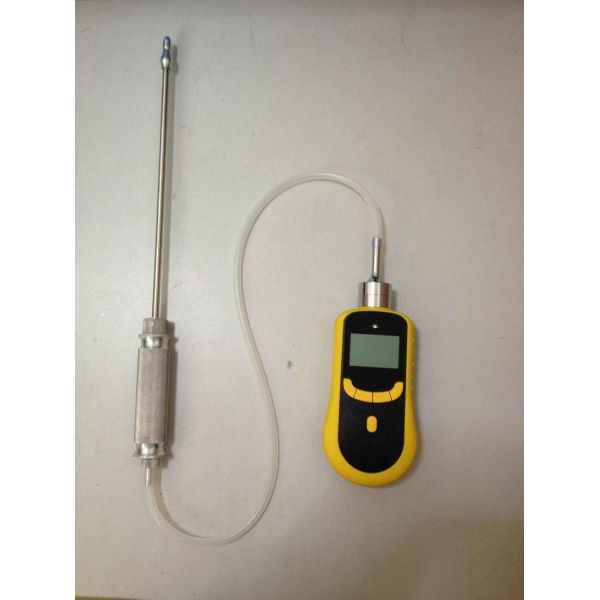

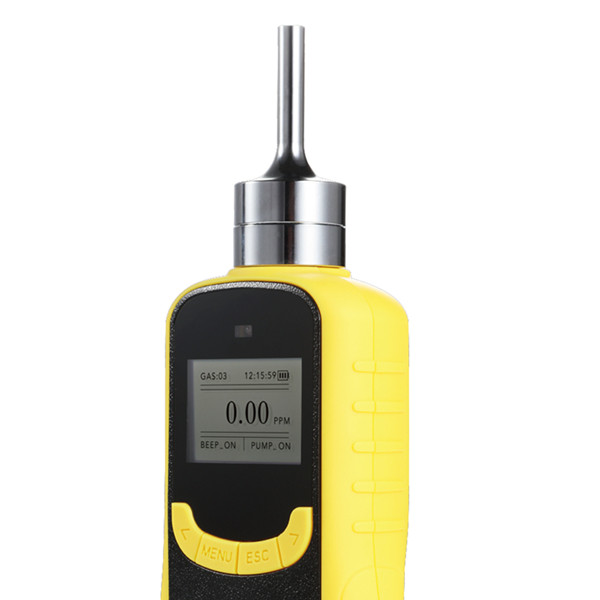

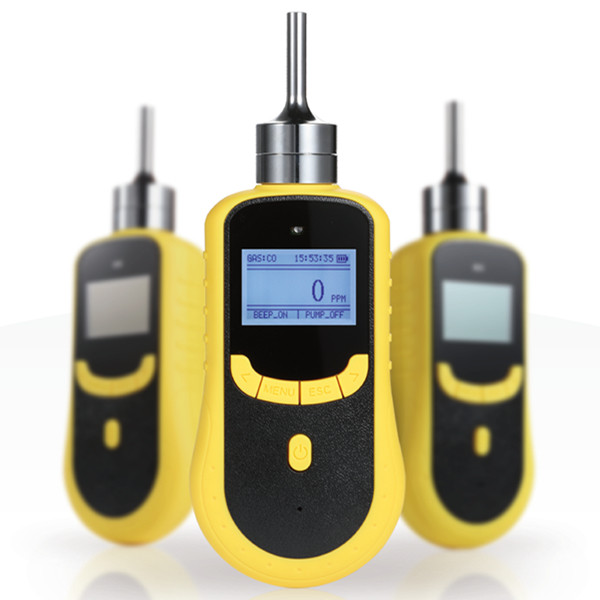

Product Images
IP66 Helium Detector with 0-100%VOL Range and Imported Sensor for Accurate Gas Detection IP66 Helium Detector with 0-100%VOL Range and Imported Sensor for Accurate Gas Detection IP66 Helium Detector with 0-100%VOL Range and Imported Sensor for Accurate Gas Detection IP66 Helium Detector with 0-100%VOL Range and Imported Sensor for Accurate Gas Detection
Standard Configuration
  • SKY2000 Detector - 1 set
  • Aluminum Suitcase - 1 set
  • Charging Adapter - 1 set
  • User Manual - 1 set
  • Qualification Certificate - 1 set
IP66 Helium Detector with 0-100%VOL Range and Imported Sensor for Accurate Gas Detection
Company Profile

Established in 2010, Shenzhen Yuan Te Technology Co., Limited (Safegas) specializes in the design, production, and sales of gas detection equipment and systems. With 16 years of industry experience, we provide comprehensive solutions for various sectors including Oil, Chemical, Medicine, Energy, Environmental Protection, Electronics, Municipal Engineering, Agriculture, Forestry, and Household Appliances.

As a professional gas detector manufacturer, we control the entire process from design and R&D to production and sales, ensuring consistent product quality. Our achievements include:

  • 100+ independent intellectual property patents in design and development
  • Professional sales team providing 7×24h customer service
  • R&D department with 25 years of gas detection industry experience
  • ISO9001 and ISO14001 quality and environmental management certifications
  • IECEx and ATEX explosion-proof certifications - first and only Chinese manufacturer with these credentials
  • Imported brand sensors and ICs for enhanced accuracy and product lifespan
  • Fast delivery: 3 days for orders under 10 units, half a month for orders over 100 units
