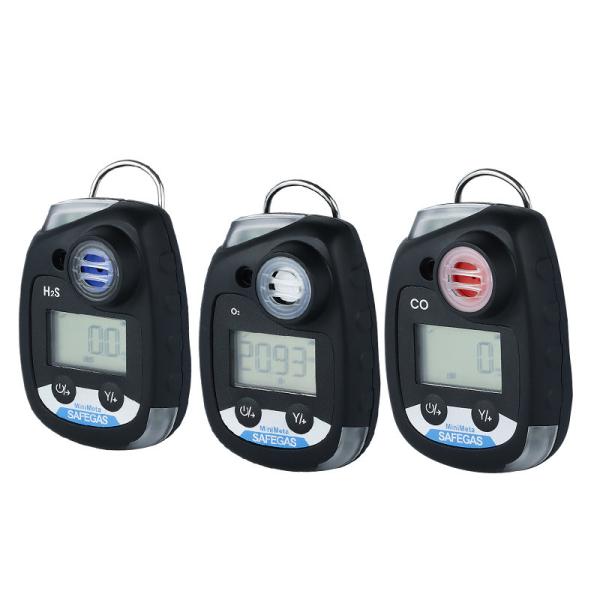

Single Gas Detector with 2 Year Standby Time, STEL Alarm, and IP66/68 Protection
Single Gas Detector with 2 Year Standby Time, STEL Alarm, and IP66/68 Protection
Single Gas Detector with 2 Year Standby Time, STEL Alarm, and IP66/68 Protection
Single Gas Detector with 2 Year Standby Time, STEL Alarm, and IP66/68 Protection
Single Gas Detector with 2 Year Standby Time, STEL Alarm, and IP66/68 Protection
Single Gas Detector with 2 Year Standby Time, STEL Alarm, and IP66/68 Protection
Single Gas Detector with 2 Year Standby Time, STEL Alarm, and IP66/68 Protection
Single Gas Detector with 2 Year Standby Time, STEL Alarm, and IP66/68 Protection
Single Gas Detector with 2 Year Standby Time, STEL Alarm, and IP66/68 Protection
Single Gas Detector with 2 Year Standby Time, STEL Alarm, and IP66/68 Protection
Single Gas Detector with 2 Year Standby Time, STEL Alarm, and IP66/68 Protection
Single Gas Detector with 2 Year Standby Time, STEL Alarm, and IP66/68 Protection
Single Gas Detector with 2 Year Standby Time, STEL Alarm, and IP66/68 Protection
Single Gas Detector with 2 Year Standby Time, STEL Alarm, and IP66/68 Protection
Specifications
Brand Name :
SAFEGAS
Model Number :
Minimeta
Certification :
ATEX/EMC/IECEX
Place of Origin :
China
MOQ :
1
Price :
Negotiable
Payment Terms :
T/T,Western Union
Supply Ability :
3000 pieces per month
Delivery Time :
3 work days
Packaging Details :
Carton
Gas Detected :
Can be customized
Detection Principle :
Diffusion
Measure range :
Can be customized
Resolution :
0.1ppm
Accuracy :
≤±2-5%FS
Response time(T90) :
15 to 30s
Principle :
Electrochemical
Display :
Gas name, battery power, concentration unit, measured value
Alarm mode :
Sound, light, vibration alarm
Alarm type :
Low alarm, high alarm, STEL, TWA, low battery optional calibration due and bump test due
Power supply mode: :
3.6V dry battery (non-rechargeable and replaceable)
Explosion-proof certification :
IECEx, ATEX
Protection class :
IP66/68
Working temperature :
-20℃ to 55℃
Working humidity (non-condensing) :
0-95%RH
Working air pressure :
86 to 106kpa
Dimensions :
90mm*60mm*33mm (length*width*thickness)
Weight (With Clip) :
125g
Description
Single Gas Detector with 2 Year Standby Time
The MiniMeta maintenance-free single gas detector provides reliable, user-friendly detection solutions for worker safety and operational compliance. With up to 2 years of continuous protection, it requires no calibration, sensor replacement, or battery charging.
Key Features
  • Ultra-high 95dB audible alarm with bright red LED indicators and vibration alerts
  • Triple alarm system: sound, light, and vibration
  • Automatic recording of 10 most recent alarm events
  • Splashproof, dustproof, explosion-proof, and shockproof design
  • Intrinsically safe circuit with IP66/IP68 protection rating
  • Compact size (90×60×33mm) and lightweight (125g) with back clip
  • IECEx, ATEX, and China explosion-proof certifications for Zone 0 and Zone 1 use
Product Images
Single Gas Detector with 2 Year Standby Time, STEL Alarm, and IP66/68 Protection Single Gas Detector with 2 Year Standby Time, STEL Alarm, and IP66/68 Protection Single Gas Detector with 2 Year Standby Time, STEL Alarm, and IP66/68 Protection Single Gas Detector with 2 Year Standby Time, STEL Alarm, and IP66/68 Protection Single Gas Detector with 2 Year Standby Time, STEL Alarm, and IP66/68 Protection Single Gas Detector with 2 Year Standby Time, STEL Alarm, and IP66/68 Protection Single Gas Detector with 2 Year Standby Time, STEL Alarm, and IP66/68 Protection Single Gas Detector with 2 Year Standby Time, STEL Alarm, and IP66/68 Protection Single Gas Detector with 2 Year Standby Time, STEL Alarm, and IP66/68 Protection
Technical Specifications
Detect Gas Customizable
Sensor Type Electrochemical Principle
Sampling Method Diffusion
Measure Range Customizable
Resolution 0.1ppm
Precision ≤±3% F.S.
Response Time ≤30s (T90)
Display LCD Display showing gas name, concentration unit, measured value, and battery level
Alarm System Sound, light, vibration with configurable low/high alarm values, STEL, TWA
Operating Conditions -20°C to 50°C, 0-95% RH, 86-106kPa
Product Advantages
  • IP68 water- and dust-resistant case
  • Low power consumption with 2 years standby time
  • Optional docking station for bump testing and calibration
  • Event and data logging capabilities (optional)
  • Self-test function for enhanced safety
  • Compact design with back clip for easy carrying
  • 95dB buzzer, dual LED lights, and vibration alarms
  • Real-time value, TWA, STEL, MAX, MIN display
Standard Package
  • Portable gas detector: 1 piece
  • Calibration cap: 1 piece
  • User manual: 1 piece
  • Certificate of conformity/Warranty card: 1 piece
Why Choose Our Products
  • 25+ years of R&D team experience
  • Company certifications: ISO9001, ISO45001
  • Product certifications: IECEx, ATEX, CE
  • Fast delivery: 5-7 days
  • High capacity: 80,000 units annually
  • Professional 24/7 customer service
Company Profile
Established in 2010, Shenzhen Yuan Te Technology Co., Limited (Safegas) specializes in designing, producing, and selling gas detection equipment and systems. With 16 years of industry experience, we provide comprehensive solutions for various sectors including Oil, Chemical, Pharmaceutical, Energy, Environmental Protection, Electronics, Municipal Engineering, Agriculture, and Household Appliances.
Product Line
Our product range includes portable detectors (MiniMeta, Micmeta, YT-1200H-S, SKY3000, SKY2000, SKY8000), fixed detectors (YT-95H, YT-98H, YT-96H, SG100, SG200), and controller panels (YT-1100H, YT-1600H).
Single Gas Detector with 2 Year Standby Time, STEL Alarm, and IP66/68 Protection
Certifications
Our products hold international certifications including IECEx, ATEX, CE, TEST Report, ISO 9001, and ISO 45001. The IECEx and ATEX explosion-proof certifications ensure product quality comparable to international brands with competitive pricing.
Single Gas Detector with 2 Year Standby Time, STEL Alarm, and IP66/68 Protection
Our Clients
We have successfully partnered with major companies including Huawei, Coca-Cola, Samsung, and Nestlé.
Single Gas Detector with 2 Year Standby Time, STEL Alarm, and IP66/68 Protection
Frequently Asked Questions
Are you a manufacturer or trading company?
We are a professional manufacturer specializing in gas detectors for more than 10 years.
What is the minimum order quantity?
Usually 1 piece.
How about the quality of your products?
Our products use imported sensors and components and are fully certified for quality assurance.
How long is the warranty period?
The warranty period is 1 year from factory date, with lifetime maintenance support.
Single Gas Detector with 2 Year Standby Time, STEL Alarm, and IP66/68 Protection Single Gas Detector with 2 Year Standby Time, STEL Alarm, and IP66/68 Protection
