IECEx ATEX Certified Formaldehyde Gas Detector with Pump Suction Detection and 0-50PPM Range
IECEx ATEX Certified Formaldehyde Gas Detector with Pump Suction Detection and 0-50PPM Range
IECEx ATEX Certified Formaldehyde Gas Detector with Pump Suction Detection and 0-50PPM Range
IECEx ATEX Certified Formaldehyde Gas Detector with Pump Suction Detection and 0-50PPM Range
IECEx ATEX Certified Formaldehyde Gas Detector with Pump Suction Detection and 0-50PPM Range
IECEx ATEX Certified Formaldehyde Gas Detector with Pump Suction Detection and 0-50PPM Range
IECEx ATEX Certified Formaldehyde Gas Detector with Pump Suction Detection and 0-50PPM Range
IECEx ATEX Certified Formaldehyde Gas Detector with Pump Suction Detection and 0-50PPM Range
IECEx ATEX Certified Formaldehyde Gas Detector with Pump Suction Detection and 0-50PPM Range
IECEx ATEX Certified Formaldehyde Gas Detector with Pump Suction Detection and 0-50PPM Range
IECEx ATEX Certified Formaldehyde Gas Detector with Pump Suction Detection and 0-50PPM Range
IECEx ATEX Certified Formaldehyde Gas Detector with Pump Suction Detection and 0-50PPM Range
Specifications
Brand Name :
Safegas
Model Number :
SKY3000
Certification :
CE,ATEX,IECEx,ISO
Place of Origin :
China
MOQ :
1
Price :
710USD
Payment Terms :
T/T
Supply Ability :
1000 PCS/Day
Delivery Time :
3-10 Days
Packaging Details :
Carton
Product name :
Gas detector
Gas detected :
CH2O
Range :
0-50PPM
Resolusion :
0.01PPM
Sampling Method :
Pump Suction
Data Record :
Can Store 100000 Sets Data
Alarm Mode :
Buzzer , LED And Vibration
Power :
With 3.7V Rechargeable Lithium Battery
Working Hour :
More Than 15 Hours(with Pump Running)
Single Gross Weight :
1.64kg
Size :
34cm*24cm*14cm
Description
Formaldehyde Gas Detector CH2O Portable Multi Gas Analyzer with IECEx ATEX Certification
Product Overview

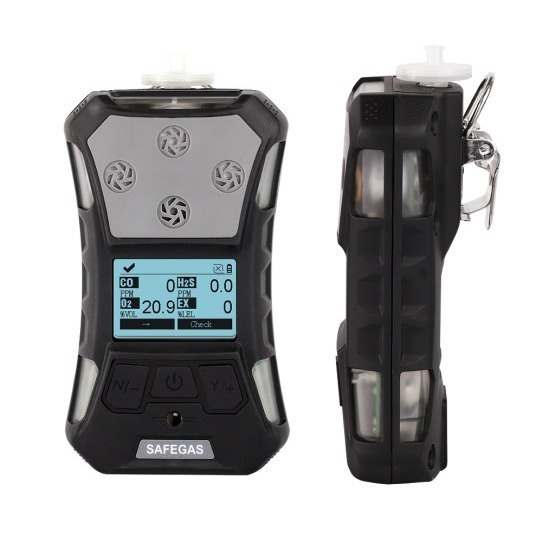

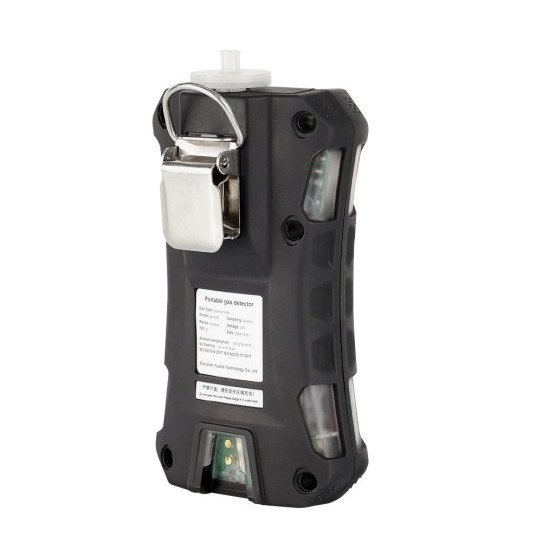

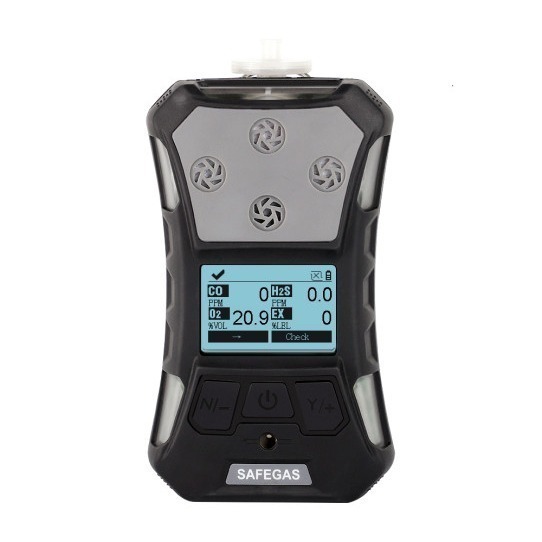

SKY3000 Portable CH2O Gas Detector - High-precision portable formaldehyde gas detector with pump-suction detection principle, designed for industrial safety applications.

SKY3000 is an IECEx/ATEX/EMC certified portable multi-gas detector. It features suction type detection with built-in pump to detect up to 6 gas types in one device. The standard configuration detects 4 gases (CO, H2S, O2, LEL), with thousands of gas types available for selection to support wide-ranging applications. Includes wireless communication for remote access to real-time data and alarm status. Standard datalog function exports data to PC without requiring additional software.

Key Features
  • IP67 water & dust resistant and 3 meter drop resistant case, rugged and durable design
  • Standard man down alarm function
  • Real time value, TWA, STEL, MAX, MIN multiple numerical display
  • One press to restore factory settings
  • Large graphical display can rotate 180°
  • Standard water trap filter to protect the sensor

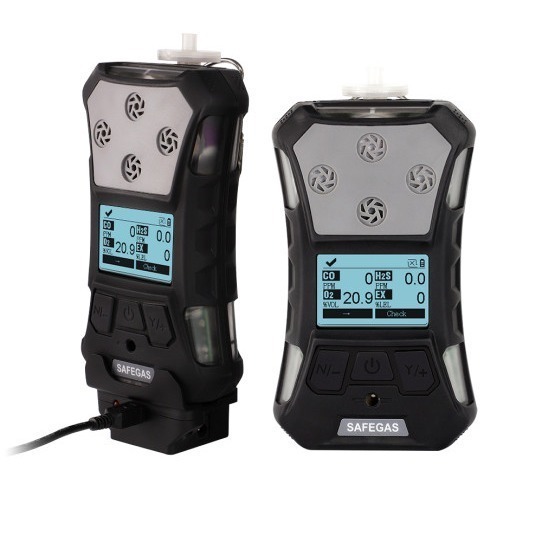

  • With docking station to perform daily bump test and calibration (Optional)
  • Wireless data transmission including Lora, Bluetooth (Optional)
  • Support backlight function with manually adjustable backlight time
  • Low power consumption, long standby time
  • Support firmware upgrade remotely
Technical Specifications
Gas Detected CH2O
Detection Principle Electrochemical
Measure Range 0-50PPM
Resolution 0.01PPM
Response Time ≤30 seconds
Precision ≤ ± 1-5%F.S except for special gases
Language Chinese/English/Polish (More languages can be customized)
Automatically Test and Calibrate Including reset, maximum value (MAX), minimum value (MIN), STEL, TWA value
Unit PPM, mg/m3, %LEL, %VOL
Display LCD (160*96), 180° rotate
Backlight Turned on automatically when alarming, backlight time can be manually set
Data Record 100,000 readings, storage interval adjustable from 5 to 3600 seconds, data can be exported to PC without software
Alarm 95dB@30cm buzzer alarm, flashing red LED alarm and vibration alarm. Alarm status indication on screen, alarm latched; diagnostic alarm and battery under-voltage alarm, pump failure alarm; man down alarm
Battery 3.7V rechargeable lithium battery, battery capacity 2200mA
Working Hours More than 15 hours in continuous pumping mode
Charger Travel charger with DC interface, charging time ≥ 4 hours
Working Temperature -20℃~+50℃
Explosion-proof Grade IECEx: Ex ia IIC T4 Ga
Humidity 10~90%RH (no condensation)
Certification (EU regulations) 2004/34/JE (ATEX)
Protection Grade IP67
Working Pressure 86~106Kpa
Size 157*84.5*59.5mm (including back clip/water trap filter) (length * width * height)
Weight 365g (including battery, belt clip and filter)
Product Images
IECEx ATEX Certified Formaldehyde Gas Detector with Pump Suction Detection and 0-50PPM Range IECEx ATEX Certified Formaldehyde Gas Detector with Pump Suction Detection and 0-50PPM Range IECEx ATEX Certified Formaldehyde Gas Detector with Pump Suction Detection and 0-50PPM Range IECEx ATEX Certified Formaldehyde Gas Detector with Pump Suction Detection and 0-50PPM Range IECEx ATEX Certified Formaldehyde Gas Detector with Pump Suction Detection and 0-50PPM Range IECEx ATEX Certified Formaldehyde Gas Detector with Pump Suction Detection and 0-50PPM Range
Company Advantages
  • R&D team experience: over 25 years
  • Company certifications: ISO9001, ISO45001
  • Product certifications: IECEx, ATEX, CE
  • Delivery time: 5-7 days
  • Annual capacity: 80,000 units
  • Professional 7*24 hours customer service
Manufacturer Profile

Established in 2010, Shenzhen Yuan Te Technology Co., Limited (Safegas) specializes in the design, production, and sales of gas detection equipment and systems. With 16 years of industry experience, we provide comprehensive solutions for various sectors including Oil, Chemical, Medicine, Energy, Environmental Protection, Electronics, Municipal Engineering, Agriculture, and Household Appliances.

Product Line

Our product portfolio includes portable detectors, fixed systems, controller panels and particle counters:

Portable: Minimeta, Micmeta, YT-1200H-S, SKY3000, SKY2000, SKY8000, SKY1000, MAXMETA
Fixed: YT-95H, YT-98H, YT-96H, SG100, SG200
Controllers: YT-1100H, YT-1600H, YT-1800H
Particle Counter: AQD5000, SKY6000-PM, SKY2000-PM
Additional Product Images
IECEx ATEX Certified Formaldehyde Gas Detector with Pump Suction Detection and 0-50PPM Range IECEx ATEX Certified Formaldehyde Gas Detector with Pump Suction Detection and 0-50PPM Range IECEx ATEX Certified Formaldehyde Gas Detector with Pump Suction Detection and 0-50PPM Range
