Fixed Gas Detector Pump with 12-24V DC Power for NH3 and CO2 Detection
Fixed Gas Detector Pump with 12-24V DC Power for NH3 and CO2 Detection
Fixed Gas Detector Pump with 12-24V DC Power for NH3 and CO2 Detection
Fixed Gas Detector Pump with 12-24V DC Power for NH3 and CO2 Detection
Fixed Gas Detector Pump with 12-24V DC Power for NH3 and CO2 Detection
Fixed Gas Detector Pump with 12-24V DC Power for NH3 and CO2 Detection
Fixed Gas Detector Pump with 12-24V DC Power for NH3 and CO2 Detection
Fixed Gas Detector Pump with 12-24V DC Power for NH3 and CO2 Detection
Fixed Gas Detector Pump with 12-24V DC Power for NH3 and CO2 Detection
Fixed Gas Detector Pump with 12-24V DC Power for NH3 and CO2 Detection
Fixed Gas Detector Pump with 12-24V DC Power for NH3 and CO2 Detection
Fixed Gas Detector Pump with 12-24V DC Power for NH3 and CO2 Detection
Specifications
Brand Name :
SAFEGAS
Model Number :
YT-98H-A
Certification :
ATEX/IECEX
Place of Origin :
China
MOQ :
1
Price :
Negotiable
Payment Terms :
T/T,Western Union
Supply Ability :
3000 pieces per month
Delivery Time :
3 work days
Packaging Details :
Carton(43*27*15cm)
Gas Detected :
NH3, CO2
Detection Principle :
Electrochemical AND IR
Power :
12-24V DC
Accuracy :
≤±2-5%FS
Response time(T90) :
15 to 30s
Repeatability :
≤±1%
Pump flow :
0.35 to 0.5 L/Min
Temperature :
–20℃ to 55℃
Humidity(no condensation) :
0-95%RH
Alarm(Optional) :
buzzer, alarm status prompt on the display screen, high and low alarm values can be set by customer
Description
Fixed Gas Detector Pump for Detecting NH3 and CO2 Concentration in Refrigeration Chambers
Product Description
The YT-98H/YT-98H-A Fixed Gas Detector is a built-in pump-suction single & multi gas detector with IECEx and ATEX certification. Featuring a non-contact magnetic wand design, it can be safely installed and operated in explosion-proof areas and the Oil & Gas industry. The detector offers a 3-wire 4 to 20-mA output with relays, HART, and Modbus protocols for compatibility with most control systems. Optional wireless functionality allows remote data viewing on laptops, mobile phones, or cloud systems.
The YT-98H can simultaneously detect CO2 and NH3 concentrations and operates in environments from -20°C to 50°C, making it ideal for installation in freezers and cold storage facilities to monitor ammonia leaks.

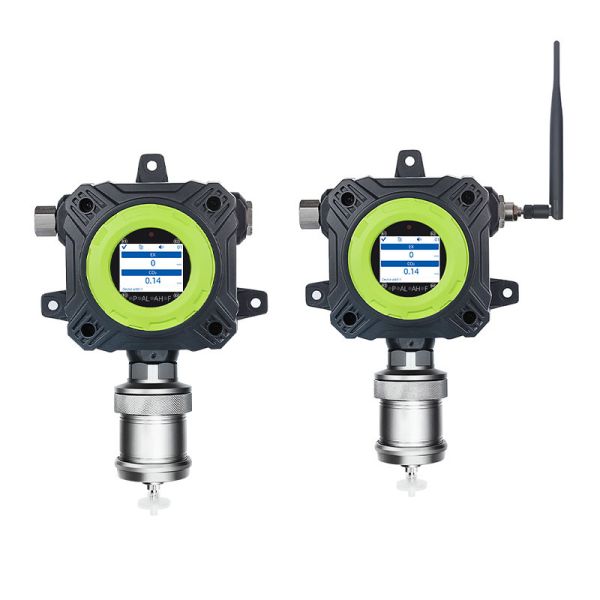

Product Images - YT-98H (with display)
Fixed Gas Detector Pump with 12-24V DC Power for NH3 and CO2 Detection Fixed Gas Detector Pump with 12-24V DC Power for NH3 and CO2 Detection Fixed Gas Detector Pump with 12-24V DC Power for NH3 and CO2 Detection

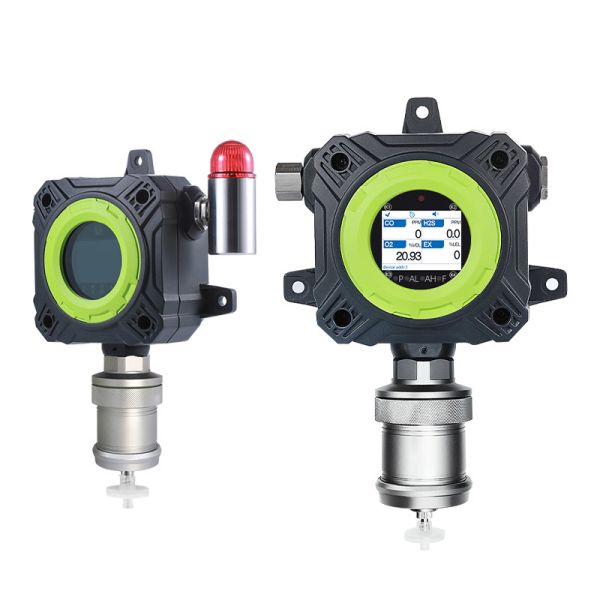

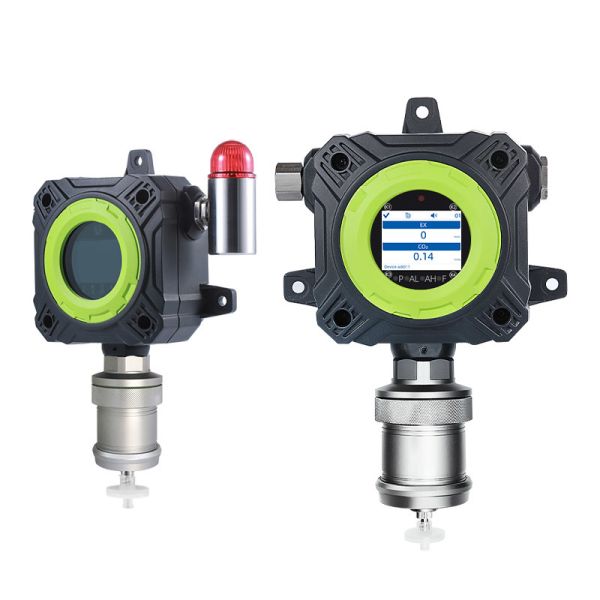

Product Images - YT-98H-A (with display and alarm light)
Fixed Gas Detector Pump with 12-24V DC Power for NH3 and CO2 Detection Fixed Gas Detector Pump with 12-24V DC Power for NH3 and CO2 Detection Fixed Gas Detector Pump with 12-24V DC Power for NH3 and CO2 Detection Fixed Gas Detector Pump with 12-24V DC Power for NH3 and CO2 Detection
Product Advantages
  • Detects up to 6 different gases simultaneously
  • Reduces multiple installations in complex environments with 2.4-inch industrial-grade HD color screen (320*240 resolution, 120° viewing angle)
  • Optional wireless module for cloud data upload with SMS alerts and unlimited distance transmission
  • Internal suction pump for fast response
  • Full software automatic verification and zero calibration for accurate monitoring
  • Standard 4-20mA current signal, RS485 Modbus signal, and relay signal output
  • Infrared remote control for detector operation and settings modification
  • Optional sound and light alarm functionality
Specifications
Gas Detected NH3, CO2
Detection Principle Electrochemical AND IR
Installation Method Wall-mounted, piping type, flow-type (according to environment)
Measurement Range Customizable
Resolution Customizable
Accuracy ≤±2-5%FS (depending on sensor)
Signal Output 4-20MA, RS485, relay
Response Time (T90) 15-30s (depending on sensor)
Recovery Time ≤10S
Repeatability ≤±1%
Display 2.4-inch color display, 320*240 resolution
Operating Language English/Chinese
Display Content Gas molecular formula, concentration, unit, pump status
Temperature Range -20ºC to 55ºC
Humidity Range 0-95%RH
Explosion-Proof IECEX:Ex db IIC T6 Gb
ATEX:Ex db IIC T6 Gb
Degree of Protection IP66
Alarm Mode Sound, light
Operating Time 24h
Dimensions 43*27*15cm
Weight 4.6kg
Why Choose Us?
  • R&D team with over 25 years of experience
  • Company certifications: ISO9001, ISO45001
  • Product certifications: IECEx (the only one in China), ATEX, CE
  • Fast delivery: 5-7 days
  • Annual production capacity: 80,000 units
  • Professional 24/7 customer service
Company Profile
Established in 2010, Shenzhen Yuan Te Technology Co., Limited (Safegas) specializes in the design, production, and sales of gas detection equipment and systems for 16 years. With gas detectors as our core product, we offer complete production lines and solutions for various industries including Oil, Chemical, Medicine, Energy, Environmental Protection, Electronics, Municipal Engineering, Agriculture, and Household Appliances.
Product Line
Our product range includes portable types (Minimeta, Micmeta, YT-1200H-S, SKY3000, SKY2000, SKY8000), fixed types (YT-95H, YT-98H, YT-96H, SG100, SG200), and controller panels (YT-1100H, YT-1600H).
Fixed Gas Detector Pump with 12-24V DC Power for NH3 and CO2 Detection
Certifications
Our products hold international certifications including IECEX, ATEX, CE, TEST Report, ISO 9001, and ISO 45001, ensuring quality comparable to international brands at competitive prices.
Fixed Gas Detector Pump with 12-24V DC Power for NH3 and CO2 Detection
Company Partners
We have collaborated with major companies including Huawei, Coca-Cola, Samsung, and Nestlé.
Fixed Gas Detector Pump with 12-24V DC Power for NH3 and CO2 Detection
FAQ
Q1: Are you a manufacturer or trading company?
A1: We are a professional manufacturer specializing in gas detectors for over 10 years.
Q2: What is the MOQ?
A2: Typically 1 piece.
Q3: How about the quality of your products?
A3: Our products use imported sensors and components and are fully certified.
Q4: How long is the warranty period?
A4: 1-year warranty from factory date with lifetime maintenance support.
