Specifications
Pump flow rate :
0.5L/min for gas; 1.8L/min for particles and dust
Model Number :
AQD5000
Display mode :
Adaptive display channel number, automatic page turning
Certification :
CEP
Monitoring way :
Continuous automatic real-time monitoring
Payment Terms :
T/T
Working humidity :
0-95%RH (relative humidity)
Price :
Negotiate
Alarm type(optional) :
Sound and light alarm
Supply Ability :
300 pieces per month
Sampling method :
Pump suction
Product weight :
18kg
MOQ :
1
Delivery Time :
10 work days
Display screen :
Color touch screen, 7 inch
Packaging Details :
Carton
Signal output :
RS485、relay、4G DTU（optional）、LORA（optional）,etc
Brand Name :
SAFEGAS
Working temperature :
-10℃～55℃
Place of Origin :
China
Description
Continuous Automatic Real Time Ambient Air Quality Monitor Weather Station Gas Particulate Matter Detector
Product Overview

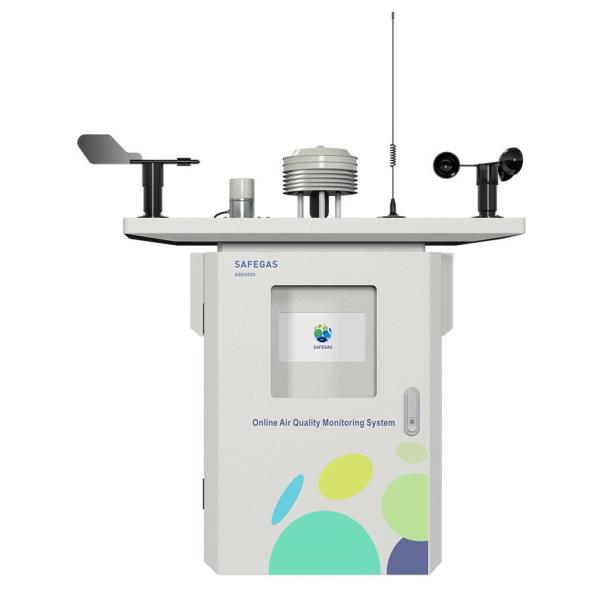

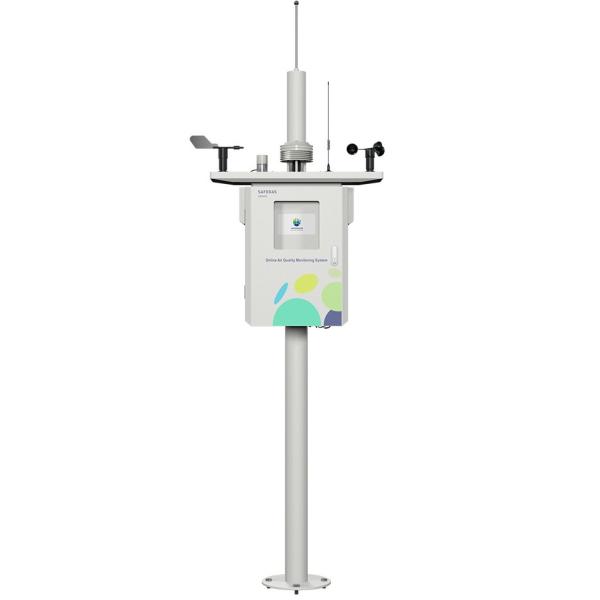

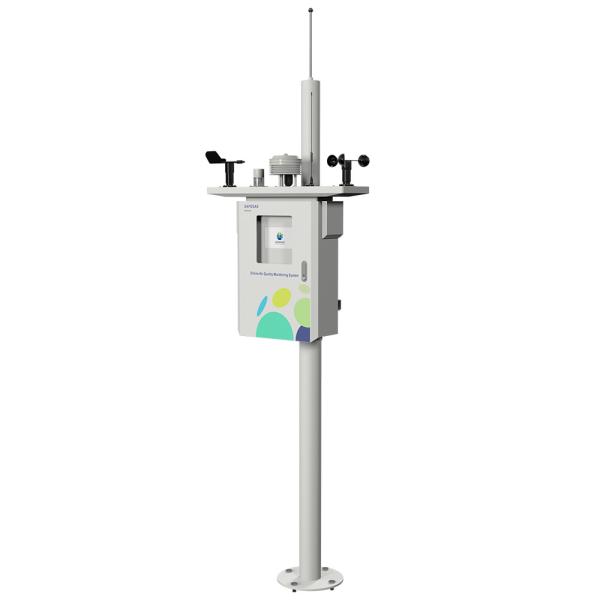

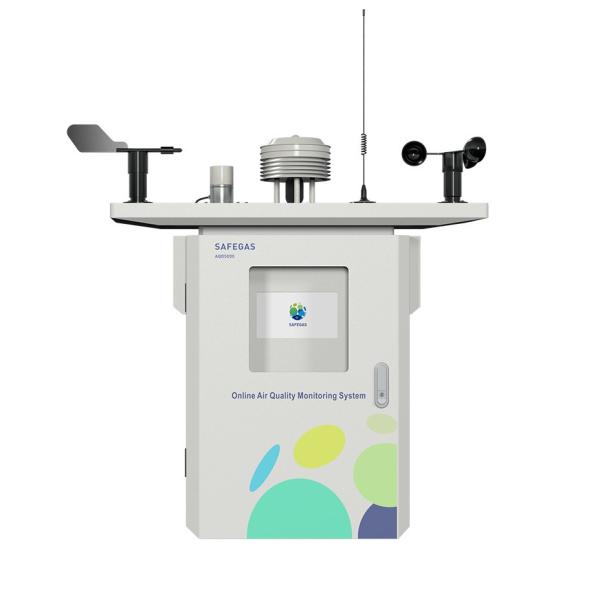

ADQ5000 is a new type of low-cost intelligent monitoring equipment, and it is an ideal solution for environmental monitoring departments to monitor air quality.

AQD5000 air quality monitoring system is widely used in urban air quality monitoring and industrial air emission pollution monitoring. It can simultaneously measure various environmental pollution gases, particulate matter and meteorological parameters in the air. The system supports RS485 signal transmission, with data storage and export functions. Through the wireless acquisition terminal, the measurement data can be transmitted to the cloud platform in real time, and can be remotely controlled through the cloud platform.

Applications
  • Urban municipal ambient atmospheric environmental quality real-time monitoring
  • Industrial factory waste gas emission & workshop air pollution monitoring
  • Chemical plant, mining area, industrial park air pollutant concentration detection
  • Residential community, scenic spot, campus public area air quality supervision
  • Construction site dust concentration and meteorological environmental parameter monitoring
  • Environmental protection bureau regional atmospheric pollution grid monitoring & data recording
Product Images
Continuous Automatic Real Time Air Quality Monitor and Weather Station with Multi-Gas Environmental Monitoring and High Protection Anti Hazardous Environment Continuous Automatic Real Time Air Quality Monitor and Weather Station with Multi-Gas Environmental Monitoring and High Protection Anti Hazardous Environment Continuous Automatic Real Time Air Quality Monitor and Weather Station with Multi-Gas Environmental Monitoring and High Protection Anti Hazardous Environment Continuous Automatic Real Time Air Quality Monitor and Weather Station with Multi-Gas Environmental Monitoring and High Protection Anti Hazardous Environment Continuous Automatic Real Time Air Quality Monitor and Weather Station with Multi-Gas Environmental Monitoring and High Protection Anti Hazardous Environment Continuous Automatic Real Time Air Quality Monitor and Weather Station with Multi-Gas Environmental Monitoring and High Protection Anti Hazardous Environment
Product Advantages
Multi-Parameter Monitoring

1-9 kinds of gas parameters can be monitored simultaneously, with optional particle and meteorological parameter modules

Rugged Construction

Professional outdoor shield provides perfect dust-proof and rain-proof protection, operates stably in extreme temperatures

Extended Data Logging

Standard storage function can store at least two years of monitoring data

Continuous Operation

Works 7×24 hours without interruption with real-time data upload, fault self-diagnosis and automatic restart

Standard Connectivity

Standard output RS485 signal with relay signal

High Accuracy & Reliability

15 years gas detection expertise using world-class brand sensors, high precision verified by third-party testing

Optional Features
  • Optional outdoor LED display large screen for easy real-time data viewing
  • Optional solar power supply panel for operation without mains power
  • Optional adapter card and PC software for computer-based concentration and historical data viewing
  • Optional 4G DTU and Lora wireless module for real-time data upload to environmental protection bureau servers
  • Optional camera for real-time remote monitoring of dust concentration with video and image collection
Technical Specifications
Gas Parameters Measurement parameters: ozone, sulfur dioxide, nitrogen dioxide, formaldehyde, carbon monoxide, TVOC, etc.
Measuring range: 0-1000ppb, 0-1000ppb, 0-1000ppb, 0-5ppm, 0-20ppm, 0-5ppm
Resolution: 1 ppb, 1 ppb, 1 ppb, 0.01ppm, 0.001ppm, 0.001ppm
Measuring principle: electrochemical, infrared, PID photo ionization
Detection accuracy: ±3%
Response time: ≤30S
Particle Parameters Measurement parameters: PM2.5, PM10, PM0.3, PM1.0, PM10.0, TSP, etc.
Measuring range: 0-1000ug/m3, 0-5000ug/m3
Resolution: 1ug/m3, 1ug/m3
Measuring principle: laser principle
Response time: ≤30S
Meteorological Parameters Measurement parameters: temperature, humidity, wind speed, wind direction, air pressure, light intensity, noise, etc.
Measuring range: -40°C~+120°C, 0~99%RH, 0~20m/s, 8 directions, 0~120Kpa, 0~200,000 Lux, 30dB~130dB
Resolution: 0.1℃, 1%RH, 0.1 m/s, 1 piece, 1 Kpa, 1Lux, 1dB
Measuring principle: thermocouple, mechanical principles
Output Signal RS485, relay, 4G DTU (optional), LORA (optional), etc
Sampling Method Pump suction
Pump Flow Rate 0.5L/min (gas); 1.8L/min (particles/dust)
Display 7-inch color touch screen display
Power Supply 220VAC(AC), 0.1A
Working Current <100Ma (Max)
Operating Temperature -10℃~55℃
Operating Humidity 0-95%RH (non-condensing)
Alarm Type Sound and light alarm (optional)
Product Shell Anti-corrosion, sun protection, anti-collision
Product Size 480×580×163mm (Excluding external sensors, rainproof beams, and mounting brackets)
Installation Method Ceiling, wall-mounted
Product Weight 18kg
Product Composition Pre-processing system and monitoring factor analysis system
Oil Water Dust Filter Glass fiber material, PE material (different monitoring factors correspond to different materials)
Warranty 12 months
Product Casing Carton
System Capabilities

AQD5000 model is an online air quality and environmental monitoring system.

Multi-gas Environmental Monitoring
Particle + Dust Monitoring
Weather/Environment Data
Why Choose Us?

As a professional gas detector manufacturer, we control the entire process from design-R&D-production-sales to ensure consistent product quality.

  • More than 100 independent intellectual property patents in design and development
  • Skilled technical workers and complete industrial production line
  • Professional sales team providing 7*24h customer service
  • R&D department with 25 years experience in gas detection industry
  • ISO9001 and ISO14001 certified quality management system
  • IECEx and ATEX explosion-proof certification for hazardous areas
  • First and only manufacturer in China with these certifications
  • Imported brand sensors and components for high accuracy and long service life
  • Fast delivery: 3 days for orders under 10 pieces, half a month for orders over 100 pieces
