Specifications
Model Number :
YT-98H-A
Repeatability :
≤±1%
Certification :
ATEX/IECEX
Payment Terms :
T/T,Western Union
Detection Principle :
Electrochemical
Accuracy :
≤±2-5%FS
Price :
Negotiable
Range :
0-1 ppm, 0-10ppm, 0-20ppm, 0-50ppm
Supply Ability :
3000 pieces per month
Gas Detected :
CL2
MOQ :
1
Delivery Time :
3 work days
Response time(T90) :
15 to 30s
Power :
12-24V DC
Temperature :
–20℃ to 55℃
Packaging Details :
Carton(43*27*15cm)
Brand Name :
SAFEGAS
Pump flow :
0.35 to 0.5 L/Min
Alarm(Optional) :
buzzer, alarm status prompt on the display screen, high and low alarm values can be set by customer
Place of Origin :
China
Humidity(no condensation) :
0-95%RH
Description
CL2 Gas Leak Detector IECEx Certified Chlorine Gas Transmitter Infrared Remote Control For Chemical Workshop Monitoring
Product Description

YT-98H/YT-98H-A Fixed Gas Detector

YT-98H is a built-in pump-suction single & multi gas detector with IECEx and ATEX certification and non-contact magnetic wand design. It can be installed and operated in explosion-proof areas and the Oil & Gas industry. In addition to a 3-wire 4 to 20-mA output with relays, it also offers HART and Modbus protocols, making it compatible with most control systems. With optional wireless function, operators can view data on laptops, mobile phones, or cloud systems remotely.

YT-98H can detect the concentration of CO2 and NH3 simultaneously. It can be installed in environments ranging from -20°C to 50°C, making it suitable for installation in freezers, cold storage, and other environments to detect ammonia leaks.

Applications
  • Oil and gas industry hazardous multi-gas continuous safety monitoring
  • Petrochemical plant workshop toxic and flammable gas real-time detection
  • Environmental protection department industrial waste gas emission data monitoring
  • Chemical warehouse explosion-proof area multi-gas leakage early warning alarm
  • Wastewater treatment plant confined space toxic gas online monitoring
  • Refinery complex working condition multi-gas concentration fixed inspection

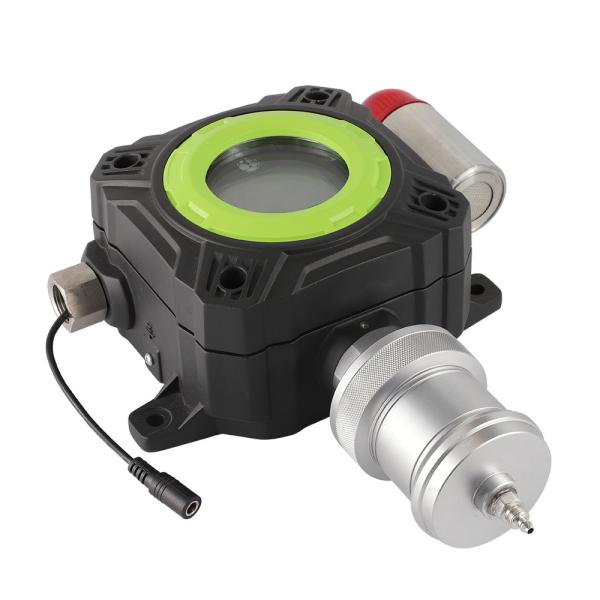

Product Images - YT-98H (with display)
IECEx Certified CL2 Gas Leak Detector with Infrared Remote Control and Electrochemical Detection for Chemical Workshop MonitoringIECEx Certified CL2 Gas Leak Detector with Infrared Remote Control and Electrochemical Detection for Chemical Workshop MonitoringIECEx Certified CL2 Gas Leak Detector with Infrared Remote Control and Electrochemical Detection for Chemical Workshop Monitoring

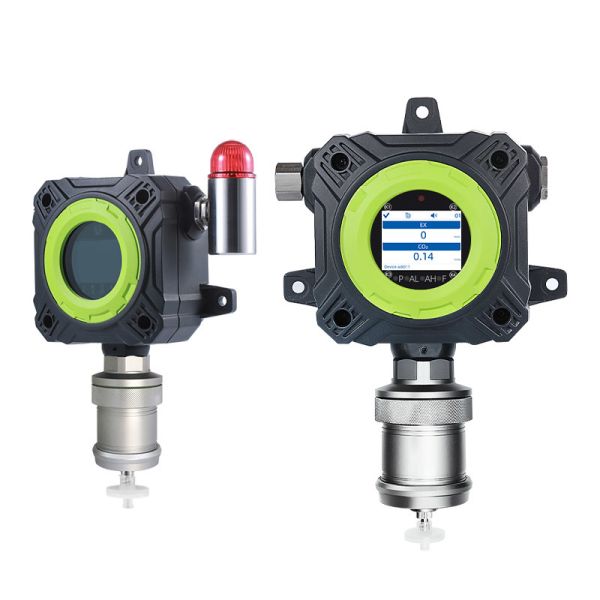

Product Images - YT-98H-A (with display and alarm light)
IECEx Certified CL2 Gas Leak Detector with Infrared Remote Control and Electrochemical Detection for Chemical Workshop MonitoringIECEx Certified CL2 Gas Leak Detector with Infrared Remote Control and Electrochemical Detection for Chemical Workshop MonitoringIECEx Certified CL2 Gas Leak Detector with Infrared Remote Control and Electrochemical Detection for Chemical Workshop MonitoringIECEx Certified CL2 Gas Leak Detector with Infrared Remote Control and Electrochemical Detection for Chemical Workshop Monitoring
Product Advantages
  1. Up to 6 kinds of gases can be detected simultaneously
  2. Reduces multiple installations in complex multi-gas environments, saving time and effort
  3. 2.4-inch industrial-grade high-definition color screen with 320*240 resolution and 120-degree wide viewing angle
  4. Optional wireless module for cloud platform data upload with SMS reminder function
  5. Internal suction pump for fast response
  6. Full software automatic verification and zero calibration functions for accurate monitoring
  7. Standard 4-20mA current signal, RS485 modbus signal, and relay signal output
  8. Standard infrared remote control for remote detector operation and settings modification
  9. Optional sound and light alarm function
Specifications
Gas DetectedNH3, CO2
Detection PrincipleElectrochemical AND IR
Install MethodWall-mounted, piping type, flow-type (according to detected environment)
Measure RangeCan be customized
ResolutionCan be customized
Accuracy≤±2-5%FS (depending on specific sensor)
Signal Output4-20MA, RS485, relay
Response Time (T90)15-30s (depending on specific sensor)
Recovery Time≤10S
Repeatability≤±1%
Display2.4-inch color display, resolution 320*240
Operating LanguageEnglish/Chinese
Display ContentGas molecular formula, concentration, unit, pump status, etc.
Temperature-20ºC~55ºC
Humidity0-95%RH
Explosion-ProofIECEX: Ex db IIC T6 Gb
ATEX: Ex db IIC T6 Gb
Degree of ProtectionIP66
Alarm ModeSound, light
Operating Time24h
Dimensions43*27*15cm
Weight4.6kg
Why Choose Us?
  • R&D team experience: over 25 years
  • Company certification: ISO9001, ISO45001
  • Product certification: IECEx (the only one in China), ATEX, CE
  • Delivery: 5-7 days
  • Yearly capacity: 80,000 units
  • Service: Professional sales staff provide 7*24 hours service
Company Profile

Established in 2010, Shenzhen Yuan Te Technology Co., Limited (Safegas) is a company that focuses on the design, production, and sales of gas detection equipment and systems for 16 years. With "gas detector" as the core product, we have completed production lines and solutions according to different industries, such as Oil, Chemical, Medicine, Energy, Environmental Protection, Electronic, Municipal Engineering, Agriculture and Forestry, Household Appliances, etc.

Product Line

Our products contain portable types, fixed types and controller panels.

Portable types: Minimeta, Micmeta, YT-1200H-S, SKY3000, SKY2000, SKY8000

Fixed types: YT-95H, YT-98H, YT-96H, SG100, SG200

Controller panels: YT-1100H, YT-1600H

IECEx Certified CL2 Gas Leak Detector with Infrared Remote Control and Electrochemical Detection for Chemical Workshop Monitoring
Certifications

IECEX, ATEX, CE, TEST Report, ISO 9001, ISO 45001

Our products have obtained international explosion-proof certifications from IECEX and ATEX, ensuring product quality comparable to international brands, but with competitive pricing.

IECEx Certified CL2 Gas Leak Detector with Infrared Remote Control and Electrochemical Detection for Chemical Workshop Monitoring
Companies We Cooperated With

Huawei, Coca-Cola, Samsung, Nestlé and more.

IECEx Certified CL2 Gas Leak Detector with Infrared Remote Control and Electrochemical Detection for Chemical Workshop Monitoring
Frequently Asked Questions
Q1: Are you a manufacturer or trading company?
A1: We are a professional manufacturer specializing in gas detectors for more than 10 years.
Q2: What is the MOQ?
A2: Usually it is 1 piece.
Q3: How about the quality of your products?
A3: Our products are made of imported sensors and components, and the products are certified.
Q4: How long is the warranty time of the products?
A4: The warranty period is 1 year from the factory, and we also provide lifetime maintenance.
