Specifications
Model Number :
YT-95H
Range :
0-50PPM/0-100PPM
MOQ :
1
Delivery Time :
3 work days
H.S code :
9027100090
Display :
LCD
Payment Terms :
T/T,Western Union
Weight :
less than 1.6kg
Price :
Negotiable
Dimensions :
180mm×150mm×90mm
Certification :
CNEX CE ISO9001, ISO14001, ISO45001
Resolusion :
0.1PPM
Supply Ability :
1000 pieces per month
Explosion-proof grade :
Ex d IIC T6 Gb
Zero shift（F.S./year） :
≤±1%
Brand Name :
SAFEGAS
Gas Detected :
HCN
Place of Origin :
China
Sensor Type :
Electrochemical
Packaging Details :
Carton
Repeatability :
≤±1%
Description
RS485 Modbus Signal Output Alarm Module For Electroplating Workshop Cyanide Gas Leak Remote Warning

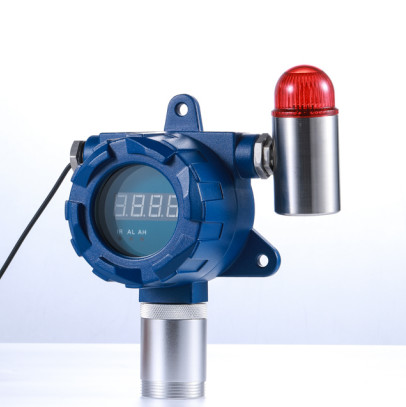

YT-95H-A Fixed HCN Hydrogen Chloride Gas Detector
High-precision Fixed HCN Gas Detector with diffusion detection principle, designed for industrial safety applications.
Product Overview
YT-95H/YT-95H-A series is a cost-effective explosion-proof transmitter for the detection of flammable gases and toxic gases. A 3-wire 4 to 20 mA analog output with relays and RS485 Modbus protocol makes it compatible with most control systems. Third-party products such as horns, warning lights and fans are compatible with our components and integrated by us into the system. With optional wireless function, operators can view data on laptop, mobile phone or cloud system remotely.
Key Features
  • Online monitoring with sound/light alarm (Optional) - 24h continuously monitoring, data will real-time display. High/low alarm with sound and light, sound >90dB, alarm point is settable
  • Non-contacted control the device - With infrared ray controller, which can remote control alarm point settings, zero calibration, and address modification
  • Variety of installation methods - 4-20mA current signal output, compatible with different kinds of controllers. RS485 MODBUS signal output. Relay signal output, to turn on/off ventilator, generators or other external devices
  • Data transmission - Can be installed with PC software, to transmit the data to computer, workers can remote monitor the data. Wireless data transmission including Lora, 4G (Optional)
  • High quality case - Die-cast aluminum case, strong and durable; Stainless steel case is optional, meeting the demand of different situations. IP65 protection degree, water-proof, dust-proof, explosion-proof
Technical Parameters
Parameter Details
Gas Detected HCN
Detection Principle Electrochemical
Measure Range Specified according to application
Resolution Specified according to application
Accuracy ≤±2-5%FS (depending on the specific sensor)
Response Time (T90) 15-30s (depending on the specific sensor)
Repeatability ≤±1%
Zero Shift ≤±1% (F.S./year)
Display 4 digits Nixie tube display
Connection Mode G1/2 external thread explosion-proof flexible pipe
Thread Size M45*2mm
Temperature -20℃ ~ 50℃
Humidity 0-95%RH (no condensation)
Material Case Die-cast aluminum, Sensor housing: aluminum alloy or 316 stainless steel
Power 12-36V DC
Dimensions 180×150×90mm
Weight ≤1.6kg
Explosion-proof Grade Ex d IIC T6 Gb
Fixed HCN Gas Detector with RS485 Modbus Signal Output Electrochemical Sensor and Explosion-proof Grade Ex d IIC T6 Gb
Fixed HCN Gas Detector with RS485 Modbus Signal Output Electrochemical Sensor and Explosion-proof Grade Ex d IIC T6 Gb
Application Scenarios
  • Electroplating factory cyanide wastewater workshop HCN gas real time monitoring
  • Precious metal smelting plant toxic hydrogen cyanide leakage online inspection
  • Chemical pharmaceutical production workshop hazardous gas continuous alarm detection
  • Mine metallurgy leaching workshop closed space toxic gas concentration monitoring
  • Waste incineration tail gas harmful HCN component emission inspection
  • Laboratory cyanide reagent storage room gas leak linkage ventilation control
  • ......
Fixed HCN Gas Detector with RS485 Modbus Signal Output Electrochemical Sensor and Explosion-proof Grade Ex d IIC T6 Gb
Fixed HCN Gas Detector with RS485 Modbus Signal Output Electrochemical Sensor and Explosion-proof Grade Ex d IIC T6 Gb
Company Advantages
R&D Team Experience: Over 25 years
Company Certifications: ISO9001, ISO45001
Product Certifications: IECEx, ATEX, CE
Delivery Time: 5-7 days
Annual Capacity: 80,000 units
Customer Service: Professional 7*24 hours support
Manufacturer Profile
Established in 2010, Shenzhen Yuan Te Technology Co., Limited (Safegas) specializes in the design, production, and sales of gas detection equipment and systems. With 16 years of industry experience, we provide comprehensive solutions for various sectors including Oil, Chemical, Medicine, Energy, Environmental Protection, Electronics, Municipal Engineering, Agriculture, and Household Appliances.
Product Line
Portable Detectors:
Minimeta, Micmeta, YT-1200H-S, SKY3000, SKY2000, SKY8000, SKY1000, MAXMETA
Fixed Systems:
YT-95H, YT-98H, YT-96H, SG100, SG200
Controllers:
YT-1100H, YT-1600H, YT-1800H
Particle Counters:
AQD5000, SKY6000-PM, SKY2000-PM
