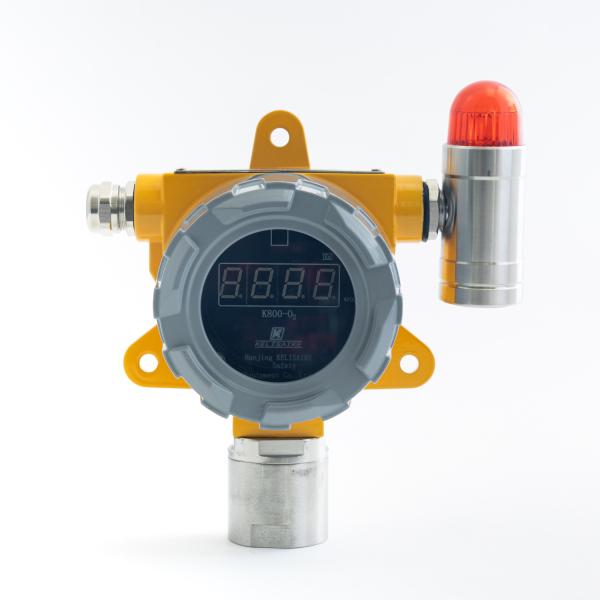

K800 Fixed Gas Detector CE SIL UL ATEX Approved Oil And Gas Industrial Safety
K800 Fixed Gas Detector CE SIL UL ATEX Approved Oil And Gas Industrial Safety
K800 Fixed Gas Detector CE SIL UL ATEX Approved Oil And Gas Industrial Safety
K800 Fixed Gas Detector CE SIL UL ATEX Approved Oil And Gas Industrial Safety
K800 Fixed Gas Detector CE SIL UL ATEX Approved Oil And Gas Industrial Safety
K800 Fixed Gas Detector CE SIL UL ATEX Approved Oil And Gas Industrial Safety
K800 Fixed Gas Detector CE SIL UL ATEX Approved Oil And Gas Industrial Safety
K800 Fixed Gas Detector CE SIL UL ATEX Approved Oil And Gas Industrial Safety
K800 Fixed Gas Detector CE SIL UL ATEX Approved Oil And Gas Industrial Safety
K800 Fixed Gas Detector CE SIL UL ATEX Approved Oil And Gas Industrial Safety
Specifications
Model Number :
Per the description
Place of Origin :
Nanjing,China
Brand Name :
KELISAIKE
Product name :
Fixed Gas Detector
Detecting gas :
Combustible Gas
Alarm type :
Sound+Light Alarm
Warranty :
12 months
Sensor :
electrochemical sensor,Catalytic sensor optional
Working voltage :
AC220V 50HZ customized
Output signal :
4-20mA/RS485/HART
Sampling method :
Diffusion
Certification :
CE
Description :
K800 Fixed Gas Detector – an advanced and reliable gas detection system designed to safeguard lives, assets, and the env
Stock :
1000pcs in stock
MOQ :
1
Price :
USD 350
Payment Terms :
T/T
Shipping Method :
Express
Description

K800 Fixed Gas Detector

the right choice for a variety of demanding industrial applications

K800 Fixed Gas Detector – an advanced and reliable gas detection system designed to safeguard lives, assets, and the environment. Basing having 3 or 4 wire, 4 to 20mA analog output with relays, it also offers RS485 MODBUS output and HART,making it compatible with most control system. The fixed point detector with in-built alarm and fault relays for the protection of personnel and plant from flammable, toxic and oxygen gas hazards in potentially explosive atmospheres, both indoors and outdoors.

K800 Fixed Gas Detector CE SIL UL ATEX Approved Oil And Gas Industrial Safety

Precision Detection: Cutting-edge sensors for accurate gas detection

• Electrochemical sensors

• Poison immune infrared sensors

• Poison resistant catalytic bead sensors

Versatile: Detects a wide range of hazardous gases for diverse industries, Flammable (catalytic or infrared), toxic and oxygen versions available

Real-time Monitoring: Continuous monitoring and instant alerts for proactive action.

User-friendly: LED light status indicator for fault and alarm conditions

Rugged Build: Built to withstand tough environments with durability.

Simple Installation

• Integral mounting bracket

• Removable plug/socket type terminal blocks for

ease of wiring

Cost Effective

• Common transmitter platform

• Minimal training required

• Reduced spares

• Plug-in sensor replacement

• MODBUS multi drop option offers cabling savings

K800 Fixed Gas Detector CE SIL UL ATEX Approved Oil And Gas Industrial Safety

Technical Specification:

Type Explosion proof/ flameproof enclosed transmitter(*d*)
Gases Flammable, toxic gases and oxygen, depended in the sensor used
Measuring range Customized adjustment, see sensor data sheet
Sensor Cell: UK sensors (brand CITY, Alphasense, Dynament etc.), US (brand Honeywell), Japan and Germany sensors
Display LCD
Working condition Power 24VDC
Working temperature

-20℃~+50℃

-40℃~+70℃ (optional)
Working humidity 10%RH~95%RH Non-Condensing
Pressure range 86Kpa~106Kpa
Output signal 4-20mA analog output,RS485 MODBUS output ,HART(optional)
Construction Junction Box: Aluminium Alloy, (Stainless Steel Option) Detector: Stainless Steel
Explosion-proof grade Ex d IIC T6 Gb
Protection grade IP66
Approvals

UL: Class I, Group A,B,C and D

SIL3: IEC 61508:2010

CE:EN 61326-1:2013

Ex d IIC T6 Gb

Ex tD A21 IP66 T80℃

CPA

Building Environment Specific Area

Gases Present

(Detected by K800)
Oil and Gas

Refineries,

Exploration drilling rigs

Production platforms

Onshore oil and gas terminals

Storage facilities

General

Hydrocarbons

H2S

CO

O2

VOCs

Benzene
Chemical Plants

Raw material storage

Process Areas

Laboratories

Pump rows

Compressor stations

Loading/unloading areas

General

Hydrocarbons

H2S

NH3

O2
Power Stations

Boiler pipework

Burners

Turbines

Coal silos and conveyor

belt areas in older coal/oil

fired stations

Generator rooms

Flammable

CH4

H2

O2

CO

Waste Water

Treatment Plants

Aeration tanks

Digestion chambers

Plants sumps

H2S scrubbers

Pumps

General

Hydrocarbons

H2S

NH3

CO

O2
Manufacturing Facilities

Production lines

Chemical processing zones

VOCs,

NH3

H2
Marine

Engine Rooms

Cargo Holds

Boiler Rooms

Refrigeration Rooms

Fuel Storage Areas

General

Hydrocarbons

H2

CO

NH3

VOCs
