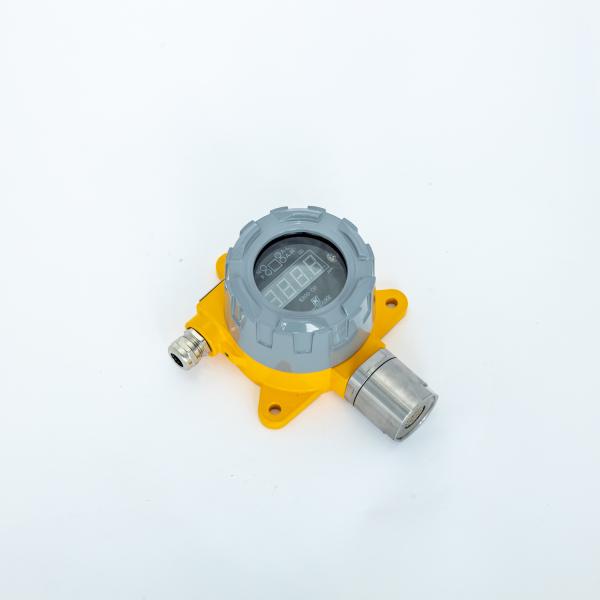

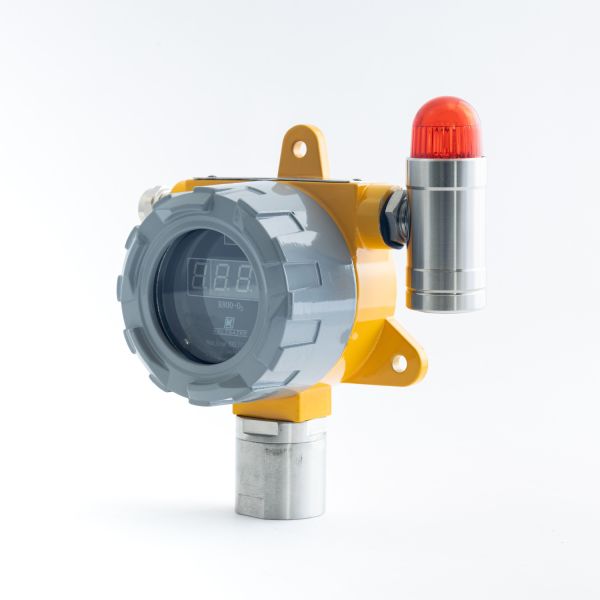

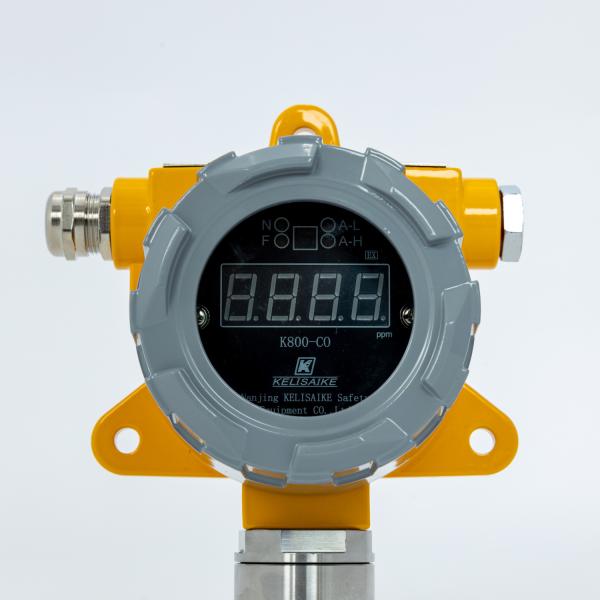

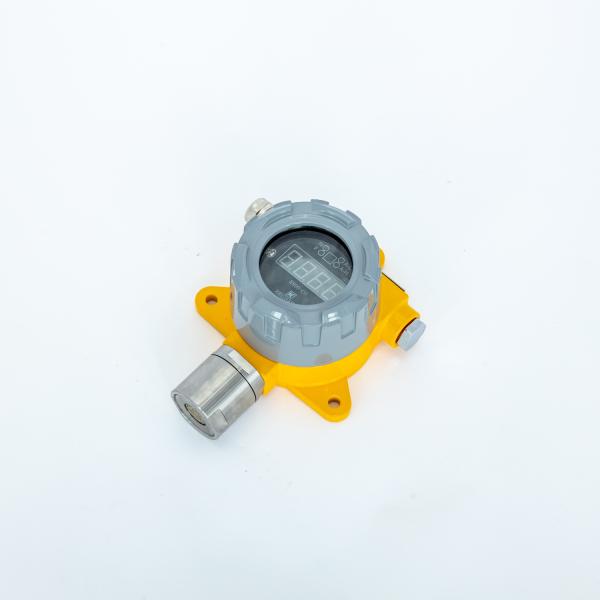

ATEX/UL/SIL3 Certified K800 Fixed Gas Transmitter 4-20mA Modbus Explosion Proof Exd II CT6 IP Protection
ATEX/UL/SIL3 Certified K800 Fixed Gas Transmitter 4-20mA Modbus Explosion Proof Exd II CT6 IP Protection
ATEX/UL/SIL3 Certified K800 Fixed Gas Transmitter 4-20mA Modbus Explosion Proof Exd II CT6 IP Protection
ATEX/UL/SIL3 Certified K800 Fixed Gas Transmitter 4-20mA Modbus Explosion Proof Exd II CT6 IP Protection
ATEX/UL/SIL3 Certified K800 Fixed Gas Transmitter 4-20mA Modbus Explosion Proof Exd II CT6 IP Protection
ATEX/UL/SIL3 Certified K800 Fixed Gas Transmitter 4-20mA Modbus Explosion Proof Exd II CT6 IP Protection
ATEX/UL/SIL3 Certified K800 Fixed Gas Transmitter 4-20mA Modbus Explosion Proof Exd II CT6 IP Protection
ATEX/UL/SIL3 Certified K800 Fixed Gas Transmitter 4-20mA Modbus Explosion Proof Exd II CT6 IP Protection
ATEX/UL/SIL3 Certified K800 Fixed Gas Transmitter 4-20mA Modbus Explosion Proof Exd II CT6 IP Protection
ATEX/UL/SIL3 Certified K800 Fixed Gas Transmitter 4-20mA Modbus Explosion Proof Exd II CT6 IP Protection
Specifications
Place of Origin :
Nanjing,China
Model Number :
Per the description
Certification :
CE
Brand Name :
KELISAIKE
Description :
Fixed Gas Detector K800 Series- designed for continuous gas monitoring in chemical plants, oil refineries, and so on
Stock :
1000pcs in stock
MOQ :
1
Price :
USD 350
Payment Terms :
T/T
Shipping Method :
Express
Weight :
2.1kg
Product name :
Gas Detector Fixed RS485 4-20ma detect all gases
Color :
Yellow
Type :
Fixed gas detector
Measure range :
0-100ppm,0-100%LEL
Detecting gas :
Combustible Gas,NH3,H2
Alarm type :
Sound+Light Alarm
Response time :
<30S
Warranty :
1 Year
Usage :
Industrial Production,industrial Combustible gas toxic gas leak alarm
Sensor :
electrochemical sensor,Catalytic sensor
Detection principle :
catalytic combustion / electrochemical / semiconductor,PID,Electrochemical,catalytic combustion type; electrochemical; infrared,Principle of electrochemistry
Working voltage :
AC220V 50HZ
Output signal :
4-20mA/RS485
Sampling method :
Diffusion,fixed
Description

K800 Fixed Gas Detector

the right choice for a variety of demanding industrial applications

K800 Fixed Gas Detector – an advanced and reliable gas detection system designed to safeguard lives, assets, and the environment. Basing having 3 or 4 wire, 4 to 20mA analog output with relays, it also offers RS485 MODBUS output and HART,making it compatible with most control system. The fixed point detector with in-built alarm and fault relays for the protection of personnel and plant from flammable, toxic and oxygen gas hazards in potentially explosive atmospheres, both indoors and outdoors.

ATEX/UL/SIL3 Certified K800 Fixed Gas Transmitter 4-20mA Modbus Explosion Proof Exd II CT6 IP Protection

Precision Detection: Cutting-edge sensors for accurate gas detection

• Electrochemical sensors

• Poison immune infrared sensors

• Poison resistant catalytic bead sensors

Versatile: Detects a wide range of hazardous gases for diverse industries, Flammable (catalytic or infrared), toxic and oxygen versions available

Real-time Monitoring: Continuous monitoring and instant alerts for proactive action.

User-friendly: LED light status indicator for fault and alarm conditions

Rugged Build: Built to withstand tough environments with durability.

Simple Installation

• Integral mounting bracket

• Removable plug/socket type terminal blocks for

ease of wiring

Cost Effective

• Common transmitter platform

• Minimal training required

• Reduced spares

• Plug-in sensor replacement

• MODBUS multi drop option offers cabling savings

ATEX/UL/SIL3 Certified K800 Fixed Gas Transmitter 4-20mA Modbus Explosion Proof Exd II CT6 IP Protection

Technical Specification:

Type Explosion proof/ flameproof enclosed transmitter(*d*)
Gases Flammable, toxic gases and oxygen, depended in the sensor used
Measuring range Customized adjustment, see sensor data sheet
Sensor Cell: UK sensors (brand CITY, Alphasense, Dynament etc.), US (brand Honeywell), Japan and Germany sensors
Display LCD
Working condition Power 24VDC
Working temperature

-20℃~+50℃

-40℃~+70℃ (optional)
Working humidity 10%RH~95%RH Non-Condensing
Pressure range 86Kpa~106Kpa
Output signal 4-20mA analog output,RS485 MODBUS output ,HART(optional)
Construction Junction Box: Aluminium Alloy, (Stainless Steel Option) Detector: Stainless Steel
Explosion-proof grade Ex d IIC T6 Gb
Protection grade IP66
Approvals

UL: Class I, Group A,B,C and D

SIL3: IEC 61508:2010

CE:EN 61326-1:2013

Ex d IIC T6 Gb

Ex tD A21 IP66 T80℃

CPA

Building Environment Specific Area

Gases Present

(Detected by K800)
Oil and Gas

Refineries,

Exploration drilling rigs

Production platforms

Onshore oil and gas terminals

Storage facilities

General

Hydrocarbons

H2S

CO

O2

VOCs

Benzene
Chemical Plants

Raw material storage

Process Areas

Laboratories

Pump rows

Compressor stations

Loading/unloading areas

General

Hydrocarbons

H2S

NH3

O2
Power Stations

Boiler pipework

Burners

Turbines

Coal silos and conveyor

belt areas in older coal/oil

fired stations

Generator rooms

Flammable

CH4

H2

O2

CO

Waste Water

Treatment Plants

Aeration tanks

Digestion chambers

Plants sumps

H2S scrubbers

Pumps

General

Hydrocarbons

H2S

NH3

CO

O2
Manufacturing Facilities

Production lines

Chemical processing zones

VOCs,

NH3

H2
Marine

Engine Rooms

Cargo Holds

Boiler Rooms

Refrigeration Rooms

Fuel Storage Areas

General

Hydrocarbons

H2

CO

NH3

VOCs
