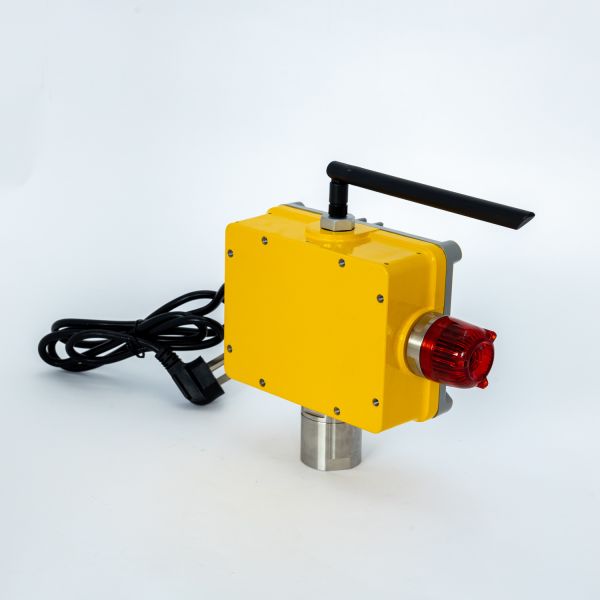

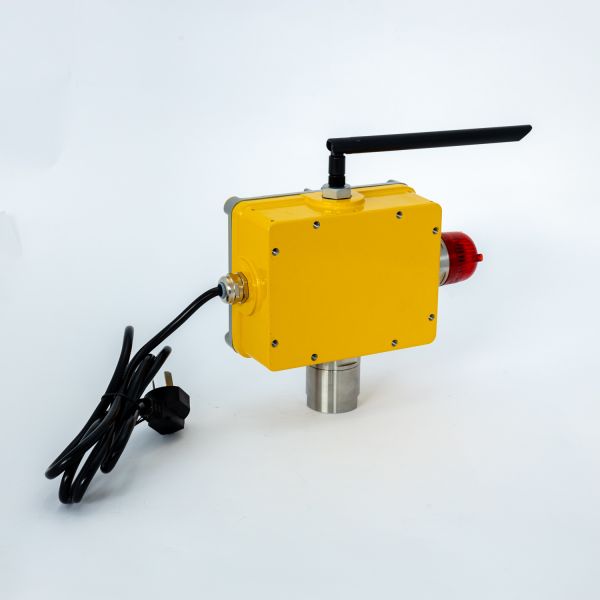

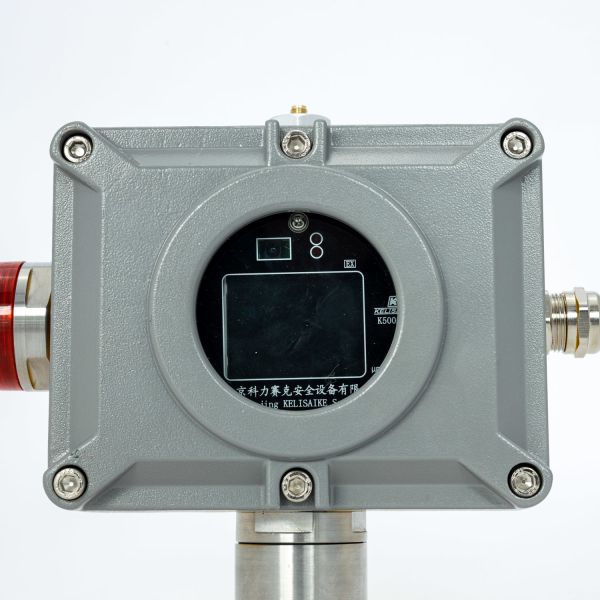

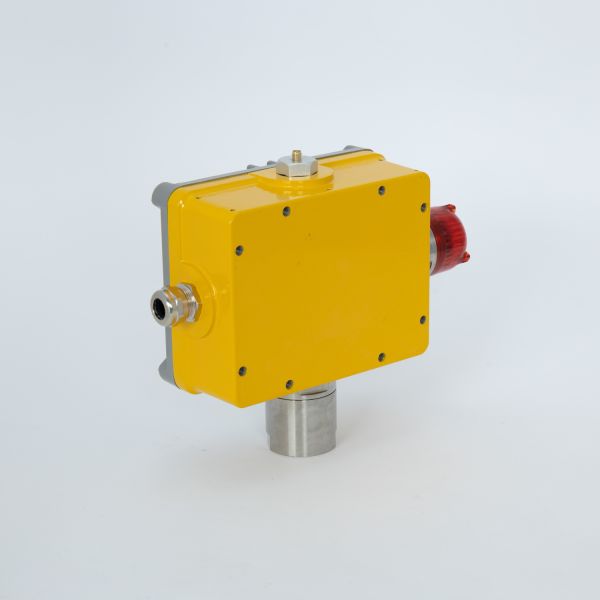

K500 Explosion Proof Wall Mounted Gas Detector with High Sensitivity Imported Sensors and 4-20mA Output Analog
K500 Explosion Proof Wall Mounted Gas Detector with High Sensitivity Imported Sensors and 4-20mA Output Analog
K500 Explosion Proof Wall Mounted Gas Detector with High Sensitivity Imported Sensors and 4-20mA Output Analog
K500 Explosion Proof Wall Mounted Gas Detector with High Sensitivity Imported Sensors and 4-20mA Output Analog
K500 Explosion Proof Wall Mounted Gas Detector with High Sensitivity Imported Sensors and 4-20mA Output Analog
K500 Explosion Proof Wall Mounted Gas Detector with High Sensitivity Imported Sensors and 4-20mA Output Analog
K500 Explosion Proof Wall Mounted Gas Detector with High Sensitivity Imported Sensors and 4-20mA Output Analog
K500 Explosion Proof Wall Mounted Gas Detector with High Sensitivity Imported Sensors and 4-20mA Output Analog
K500 Explosion Proof Wall Mounted Gas Detector with High Sensitivity Imported Sensors and 4-20mA Output Analog
K500 Explosion Proof Wall Mounted Gas Detector with High Sensitivity Imported Sensors and 4-20mA Output Analog
Specifications
Gas :
CO
HS Code :
90200000
Warranty :
1 Year
Brand :
Kelisaike
Certification :
CE
Samples :
US$ 300/Piece 1 Piece(Min.Order) | Request Sa
Model NO. :
K500
Type :
Electrochemical Gas Analyzer
After-sales Service :
Lifelong Maintenance
Customized :
Customized
Portable :
Non Portable
Customization :
Available | Customized Request
Model Number :
Per the description
MOQ :
1
Stock :
1PC
Brand Name :
KELISAIKE
Place of Origin :
Nanjing,China
Description
K500 Fixed Industrial Gas Leak Detector
The K500 series wall-mount gas detector features high sensitivity imported sensors and explosion-proof design for reliable methane (CH4), ozone, H2, and CO detection with 0-100%LEL range and optional IR sensor.
Product Overview
This industrial-grade gas detector offers long service life and operates as part of an integrated system with 4-20mA output analog or as a stand-alone unit. Features include two discrete alarm levels (high and low), audible and visual alarms, and explosion-proof construction.
K500 Explosion Proof Wall Mounted Gas Detector with High Sensitivity Imported Sensors and 4-20mA Output Analog
Key Features
  • High sensitivity world famous imported sensors
  • Bright, red flashing visible alarm and loud 90dB audible alarm
  • Waterproof and dust-proof design for harsh environments
  • Compatible with DCS (Distributed Control System)
  • Flameproof body design according to IEC61508
  • Simple and easy installation and maintenance
  • Programmable alarm operation values
  • 220V AC or 24V DC power supply with 4-20mA output analog
  • Color screen 2+2 digits LCD display showing real-time gas concentration
  • Comprehensive self-test functionality
  • Complete accessory package included
Certifications
K500 Explosion Proof Wall Mounted Gas Detector with High Sensitivity Imported Sensors and 4-20mA Output Analog K500 Explosion Proof Wall Mounted Gas Detector with High Sensitivity Imported Sensors and 4-20mA Output Analog
Technical Specifications
ParameterSpecification
ItemGas leak detector
Model NO.K500 gas leak detector
SensorsHigh sensitivity imported sensors
Sensor service life2-5 years
Operating voltage220V AC/24V DC
Display4 digital LED display
Alarm buzzer90db
Alarm modeAcousto optic alarm
Ambient temperature-20°C ~ +50°C / -50°C ~ +50°C
Relative humidity15~90%RH (non condensation)
MaterialAluminum alloy and stainless steel
Detecting methodDiffusion
Dimension(mm)160(L)*126(W)*78(H)mm
Explosion-proof gradeExdII CT6
WeightK500-D: 3.5kg, K500-N: 3.0kg
PackageCarton
Pcs/ctn1pc/ctn
Ctn size260x230x140mm
Payment termsT/T
Warranty1 year
