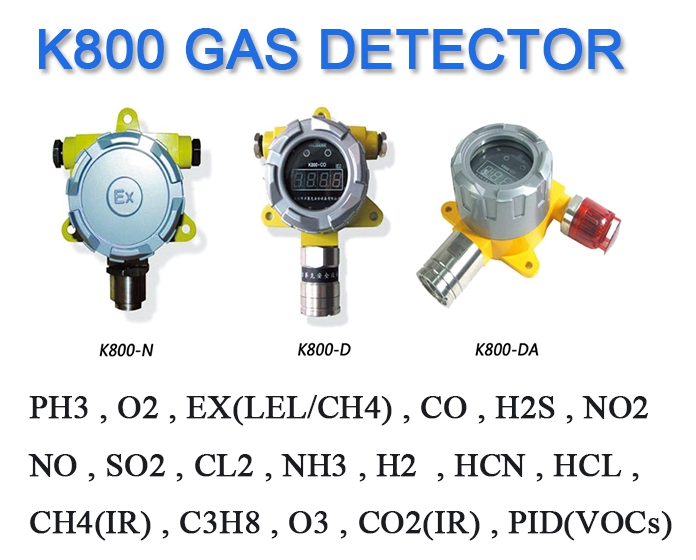

K800 UL Certified Explosion-proof Fixed Gas Detector with Sound and Light Alarm
K800 UL Certified Explosion-proof Fixed Gas Detector with Sound and Light Alarm
K800 UL Certified Explosion-proof Fixed Gas Detector with Sound and Light Alarm
K800 UL Certified Explosion-proof Fixed Gas Detector with Sound and Light Alarm
K800 UL Certified Explosion-proof Fixed Gas Detector with Sound and Light Alarm
K800 UL Certified Explosion-proof Fixed Gas Detector with Sound and Light Alarm
K800 UL Certified Explosion-proof Fixed Gas Detector with Sound and Light Alarm
K800 UL Certified Explosion-proof Fixed Gas Detector with Sound and Light Alarm
K800 UL Certified Explosion-proof Fixed Gas Detector with Sound and Light Alarm
K800 UL Certified Explosion-proof Fixed Gas Detector with Sound and Light Alarm
K800 UL Certified Explosion-proof Fixed Gas Detector with Sound and Light Alarm
K800 UL Certified Explosion-proof Fixed Gas Detector with Sound and Light Alarm
Specifications
Alarm System :
Vibration alarm with sound and light
Place of Origin :
Nanjing,China
Product Name :
K800 Fixed Gas Detector
Weight :
1.6kg
Brand Name :
KELISAIKE
Output Signals :
4-20mA/RS485
Nominal Voltage :
DC 24V Gas leak detector
Size :
183*143*107mm
Service Life :
2-5 years fixed gas detector
Model Number :
Per the description
Certification :
CE
Display :
LCD display
customized support :
OEM, ODM, OBM
Detection of Gas :
Combustible and Toxic Gases
Explosion-proof Grade :
Ex d IIC T6
warranty :
1 YEAR
MOQ :
1
Description

K800 UL Certified Explosion-proof Fixed Gas Detector with Sound and Light Alarm

>>> Product Description

K800 series fixed device with 2 or 3 or 4 wire, 4-20mA and RS485 MODBUS output provides continuous detection and monitoring of gases for a wide range of industrial environments.

K800 fixed gas detector adopts advanced catalytic gas sensor or electrochemical sensor, which can translate the gas concentration in the air to the digital signal output.

K800 UL Certified Explosion-proof Fixed Gas Detector with Sound and Light Alarm

>>> Key Features

1) EX Proof: ATEX & CNEX
2) Accuracy& Stability: Premium Gas sensors (including CITY, ALPHASENSE, HONEYWELL, DYNAMENT etc.), 100% calibration, 100%QC.
3) Maintenance: Module design easy maintenance
4) Warranty Service: 1year warranty& New replacement within 3 months

5) OEM &ODM: 16-year experience in gas detection system, OEM&ODM services are welcome.

6) CERTIFICATIONS: UL, CE, CMC, ATEX, CNEx, MA, SIL, ISO certifications.

7) Network wireless (Optional): Blue tooth, 4G, NB, connect to the mobile APP and upload data.

The online gas detector monitors gas leakage by natural diffusion. It can be directly connected with DCS systems or Central unit. With relay output, once the concentration exceeds the preset alarm point(threshold), it will start the acoustic-optical alarm on the central unit and drive the external equipment like exhaust fans.

K800 UL Certified Explosion-proof Fixed Gas Detector with Sound and Light Alarm

>>> Technical Specifications

Technical Specifications

Item:

K800 Fixed gas detector

Sensor Cell:

UK sensors (brand CITY, Alphasense, Dynament etc.), US (brand Honeywell), Japan and Germany sensors

Lifetime of Detector:

2 – 5 years

Sample Mode

Diffusion

Operating Voltage:

24V DC

Display

4 digital LED readout display

Transmission Cable

Three core shield cable, 3×1.5mm

Ambient Temperature:

- 20 ° C ~ + 50 ° C

Relative Humidity:

15~90%RH(non condensation)

Working Pressure:

86~106Kpa

Detection Precision:

±5%FS

Explosion-proof Grade:

Exd II CT6

Protection Grade:

IP65

Response time

T90≤30S

Wiring

3-wire/4-wire

Body material

YL113 aluminum +304L S/S; M20*1.5

Suitable cable

RVVP3*1.5mm2 cable

Relay output

1 relay output

Display

LCD display

Indicator light

with power, fault,alarm-1,alarm-2 indicator light

Operation method

remote control

Ingress protection

IP66

Operating temperature

-20℃~+60℃

Dimensions

140*141*91mm(H*W*D)

Weight

About 1.6kg

Operating humidity

10~95%RH non-condensing

Operating pressure

80-120kPa

Certificates

EN 61326-1:2013

EX

Exd IICT6 Gb

Ex tD A21 IP66 T80°C

SIL

SIL2

UL508 UL1203

>>> Measurable Gas Meter

K800 UL Certified Explosion-proof Fixed Gas Detector with Sound and Light Alarm

Mark: other customized gas types are also available.
