Specifications
Delivery Time :
7 working days
Brand Name :
KELISAIKE
Certification :
CE
Approval :
CE/ LA
Model NO. :
KL99-EEBD
Packaging Details :
Carton
Duration :
More Than 15mins
HS Code :
9020000000
Aircylinder Volume :
2L, 3L
Supply Ability :
3000pcs per month
Working Pressure :
30MPa/ 300bar
Trademark :
KELISAIKE
Place of Origin :
Nanjing,China
Max Flow :
300 L/Min
Specification :
75x47.5x31(cm)
MOQ :
1
Price :
US$79.00-150.00
Payment Terms :
T/T,Western Union,MoneyGram,Paypal
Shipping Method :
LCL, AIR, FCL, Express
Weight :
3.0 Kgs
Transport Package :
Carton
Model Number :
Per the description
Alarm Pressure :
4-6 MPa
Origin :
China
Description

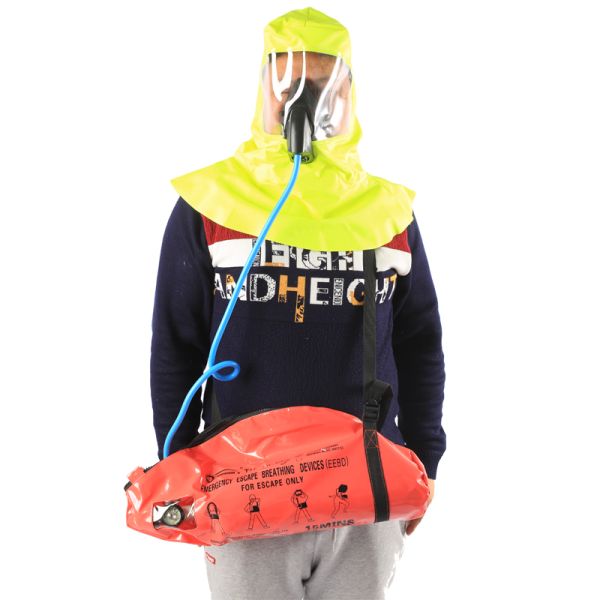

KL99 Marine Emergency Escape Breathing Device EEBD with 20 Minutes Duration 300Bar Working Pressure and Carbon Fiber Air Cylinder The KL99-EEBD is an emergency escape breathing device providing 15 or 20 minutes of escape from toxic environments, even in atmospheres immediately dangerous to life and health (IDLH). The KL99 EEBD is lightweight and designed for comfort as well as simplicity of use.
Device Structure & Purpose
  • The EEBD is used exclusively for escape from compartments with hazardous atmospheres to provide personnel breathing protection
  • Not to be used for fighting fire, entering oxygen-deficient voids or tanks, or worn by firefighters
  • Pressure gauge on cylinder indicates cylinder pressure (not indicated during storage)

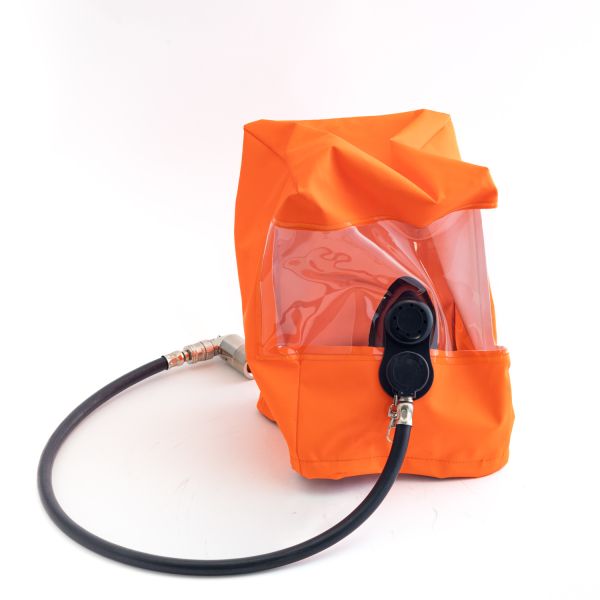

  • Flame-resistant hood completely covers head, neck, and portions of shoulders with clear window for visibility

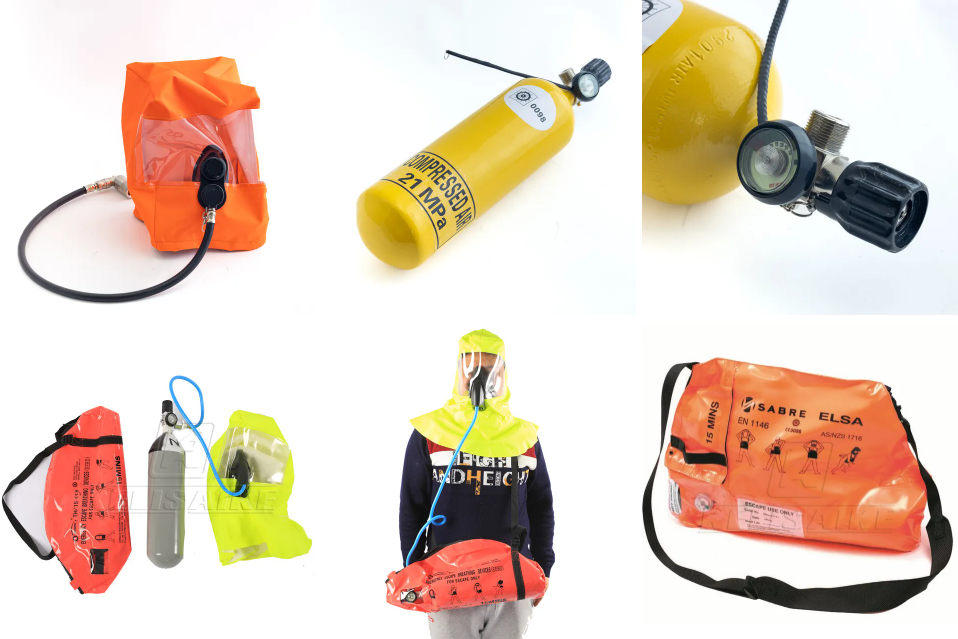

Complete Set Includes
  • 1 Escape device

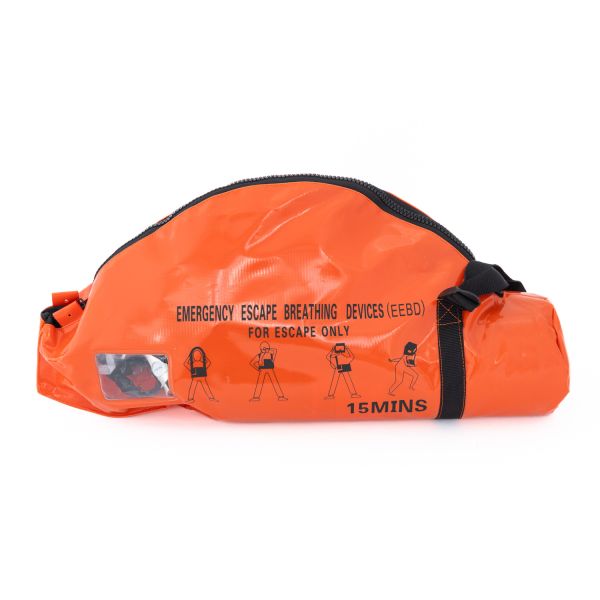

  • 1 Device bag
  • 1 Device packing carton
  • 1 Set of files with the device
Key Features
  • Lightweight and convenient for operation
  • Demand type design allows for reuse

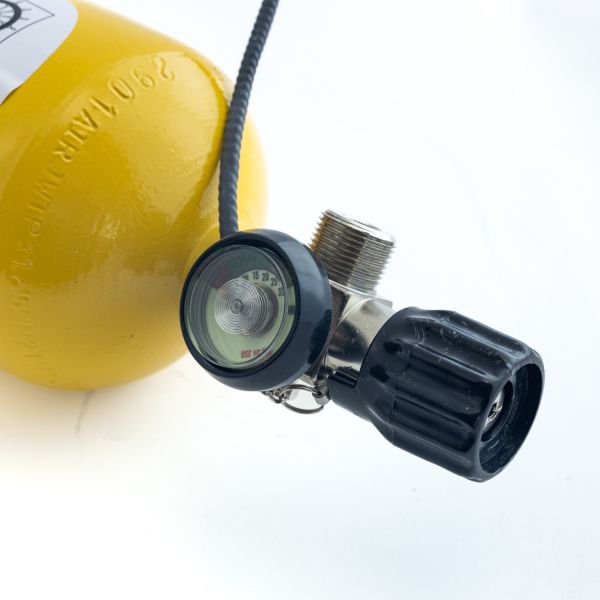

  • Y-type design with cylinder valve and gauge for normal pressure indication
  • Prevents accidents during emergency escape while maintaining sufficient air supply
  • Carbon fiber air cylinder with working pressure: 30MPa; 2L/3L air cylinder options available
  • PG-S pressure gauge enables clear reading of storage volume in complex and dark environments
  • Shoulder-carried design allows hands-free operation for additional protection during escape
  • Unaffected by dense smoke and severe external environments
  • Service time of 15-25 minutes enables quick evacuation from dangerous environments
  • Safe and reliable essential escape unit for hazardous environments
Usage Instructions
  1. Check pressure gauge, observe cylinder capacity, and tear the seal
  2. Put on satchel and pull out launch belt to open it
  3. Take out face mask and wear from head down, ensuring transparent window is in front and shawl covers shoulders
  4. Escape quickly from the accident spot
Technical Specifications
Specification 2L 3L
Cylinder material Carbon fiber composites
Gas Compressed air
Working pressure ≤30Mpa
Inhalation resistance (Pa) ≤500Pa
Exhalation resistance (Pa) ≤1000Pa
Alarm pressure (MPa) 5.5±0.5Mpa
Max. air supply flow ≥1000L/min
Certificate

CE & LA
Service time (30L/min) 15min 20min
Overall weight (kg) 3.0KGS 3.8KGS
