Specifications
MOQ :
1 Set (MOQ)
Price :
US$350.00-500.00
Payment Terms :
T/T,Western Union,MoneyGram,Paypal
Shipping Method :
LCL, AIR, FCL, Express, Negotiation
Supply Ability :
1000set/month
Delivery Time :
10 working days
Packaging Details :
Carton
Brand Name :
KELISAIKE
Model Number :
Kl99-Papr
Certification :
CE, ISO
Place of Origin :
China
Model NO. :
KL99
Customization: :
Available
Certification: :
CE, ISO
Cylinder Material :
Carbon Fiber Composites
Gas Cylinder Volume (L) :
2L, 3L, 4.7L, 6.8L, 9L
Working Pressure :
30MPa
Hydrostatic Pressure :
45MPa
Specification :
76.5*28.5*52
Inhalation Resistance :
588Pa
Max Flow :
300L/Min
Exhalation resistance :
1000Pa
Alarm :
≥90db
Approved temperature :
-40℃ to +60℃
Screw Thread :
M198*1.5
Approvals :
EN137:2006/EN136:1998
Description
60Min 6.8L Firefighting SCBA With CE Certificate Safety Equipment Self-Contained Breathing Apparatus
60Min 6.8L CE Certified Self-Contained Breathing Apparatus SCBA for Firefighting and Emergency Rescue

The Positive Pressure Air Breathing Apparatuses are self-contained open breathing apparatuses. This series of products, which are ideal personal breathing protectors for firefighters and emergency rescuers, are widely used in such sectors as fire fighting, chemical industry, shipping, petroleum, smelting, electricity, warehouse, laboratory, and mining. They enable firefighters and emergency rescuers to perform effective rescue and relief work under conditions of heavy smoke, poison gas, steam, and hypoxia.

Technical Specifications
Item Description
KL99-SCBA SET
(self-contained air breathing apparatus)		 Cylinder Material: Carbon fiber composites
Service Life of Cylinder: 15 years
Filled Content: Compressed air
Cylinder volume(L): 4.7, 6.8, 9 or 6 steel cylinder
Hydrostatic pressure(Mpa): 50Mpa (500Bar)
Working pressure(Mpa): ≤30Mpa
Max flow(L/min): ≥1000
Inhalation resistance(Pa): ≤500
Exhalation resistance(Pa): ≤1000
Alarm pressure(Mpa): 5.5±0.5
Alarm(dB): ≥90
Screw Thread: M18*1.5
Approved temperature: -40℃ to +60℃
Approvals: EN137:2006/ EN136:1998

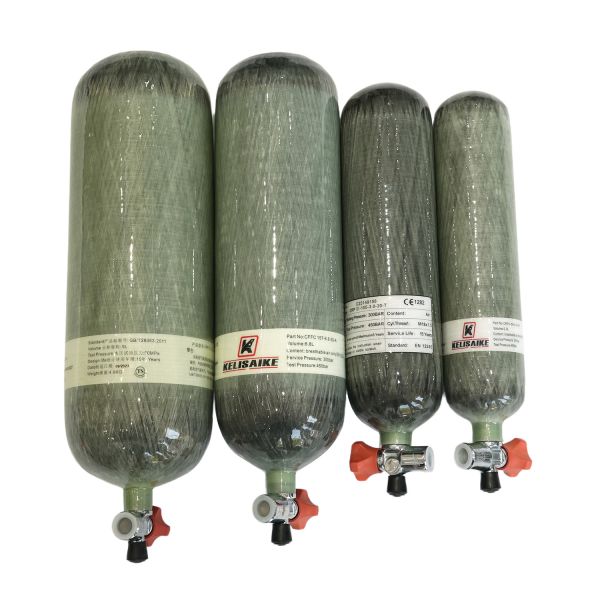

KL99 Carbon Fiber Composite Cylinder Specifications
Part No. Volume(L) OD(mm) L(mm) Gas Capacity(L) Wall Thickness(mm) Complete Set N.W (KG)
KL99-C1-88-2.0-30-T 2 96 433 544 ≥2.0mm 1.5
KL99-C2-105-3.0-30-T 3 114 446 817 ≥2.0mm 2.1
KL99-C3-125-4.7-30-T 4.7 137 492 1275 ≥2.0mm 3
KL99-C4-144-6.8-30-T 6.8 157 528 1835 ≥1.8mm 3.8
KL99-C5-162-9.0-30-T 9 174 550 2530 ≥2.0mm 4.9
Component Parts
60Min 6.8L CE Certified Self-Contained Breathing Apparatus SCBA for Firefighting and Emergency Rescue
1. KL99-A01 Full Mask
  • Three-dimensional spherical visor with 91% visual field and excellent optics
  • Rigidified and anti-fog processed lens for long-term fog-free performance
  • Comfortable fit with excellent leak tightness
  • Plug-in structure for quick connection with demand valve
  • High-quality flame-resistant silicon rubber construction
  • Flame-resistant reticulated hood and easy-to-wear straps
  • High-intensity sound transmission diaphragm
  • Oronasal guard to decrease inhalation carbon dioxide content
2. KL99-A02 Backboard
  • Ergonomically designed to fit different users
  • Lightweight main body (0.685kg)
  • Tortuosity above 90 degrees
  • Made from high-strength, chemical, high-temperature, and impact-resistant material

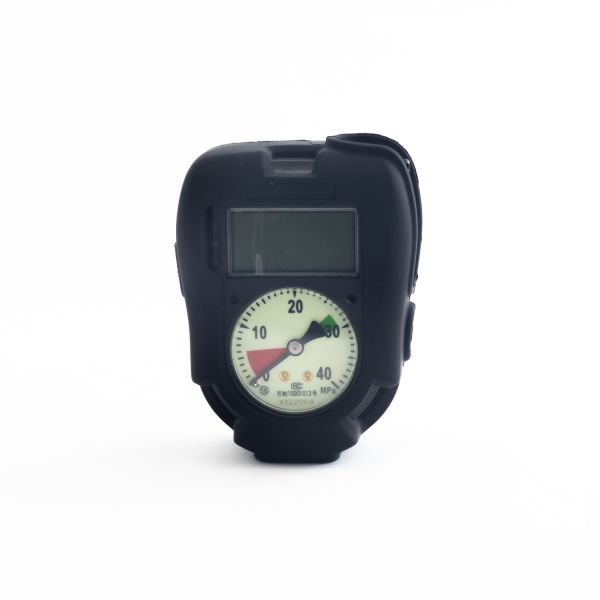

3. KL99-A03 Warning Whistle and Pressure Gauge
  • Pressure gauge scale range: 0-40 MPa
  • Fluorescent dial plate for reading in darkness
  • Shock-resistant, waterproof, quakeproof, and dustproof construction
  • Alarming device sounds at ≥90 dB when cylinder pressure drops below 5.5±0.5 MPa
4. KL99-A04 Backpack
  • Ergonomically designed back plate conforming to human body shape
  • Injection molded from flame-resistant engineering plastics and carbon fiber
  • Lightweight (0.68kg) with high intensity and shock-resistance
  • Nomex or KEVLAR shoulder straps and waist belt
  • Tear-resistant and flame-retardant materials
  • Easy pressure reducer replacement
5. KL99-A05 Air Supply Valve
  • Compact size with 360° insertion capability
  • Gas supply above 500 L/min
  • Streamlined design that doesn't obstruct view
  • Low resistance manual close valve
  • Comfortable respiration with small breathing resistance
  • Easy operation and use
  • Safe air supply with manual force air supply button
  • Flame-resistant high-intensity engineering plastics outer shell
6. KL99-A06 Decompressor
  • 15-year design life with advanced technology
  • Maximum gas supply above 1000 L/min
  • Compatible with single or double cylinders
  • Connected with medium pressure hose to supply air to demand valve
  • High pressure hose connected with pressure indicator
7. Gas Cylinder and Cylinder Valve
  • Y-shape design with safe self-lock device
  • Prevents inadvertent closure due to hard knock or incorrect operation
  • Safety diaphragm with explosion pressure at 37-45 MPa
  • Prevents cylinder deformation and explosion due to inner high pressure
8. Multifunctional Fast Join Valve
  • Stainless steel construction for strength and durability
  • Traceless design for safety and reliability
9. Configuration Options

Available in 2L, 3L, 4.7L, 6.8L, and 9L cylinder configurations

60Min 6.8L CE Certified Self-Contained Breathing Apparatus SCBA for Firefighting and Emergency Rescue
Packaging
60Min 6.8L CE Certified Self-Contained Breathing Apparatus SCBA for Firefighting and Emergency Rescue
Company Information
60Min 6.8L CE Certified Self-Contained Breathing Apparatus SCBA for Firefighting and Emergency Rescue
  • Nanjing Kelisaike Safety Equipment Co., Ltd. founded in 2004
  • Three subsidiaries in Beijing, Xi'an and Xinjiang province
  • Over 30 domestic sales service centers
  • Standard products include K60 series portable single gas detectors, K60-IV series multi gas detectors, K800 series fixed gas transmitters, K500 series wall-mounted gas detectors, K1000 series gas detector control panel units, KL99 series air breathing apparatuses
  • Rich experience in OEM service with professional design and manufacturing of customized products
Product Catalogue
60Min 6.8L CE Certified Self-Contained Breathing Apparatus SCBA for Firefighting and Emergency Rescue
Our Advantages
60Min 6.8L CE Certified Self-Contained Breathing Apparatus SCBA for Firefighting and Emergency Rescue
Related Certificates
60Min 6.8L CE Certified Self-Contained Breathing Apparatus SCBA for Firefighting and Emergency Rescue
Our Services
  • 1-year warranty and life-long maintenance for all products
  • All inquiries replied within 24 hours
  • Technical support from professional engineers specialized in gas monitoring
  • OEM and ODM services available
  • Factory located in Nanjing, 1 hour by high-speed train from Shanghai
  • All products well tested and packed before shipment with certificate of inspection
Why Choose KELISAIKE
  • Mutual Benefit: Factory-direct competitive pricing
  • Professional Engineers: 20+ years experience with professional engineering team
  • Customization: Strong R&D team for custom product development
  • Free OEM Service: Silk-printing your logo (≥100PCS) and custom color box design (≥500PCS)
  • Mix Orders: Accept mixed orders with different models and small quantities
  • After-Service: 1-year warranty with free replacement for inferior-quality products
Frequently Asked Questions
Q: Are you provide customization?
A: Of course. It includes gas type, gas detection range, gas alarm point etc. Please contact us about the detailed specifications.
Q: Could I order one piece sample for the quality test? And do you charge for the samples?
A: Sure. We recommend to check the sample before order. According to our company policy, we just charge the samples based on EXW price.
Q: If I order big quantity, what's the good price?
A: Please send the details enquiry to us, such as the Item Number, Quantity for each item, Quality request, Logo, Payment Terms, Transport method, Discharge place etc. We will make the accurate quotation to you as soon as possible.
Q: How about the Delivery time?
A: Samples will be prepared within 15 Days after 100% T/T in advance payment. QTY order will be delivered in 30 days.
Q: May I have your catalogue and price list for trial order in MOQ quantity?
A: All our products were shown on Made in China, please have a detailed looking and choose the interested models in our site. Or you can send email to us.
