ISO Certified Hot Air Box Sintering And Debinding Furnace Heat Treatment
ISO Certified Hot Air Box Sintering And Debinding Furnace Heat Treatment
ISO Certified Hot Air Box Sintering And Debinding Furnace Heat Treatment
ISO Certified Hot Air Box Sintering And Debinding Furnace Heat Treatment
ISO Certified Hot Air Box Sintering And Debinding Furnace Heat Treatment
ISO Certified Hot Air Box Sintering And Debinding Furnace Heat Treatment
ISO Certified Hot Air Box Sintering And Debinding Furnace Heat Treatment
ISO Certified Hot Air Box Sintering And Debinding Furnace Heat Treatment
ISO Certified Hot Air Box Sintering And Debinding Furnace Heat Treatment
ISO Certified Hot Air Box Sintering And Debinding Furnace Heat Treatment
Specifications
Place of Origin :
China
Brand Name :
Chitherm
MOQ :
1
Price :
Negotiable
Packaging Details :
Customized
Delivery Time :
Customized
Payment Terms :
Customized
Supply Ability :
50 Sets/Year
Model Number :
Hrf230-05
Range of Applications :
Industrial
Type :
Electric Holding Furnace
Usage :
Steel Molding
Fuel :
Electric
Atmosphere :
Air
Effective Chamber Dimensions :
550*660*640mm(W*D*H)
Transport Package :
Wooden Packaging
Specification :
800*1100*1800mm(W*H*D)
Trademark :
Chitherm
Origin :
China
HS Code :
8514101000
Customization :
Available
Certification :
ISO
Place Style :
Vertical
Description

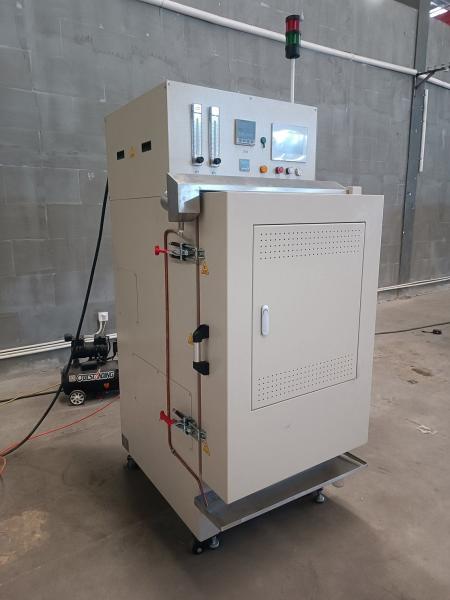

800*1100*1800mm W*H*D Dimensions and ISO Certified Chitherm Hrf230-05 Hot Air Box Furnace for Heat Treatment Processes

1. Application:
Widely used in the debinding processes of LTCC and MLCC manufacturing.

2. Technical Specification:
  1. Rated temperature: 400°C.
  2. Maximum temperature: 450°C.
  3. Effective dimensions: 550*660*640mm (W*H*D).
  4. Temperature uniformity: ±3°C.
  5. Temperature stability: ±1°C.
  6. Sintering atmosphere: Air.
  7. Heating elements: Stainless steel heaters.
  8. Compact design with small footprint.
  9. The chamber adopts a 12-grid structure forming 12 airflow channels. Airflow volume is adjusted by controlling the opening angle of air outlet panels in each channel, achieving high temperature uniformity.
  10. Tested temperature uniformity within ±3°C.
ISO Certified Hot Air Box Sintering And Debinding Furnace Heat Treatment

3. Delivery List
Item Note Qty.
Basic Components Furnace 1 unit
inspection certificate Certificate of major outsourced components 1 SET
Technical Documents Instructions, technical documents of the major outsourced parts, etc 1 SET
Key Components Heating Element Stainless steel heater 1 SET
Touch Screen 1 SET
Temperature Controller 1 SET
Blower 1 PC
Circulation Fan 1 SET
Spare Parts SSR 1 pcs
Heating Element Stainless steel heater 1 PC


4. Facility Requirements
  1. Environmental Conditions: temperature: 0~40ºC, humidity ≤ 80%RH, no corrosive gas, no strong airflow disturbance;
  2. Atmosphere Conditions: dry, clean, oil-free compressed air, working pressure of 0.2- 0.4MPa, gas consumption of 10 -20m3/h;
  3. Ventilation System: non-contact access to the user pumping system, pumping capacity is greater than 20 m3/h
  4. Ground Requirements: horizontal, no obvious vibration, load-bearing> 300 Kg/m2;
  5. Power Condition(TBD): capacity > 16kVA, 3-phases 5-lines, voltage 220/380V, frequency 50Hz. Fire line: yellow, green, red, Zero line: blue, Ground line: yellow-green;
  6. Installation Site: 1000mm*1500mm*3000mm(W*D*H), with an installation area greater than 1.5m2.
