NAV4005 25x47x22mm full-complement needle roller bearings
NAV4005 25x47x22mm full-complement needle roller bearings
Specifications
Payment Terms :
T/T, Western Union,PayPal
Application :
Printing machine
Seal Type :
Open
Shipping Ways :
DHL / FedEx / UPS / TNT
Packaging Details :
Standard packing
Outer Diameter(OD) :
47mm
Precision :
P0/P6/P5 available
Model Number :
NAV4005
Cage Material :
No cage
Payment Ways :
T/T,Western Union,PayPal,Credit Card,Debit Card
HS Code :
8482500090
Stock :
69 Pcs.
Delivery Time :
3~4 workdays
Weight :
***Kg
Shipping Period :
6~10 workdays(Except remote areas or countries)
Width(B/T) :
22mm
MOQ :
1
Price :
10~50USD/pcs
Bearing Series :
Needle roller bearing
Full Model Number :
NAV4005
Bore Diamete3r(ID) :
25mm
Material :
GCr15 chrome steel
Brand Name :
Neutral / As Required
Rolling Elements :
Rollers
Feature :
Full-complement needle roller bearings
Description
MUFA TEC Bearings provide NAV4005 25x47x22mm full-complement needle roller bearings. Pls feel free to contact us at Email alicewong@mufatec.com or at WhatsApp +86 13771165326,if you need more details for NAV4005.

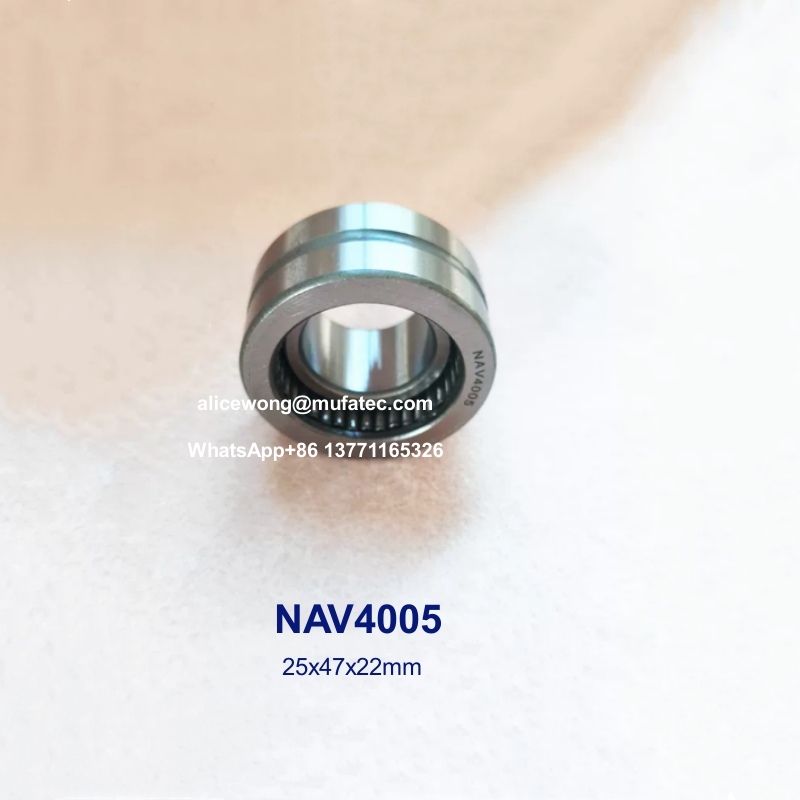

Photos of NAV4005:

NAV4005 25x47x22mm full-complement needle roller bearings

Product Description

The NAV4005 is a full-complement needle roller bearing measuring 25mm (bore) x 47mm (OD) x 22mm (width). It features a machined outer ring with integral flanges and is supplied with an inner ring, making it suitable for applications where the shaft cannot be directly used as a raceway.

The full-complement design (no cage) maximizes the number of rollers, providing high radial load capacity and rigidity within a compact cross-section. This bearing is commonly used in printing machinery and other industrial equipment requiring high load support in restricted radial spaces.

Key Specifications:

Attribute Value
Bearing Type Full Complement Needle Roller Bearing
Series NAV Series (with Inner Ring)
Bore Diameter (d) 25 mm
Outer Diameter (D) 47 mm
Width (C) 22 mm
Cage None (Full Complement)
Seal Type Open
Material GCr15 Chrome Steel
Weight Approx. 195 g
Dynamic Load Rating (Cr) 33,800 N
Static Load Rating (Cor) 70,800 N
Limiting Speed (Oil) 3,700 rpm
Application Printing Machine
