F-809569.02 automotive differential bearings 53.975x88.9x19.05mm
F-809569.02 automotive differential bearings 53.975x88.9x19.05mm
Specifications
HS Code :
8482500090
Bore Diamete3r(ID) :
53.975mm
Price :
10~50USD/pcs
Application :
Automotive transmission bearings
Payment Ways :
T/T,Western Union,PayPal,Credit Card,Debit Card
Model Number :
F-809569.02
Outer Diameter(OD) :
88.9mm
Seal Type :
Open
Delivery Time :
3~4 workdays
Payment Terms :
T/T, Western Union,PayPal
Weight :
***Kg
Material :
GCr15 chrome steel
Stock :
64 Pcs.
Packaging Details :
Standard packing
Width(B/T) :
19.05mm
Bearing Series :
Tapered roller bearing
Precision :
P0/P6/P5 available
Rolling Elements :
Rollers
Shipping Period :
6~10 workdays(Except remote areas or countries)
Full Model Number :
F-809569.02
Shipping Ways :
DHL / FedEx / UPS / TNT
Brand Name :
Neutral / As Required
Cage Material :
Steel cage
Feature :
Imperial taper roller bearings
MOQ :
1
Description
MUFA TEC Bearings provide F-809569.02 automotive differential bearings 53.975x88.9x19.05mm. Pls feel free to contact us at Email alicewong@mufatec.com or at WhatsApp +86 13771165326,if you need more details for F-809569.02.

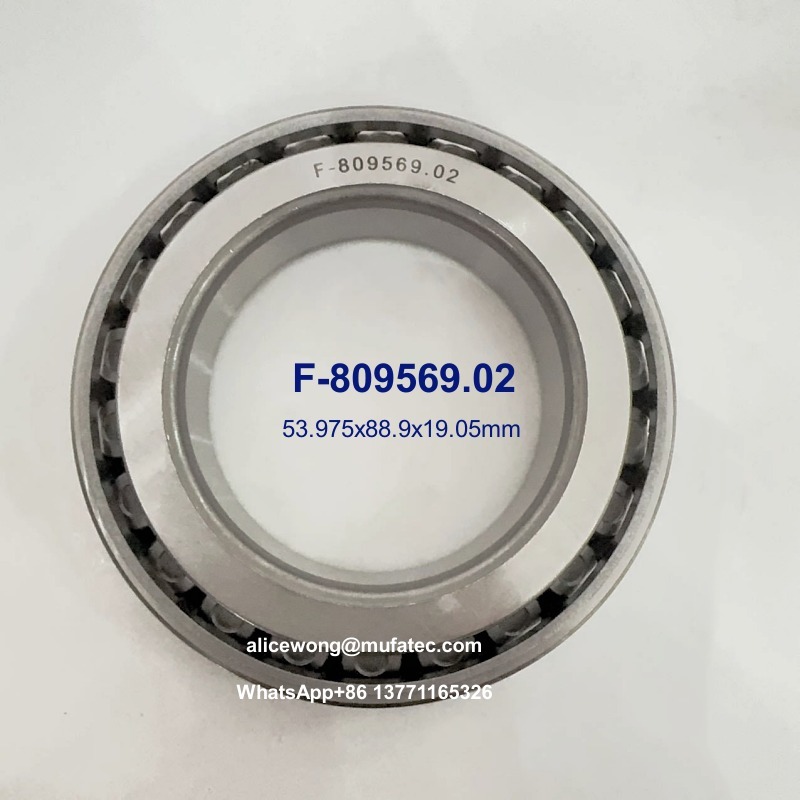

Photos of F-809569.02:

F-809569.02 automotive differential bearings 53.975x88.9x19.05mm

Product Description

The F‑809569.02 is a precision imperial tapered roller bearing specifically engineered for automotive differential applications. With an inch‑based bore diameter of 53.975 mm (2.125″), an outer diameter of 88.9 mm (3.5″), and a width of 19.05 mm (0.75″), this bearing is designed to meet the exacting dimensional requirements of many North American and other imperial‑standard drivetrain systems.

Manufactured from premium GCr15 chrome steel (equivalent to AISI 52100 / 100Cr6), it delivers outstanding hardness, wear resistance, and fatigue strength, ensuring reliable performance under the high‑torque, high‑shock conditions typical of differential pinion and side gear applications. The bearing features a robust steel cage that maintains precise roller spacing and stability at elevated operating temperatures, while the open‑type design allows flexible lubrication with differential oil, facilitating efficient heat dissipation and reducing friction.

Designed to accommodate combined radial and axial loads, the tapered roller geometry ensures smooth power transmission and extended service life. Available in P0, P6, and P5 precision grades, the F‑809569.02 can be tailored to meet both OEM and aftermarket requirements for passenger cars, trucks, and SUVs.

Technical Specifications

Parameter Specification
Full Model Number F‑809569.02
Bearing Series Tapered Roller Bearing (Imperial Dimensions)
Application Automotive Differentials / Transmissions
Bore Diameter (ID) 53.975 mm
Outer Diameter (OD) 88.9 mm
Width (B/T) 19.05 mm
Material GCr15 Chrome Steel
Cage Material Steel
Seal Type Open
Rolling Elements Rollers
Precision P0 / P6 / P5 available
Weight Available upon request
HS Code 8482500090

Applications

Specifically designed for differential assemblies (pinion and side gear positions), this bearing is also suitable for other automotive drivetrain components such as transfer cases and axle hubs where imperial dimensions are required. It performs reliably under varying speed and load conditions, providing high rigidity and long‑term durability.

Logistics & Support

Item Details
Stock Availability 64 Pcs.
Lead Time 3~4 workdays against payment
Shipping Methods DHL / FedEx / UPS / TNT
Shipping Period 6~10 workdays (except remote areas)
Payment Terms T/T, Western Union, PayPal, Credit Card, Debit Card

Contacts:
Company WUXI MUFA TECHNOLOGY CO.,LTD.
Sales Alice Wong
Email alicewong@mufatec.com
WhatsApp +86 13771165326
WeChat mufatec-bearings
