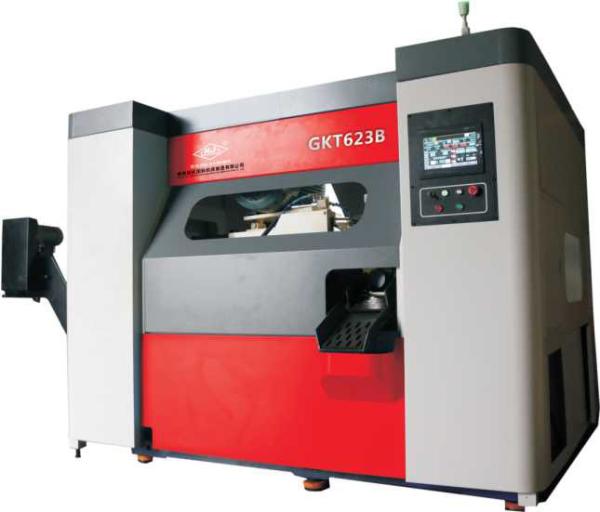

Electric 7.5kw 150r/Min Automatic Circular Saw Machine With Bar Feeder
Electric 7.5kw 150r/Min Automatic Circular Saw Machine With Bar Feeder
Electric 7.5kw 150r/Min Automatic Circular Saw Machine With Bar Feeder
Electric 7.5kw 150r/Min Automatic Circular Saw Machine With Bar Feeder
Specifications
Brand Name :
HJ
Model Number :
GKT623B
Certification :
ISO9001
Place of Origin :
China
MOQ :
1 Set
Price :
Negotiable
Payment Terms :
L/C, T/T
Delivery Time :
1-2 months
Packaging Details :
Plywood case or pallet
Condition :
New
Usage :
metal cutting
Style :
Circular saw
Type :
CNC automatic circular saw machine
Rated power :
7.5KW
Color :
Red
Keyword :
CNC automatic cutting saw machine
Description

HJ Carbid High Speed Circulae Cutting Machine With Bar Feeder

Product application

• GKT623B CNC carbide circular sawing machine is mainly used for cutting ferrous or non-ferrous metal materials. Using carbide or ceramic circular saw blades as cutting tools and controlled by numerical control system, this machine can realize the automatic cycle of taking materials from the storage rack and sending to the sawing completion (including the process of material head and tail, the collection of finished work pieces, etc.).•.

Widely used in Building Material Shops, Machinery Repair Shops, Manufacturing Plant, Farms, Construction Works , Energy & Mining, Metal Processing Factory.

It has the characteristics of narrow incision, high cutting accuracy, high production efficiency, low comprehensive cost, safety and environmental protection.

Parameters unit Pecifications
GKT623B
Saw blade specifications mm Φ285 x2. 0
Cutting range mm 15-65 15-55
Maximum feeding length mm 600 + / - 0.05
Saw blade rotation speed rpm 30-150.
Main motor kw 7.5
The hydraulic motor kw 1.5
Feed drive kw 1.5 Servo motor + ball screw AC
Cutting drive kW 1.5 Servo motor + ball screw AC
Cooling Oil mist cooling
Hydraulic oil capacity L 100L 46#
The compressed air bar 4 ~ 6
Sawing machine size mm L=1670 W=1910 H=1860
Net weight kg 1500
