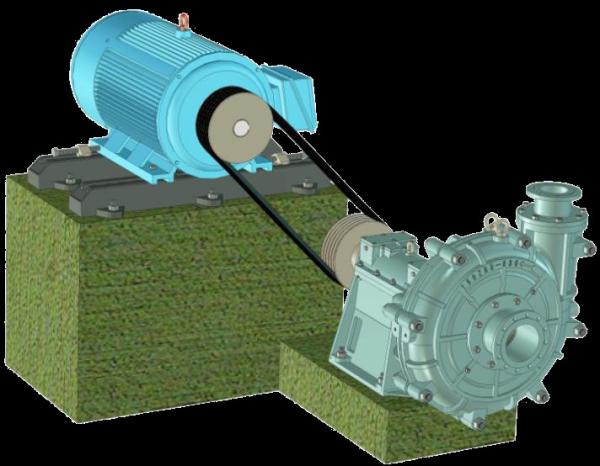

80ZBD-400 Slag Slurry Pump

• The slurry pump is of good hydraulic performance, high efficiency and low abrasion and corrosion.
• Besides the wide passage, non-clogging and anti-corrosion of vapor is also superb.

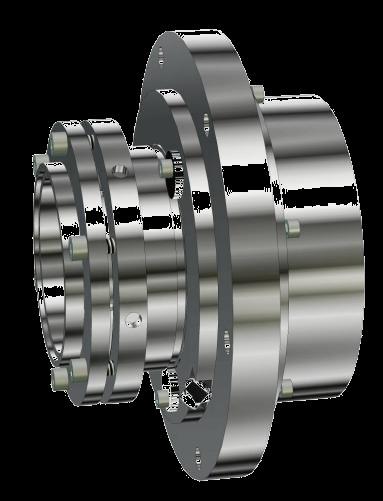

• The impeller seal combined with packing seal and metric seal ensures no-leakage of slurry.
• The reliable design grants the tremendous improvement in MTBF.
• The adoption of metric bearing with oil lubrication, reasonable structure of cooling system with oil lubrication guarantees the working of bearing in the optimal temperature.
• The suction and discharge flange of the pump is processed against the current standard in china to facilitate the fixation in pipeline.

• Clear Water Performance Parameter of ZBG and ZBD Series Slurry Pumps At The Same Speed

• Type	Speed n r/min	Capacity Q m3/h	Head H m	Eff. n %	Matching Motor Power kw	Speed n r/min	Capacity Q m3/h	Head H m	Eff. n %	Matching Motor Power kw
  		99.0	55.2	56.3			65.6	24.2	53.6
  80ZBD-400	1480	165.0	50.0	67.0	45-55	980	109.3	21.9	63.8	15 - 18.5
  		198.0	46.2	67.6			131.1	20.3	64.4
  		92.9	48.6	55.9			61.5	21.3	53.2
  80ZBD-400A	1480	154.8	44.0	66.5	37-45	980	102.5	19.3	63.3	11-15
  		185.7	40.7	67.1			123.0	17.8	63.9
  		86.3	42.0	55.4			57.1	18.4	52.7
  80ZBD-400B	1480	143.8	38.0	65.9	30-37	980	95.2	16.7	62.7	11
  		172.6	35.1	66.5			114.3	15.4	63.3
