Hydraulic 110r/Min Automatic Circular Saw Machine 1760mm High
Hydraulic 110r/Min Automatic Circular Saw Machine 1760mm High
Specifications
Brand Name :
HJ
Model Number :
GKT624B
Certification :
ISO9001
Place of Origin :
China
MOQ :
1 Set
Price :
Negotiable
Payment Terms :
L/C, T/T
Delivery Time :
1-2 months
Packaging Details :
Plywood case or pallet
Description

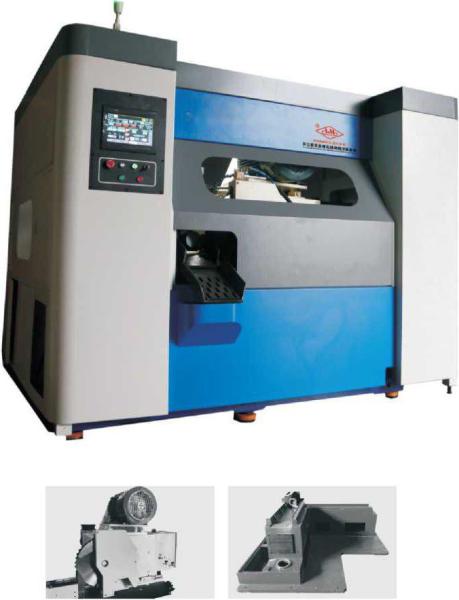

CNC Carbide Circular cutting Saw machine

GKT624B CNC carbide circular saw has the characteristics of narrow incision, high cutting accuracy, high production efficiency, low comprehensive cost, safety and environmental protection, and high degree of automation.

Parameters unit Specifications
GKT624B
Saw blade specifications mm Φ460 x2. 7
Cutting range mm Round bar 050 -150 squar bar 50 -110
Maximum feeding length mm 600 + / - 0.05
Saw blade rotation speed rpm 20 ~ 120
Main motor kw 11
The hydraulic motor kw 2.2
Feed drive kw 2.0 servo motor + ball screw AC
Cutting drive kw 2.0 servo motor + ball screw AC
Cooling Lubricating cooling
Hydraulic oil capacity L 100L 46#
The compressed air bar 4 ~ 6
Sawi machine size mm L=2100 W=2060 H=1760
Net weight kg 3000
