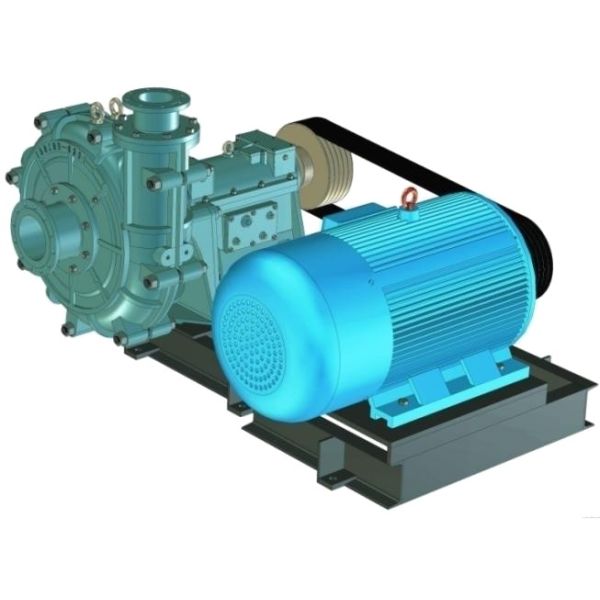

185kw 1480rpm Sewage Slurry Mud Pump High Viscosity 100ZBG(P)-500
185kw 1480rpm Sewage Slurry Mud Pump High Viscosity 100ZBG(P)-500
185kw 1480rpm Sewage Slurry Mud Pump High Viscosity 100ZBG(P)-500
185kw 1480rpm Sewage Slurry Mud Pump High Viscosity 100ZBG(P)-500
Specifications
Brand Name :
TM
Model Number :
100ZBG(P)-500
Certification :
ISO9001:2000
Place of Origin :
China
MOQ :
1 Set
Price :
Negotiable
Payment Terms :
L/C, T/T
Supply Ability :
200 sets per month
Delivery Time :
1-2 months
Packaging Details :
Standard export packing
Product name :
Sewage Slurry Mud Pump
Application :
Sewage,Submersible
Pressure :
High Pressure
Standard or nonstandard :
Standard
Warranty :
12 Months
Material :
Cast Iron
Description

100ZBG(P)-500 Slag Slurry Pump

  • The slurry pump is of good hydraulic performance, high efficiency and low abrasion and corrosion.
  • Besides the wide passage, non-clogging and anti-corrosion of vapor is also superb.

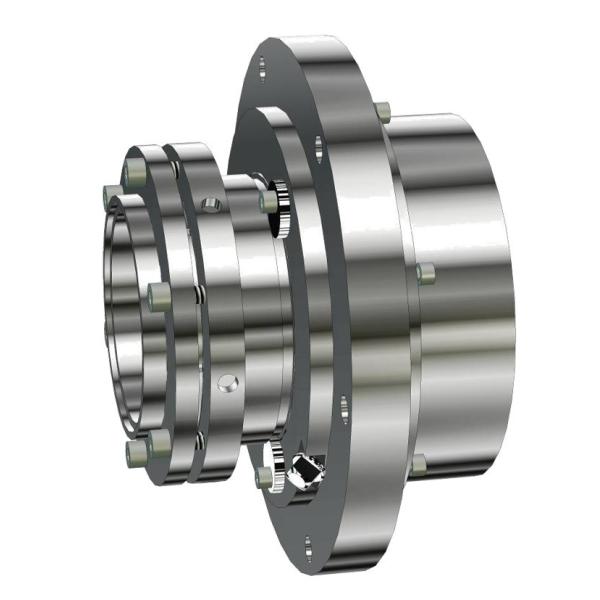

  • The impeller seal combined with packing seal and metric seal ensures no-leakage of slurry.
  • The reliable design grants the tremendous improvement in MTBF.
  • The adoption of metric bearing with oil lubrication, reasonable structure of cooling system with oil lubrication guarantees the working of bearing in the optimal temperature.
  • The suction and discharge flange of the pump is processed against the current standard in china to facilitate the fixation in pipeline.

Clear Water Performance Parameter of ZBG and ZBD Series Slurry Pumps

Type

Speed

n

r/min

Capacity

Q

m3/h

Head

H

m

Eff.

n

%

Matching Motor Power

kw

Speed

n

r/min

Capacity

Q

m3/h

Head

H

m

Eff.

n

%

Matching Motor Power

kw

100ZBG(P)-5001480300.090.068.0132 -185980198.639.564.845-55
360.086.170.4 238.437.867.1
171.885.855.4 113.837.652.8
100ZBG(P)-500A1480286.482.067.6110~160980189.636.064.537-45
343.678.470.0 227.534.466.8
163.277.555.1 108.134.052.5
100ZBG(P)-500B1480272.074.067.3110~132980180.132.464.137-45
326.470.869.6 216.231.066.4
154.169.154.7 102.130.352.1
100ZBG(P)-500C1480256.966.066.890 -110980170.128.963.730-37
308.363.169.2 204.127.765.9
144.560.754.3 95.726.651.7
100ZBG(P)-500D1480240.858.066.375-90980159.525.463.222-30
289.055.568.7 191.424.365.4




FAQ

  1. Q: What’ the MOQ?

A: Trial sample is ok.

  1. Q: Are you factory or trading company?

A: We are a manufacturer.

  1. Q: Can you accept to use our logo?

A: Yes, we can do OEM for you.

  1. Q: How can I get the pump?

A: Usually we suggest express for samples, if the volume reaches 1m3,the seaway will be better.

  1. Q: What’s the warranty period?

A: 1 year
