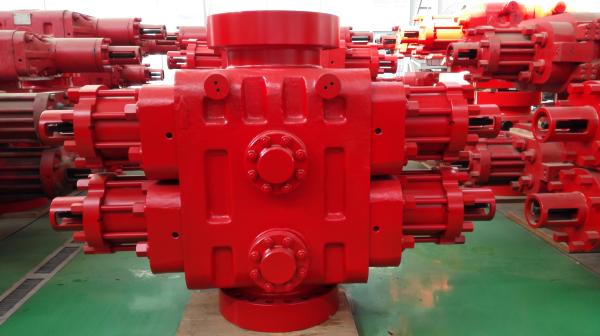

7 1/16 Inch Dual Ram Blow Out Preventer Bop In Oil Drilling
7 1/16 Inch Dual Ram Blow Out Preventer Bop In Oil Drilling
Specifications
Brand Name :
Hebei Pantu
Model Number :
2FZ18-70
Certification :
API 16A
Place of Origin :
China
MOQ :
1 set
Price :
USD 30000 set
Payment Terms :
T/T
Supply Ability :
5 sets per 3 months
Delivery Time :
7 work days
Packaging Details :
Iron Case
Name :
Dual Ram Blow Out Preventer Bop
Size :
7 1/16"
Pressure :
70 mpa
Closing Ratio :
10.6
Gals to Close (1 set) :
133
Usage :
Oil Drilling
Description

7 1/16 Inch Dual Ram Blow Out Preventer Bop In Oil Drilling

A blowout preventer (BOP) is a crucial safety device used in oil drilling. It is installed at the wellhead casing head and is responsible for controlling high-pressure oil, gas, and water blowouts. When the pressure of oil and gas is extremely high, the blowout preventer (BOP) can close the wellhead. The BOP contains four valves, which can be activated by injecting mud into the borehole. This increases the pressure of the drilling fluid column, suppressing high-pressure oil and gas that would otherwise discharge from the drill pipe and maintaining a stable heavy mud pressure.

Dual Ram Blow Out Preventer Bop Paremeter

Model

Gals to Open

(1 set)

Gals to Close

(1 set)

 Closing Ratio Assembly Dimension (in) Approx Weight(lb)
Length (L) Width (W) Height (H)
Flg×Flg Std×Std Flg×Std Flg×Flg Std×Std Flg×Std
4 1/16″-20,000psi(Single RS-FS) 1.10 1.13 10.1 70.71 26.97 33.27 18.11 23.82 3491 3147 3319
4 1/16″-20,000psi(Double RS-FS) 1.10 1.13 10.1 70.71 26.97 46.30 31.14 36.85 5742 5398 5570
7 1/16″-20,000psi(Single RS-FS) 7.05 7.26 13.7 112.05 38.27 48.03 24.02 35.83 10891 8951 9921
7 1/16″-20,000psi(Double RS-FS) 7.05 7.26 13.7 112.05 38.27 70.87 47.24 59.06 19826 17886 18812
11″-20,000psi(Single RS-FS) 42.90 44.8 13.2 137.40 47.87 62.60 32.68 47.64 24030 19335 21682
11″-20,000psi(Double RS-FS) 42.9 44.8 13.2 137.40 47.87 90.55 60.63 75.59 41987 37291 39639
18 3/4″-20,000psi(Double RS-FS) 122 133 10.6 183.46 66.69 / / 94.13 / / 87083

Dual Ram Blow Out Preventer Bop Feature

1) Shape Generally, the BOP body is similar to a square, in the middle there is vertical bore through which the pipes

can pass and the ram cavities in which the ram move in the horizontal direction.
2)Connection types The three connection types are studded, flange, clamped top and bottom connections. The sizes of flanges, bolts, clamps and ring grooves all conform to API standards.
