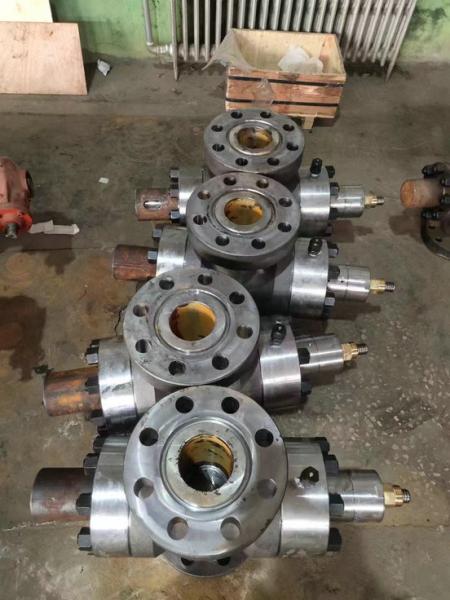

16 Inch Kill Manifold 15000psi Stainless Steel Oil And Gas Manifold
16 Inch Kill Manifold 15000psi Stainless Steel Oil And Gas Manifold
16 Inch Kill Manifold 15000psi Stainless Steel Oil And Gas Manifold
16 Inch Kill Manifold 15000psi Stainless Steel Oil And Gas Manifold
Specifications
Brand Name :
Hebei Pantu
Model Number :
YG105
Certification :
API 16C
Place of Origin :
China
MOQ :
1 set
Price :
USD 50000-100000 per set
Payment Terms :
T/T
Supply Ability :
5 sets per 3 months
Delivery Time :
7 work days
Packaging Details :
Iron Case
Name :
Choke Manifold
Model :
YG105
Bore size :
4 1/16 inch
Pressure :
15000psi
Application :
Oil / Gas Well
Standard :
API 16C
Description

4 1/16 Inch 15000psi Choke Manifold In Oil / Gas Well

Main parameters

One end of the device connects with the side flange of the BOP spool. When BOP closes, it can control the finite pressure from the casing by adjusting the choke valve's opening, so balanced drilling can work under minimum pressure difference.

Choke Manifold Parameter

Type Working pressure Main bore dia By-pass dia. Remarks
(psi) On.) (In.)
YG140 20000 4 1/16" 3 1/16" 2 9/16" 2 1/16" 3 1/16" 2 1/16" 2 9/16" Different types of combinations can be provided according to requirements
YG105 15000 4 1/16" 3 1/16" 2 9/16" 2 1/16" 3 1/16" 2 9/16" 2 1/16"
YG70 10000 4 1/16" 3 1/16" 2 9/16" 2 1/16" 4 1/16" 3 1/16" 2 9/16" 2 1/16"
YG35 5000 4 1/16" 3 1/8" 2 9/16" 2 1/16" 4 1/16" 3 1/8" 2 9/16" 2 1/16"
YG21 3000 4 1/16" 3 1/8" 2 9/16" 2 1/16" 4 1/16" 3 1/8" 2 9/16" 2 1/16"

Configuration


The choke manifold consists of choke valves, gate valves, line pipes, fittings, pressure gauges, and other components.

Choke Manifold Working Principles


When the pressure inside the well rises, opening/closing the choke valves(including manual chokes, hydraulic chokes, and positive chokes)on the choke manifold can allow the release of the fluid inside the well to control casing pressure, which can be directly blown out through the gate valve if the casing pressure is quite high.
4. Pressure Ratings
The kill manifold is available in pressure ratings of 2000psi,3000psi,5000psi,10000psi, and 15000psi, and also can be available upon customer request.

Operating Instructions


(1) The working pressure of all components on the choke manifold shall be compatible with that of the BOP stack used.
(2) The choke manifold shall be installed at a place where the operator can reach it easily. The pressure test must be performed before installation and the seat test pressure shall be equal to the rated working pressure.
(3) The line pipe shall be level and straight as much as it could. In case of the turn of the line pipe, the 120-degree steel bent pipe shall be used. The bore of the line pipe shall be large enough.
(4) The pressure gauge must be installed.
(5) In winter, the choke manifold can work under low-temperature conditions.
