16 3/4 Inch 5000 Psi Drilling Spool In Bop Wellhead Adapter Flange
16 3/4 Inch 5000 Psi Drilling Spool In Bop Wellhead Adapter Flange
Specifications
Brand Name :
Hebei Pantu
Model Number :
16-3/4"
Certification :
API 6A
Place of Origin :
China
MOQ :
1 set
Price :
USD 30000 set
Payment Terms :
T/T
Supply Ability :
5 sets per 3 months
Delivery Time :
7 work days
Packaging Details :
Iron Case
Name :
Drilling Spool In Bop
Size :
16-3/4"
Rated Working Pressure :
5000 Psi
Rubber :
Tapered
Type :
Wellhead Adapter Flange
Use :
Bop
Description

16 3/4 Inch 5000 Psi Drilling Spool In Bop Wellhead Adapter Flange

Drilling Spool In Bop all sizes and pressure ratings suitable for Well Head extension, B.O.P.

spacing, and Choke, Kill, and Production Manifold applications. Spacer Spools usually have the

same nominal end connections. Spacer Spool identification consists of naming each end connection

and the overall length (outside of end connection face to the outside of end connection face), e.g.

Drilling Spool In Bop Parameters

Top Flange Bottom Flange
Size (inches) Working Pressure (psi) Size (inches) Working Pressure (psi)
11" 2000 , 3000, 5000 11" 2000, 3000 , 5000
13-5/8" 2000 11" 2000 , 3000, 5000
13-5/8" 2000, 3000 , 5000
3000 11" 3000 , 5000
13-5/8" 3000 , 5000
5000 11" 5000,10000,15000
13-5/8" 5000,10000,15000
10000 11" 5000,10000,15000
13-5/8" 5000,10000,15000
16-3/4" 2000 11" 2000 , 3000
13-5/8" 2000 , 3000 , 5000
3000 11" 3000 , 5000
13-5/8" 3000 , 5000
5000 11" 5000,10000
13-5/8" 5000,10000
10000 11" 10000
13-5/8" 10000
21-1/4" 2000 13-5/8" 2000 , 3000 , 5000
16-3/4" 2000 , 3000
20-3/4" 3000 13-5/8" 3000 , 5000,10000
20-3/4" 3000
21-1/4" 5000
21-1/4" 5000 13-5/8" 5000,10000
16-3/4" 5000
16-3/4" 10000

Drilling Spool In Bop FEATURES

1) Made from high-strength alloy and processed especially with heating treatment.
2) Designed and manufactured concerning API 6A technical specifications.
3) Top & bottom connections and outlets per customer design requirements by either flanged or clamp connections.
4) All steel tanks are welded with stainless steel for long-term anti-corrosion.
5) Used for high-pressure drilling, in conjunction with a flat valve for preventing blowout and connecting BOP.

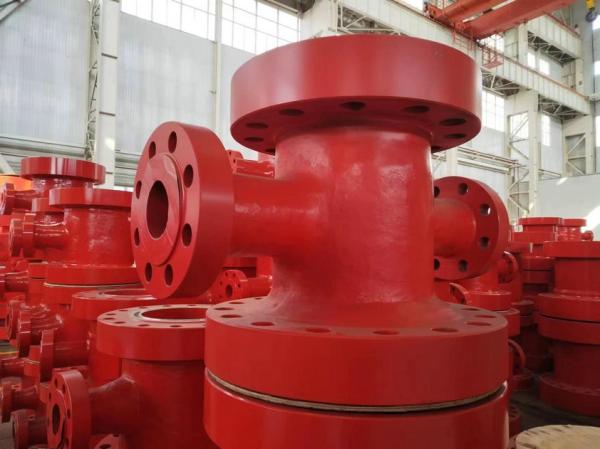

Drilling Spool In Bop Pictures

16 3/4 Inch 5000 Psi Drilling Spool In Bop Wellhead Adapter Flange
