13 Inch Mud Cross Drilling Spool 2000 Psi Casing Spool Wellhead
13 Inch Mud Cross Drilling Spool 2000 Psi Casing Spool Wellhead
Specifications
Brand Name :
Hebei Pantu
Model Number :
Casing Head Spool
Certification :
API 6A
Place of Origin :
China
MOQ :
1 set
Price :
USD 30000 set
Payment Terms :
T/T
Supply Ability :
5 sets per 3 months
Delivery Time :
7 work days
Packaging Details :
Iron Case
Name :
Casing Spool Wellhead
Size :
13 5/8inch
Rated Working Pressure :
2000 Psi
Rubber :
Tapered
Type :
Wellhead Mud Cross
Use :
Well Drilling
Description

API Standard 6A Casing Head Spool 13 5/8" 2000 Psi Mud Cross

Casing Spool Wellhead Use the high-quality alloy steel with special heat treatment to improve its anti-corrosive capability of H2S.
The seal's surface is welded with stainless steel to improve the anti-corrosive capability and lengthen its lifespan.
The strength of the body is strictly inspected according to the API Spec 16A before delivery to ensure safely.
Casing Spool Wellhead is applicable to drilling works in high-pressure oilfields.
Casing Spool Wellhead can throttle and control blowout if it connects with relevant valves and pipelines. Meanwhile, it links the blow-out preventer and casing head.

Casing Head Spool Parameters

Top Flange Bottom Flange
Size (inches) Working Pressure (psi) Size (inches) Working Pressure (psi)
11" 2000 , 3000, 5000 11" 2000, 3000 , 5000
13-5/8" 2000 11" 2000 , 3000, 5000
13-5/8" 2000, 3000 , 5000
3000 11" 3000 , 5000
13-5/8" 3000 , 5000
5000 11" 5000,10000,15000
13-5/8" 5000,10000,15000
10000 11" 5000,10000,15000
13-5/8" 5000,10000,15000
16-3/4" 2000 11" 2000 , 3000
13-5/8" 2000 , 3000 , 5000
3000 11" 3000 , 5000
13-5/8" 3000 , 5000
5000 11" 5000,10000
13-5/8" 5000,10000
10000 11" 10000
13-5/8" 10000
21-1/4" 2000 13-5/8" 2000 , 3000 , 5000
16-3/4" 2000 , 3000
20-3/4" 3000 13-5/8" 3000 , 5000,10000
20-3/4" 3000
21-1/4" 5000
21-1/4" 5000 13-5/8" 5000,10000
16-3/4" 5000
16-3/4" 10000

Casing Head Spool FEATURES

1) Made from high-strength alloy and processed especially with heating treatment.
2) Designed and manufactured concerning API 6A technical specifications.
3) Top & bottom connections and outlets per customer design requirements by either flanged or clamp connections.
4) All steel tanks are welded with stainless steel for long-term anti-corrosion.
5) Used for high-pressure drilling, in conjunction with a flat valve for preventing blowout and connecting BOP.

Pictures

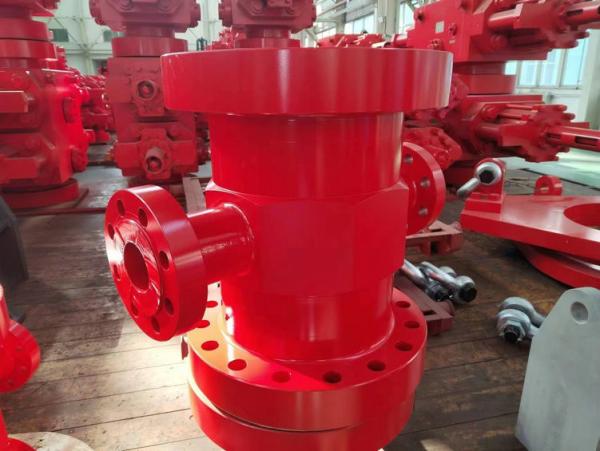

13 Inch Mud Cross Drilling Spool 2000 Psi Casing Spool Wellhead
