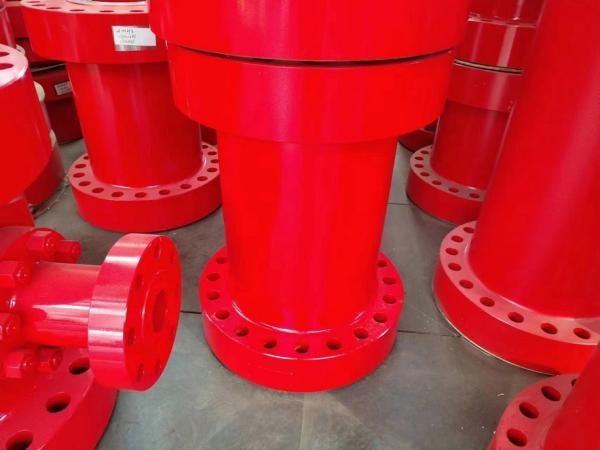

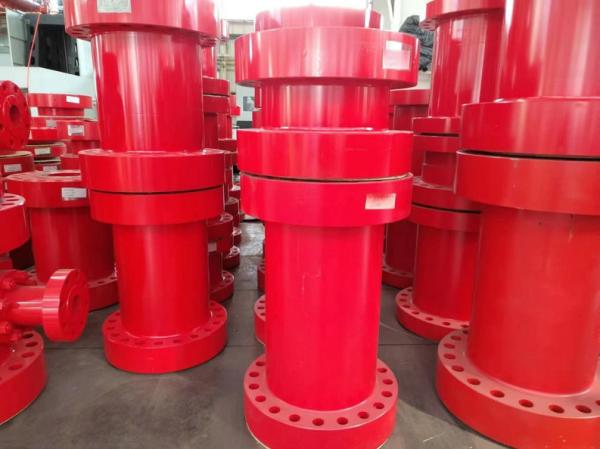

3000 Psi Double Studded Adapter Wellhead Adapter Flange For Well Drilling
3000 Psi Double Studded Adapter Wellhead Adapter Flange For Well Drilling
3000 Psi Double Studded Adapter Wellhead Adapter Flange For Well Drilling
3000 Psi Double Studded Adapter Wellhead Adapter Flange For Well Drilling
Specifications
Brand Name :
Hebei Pantu
Model Number :
C.5.22
Certification :
API 6A
Place of Origin :
China
MOQ :
1 set
Price :
Negitionable
Payment Terms :
T/T
Supply Ability :
5 sets per 3 months
Delivery Time :
7 work days
Packaging Details :
Iron Case
Name :
Double Studded Adapter
Size :
3- 1/8" 3,000 psi x 3 1/8" 5,000 psi
Rated Working Pressure :
3- 1/8" 3,000 psi x 3 1/8" 5,000 psi
Processing Type :
Forging
Standard :
API 6A
working medium :
oil, natural gas&mud
Description

DSA Double Studded Adapter 3- 1/8" 3,000 psi x 3 1/8" 5,000 psi

DSA Double Studded Adapter is a combination of flanges of different sizes and pressure ratings. DSA Double Studded Adapter for reliable and consistent performance on their production system. Our DSA Double Studded Adapter are in various sizes and pressure ratings as per customer's specified thickness, consistent with design considerations. It is an important device to connect the different flange for wellhead, so the material of the body and studs and nuts shall conform the related requirements. The size is by API flange certification.

DSA Double Studded Adapter Parameter

C.5.1 13-5/8” 10,000 psi x 13-5/8” 5,000 psi.
C.5.2 13-5/8” 10,000 psi x 13-5/8” 3,000 psi.
C.5.3 13-5/8” 10,000 psi x 13-5/8” 2,000 psi.
C.5.4 13-5/8” 10,000 psi x 11” 10,000 psi.
C.5.5 13-5/8” 10,000 psi x 11” 5,000 psi.
C.5.6 13-5/8” 10,000 psi x 11” 3,000 psi.
C.5.7 13-5/8” 10,000 psi x 11” 2,000 psi.
C.5.8 13 5/8” 10,000 psi x 7-1/16” 10,000 psi.
C.5.9 13 5/8” 10,000 psi x 7-1/16” 5,000 psi.
C.5.10 13-5/8” 10,000 psi x 7-1/16” 3,000 psi.
C.5.11 13-5/8” 10,000 psi x 7-1/16” 2,000 psi.
C.5.12 13 5/8” 10,000 psi x 9” 10,000 psi.
C.5.13 13 5/8” 10,000 psi x 9” 5,000 psi.
C.5.14 13 5/8” 10,000 psi x 9” 3,000 psi.
C.5.15 13 5/8” 10,000 psi x 9” 2,000 psi.
C.5.16 4-1/16” 10,000 psi x 3-1/16” 10,000 psi.
C.5.17 4-1/16” 10,000 psi x 3-1/8” 5,000 psi.
C.5.18 4-1/16” 5,000 psi x 3-1/8” 5,000 psi.
C.5.19 2- 1/16”, 5000 psi x 3 1/8” 5000 psi
C.5.20 2- 1/16”, 2,000 psi x 3 1/8” 5,000 psi
C.5.21 3- 1/8”, 2,000 psi x 3 1/8” 5,000 psi
C.5.22 3- 1/8”, 3,000 psi x 3 1/8” 5,000 psi

FEATURES:

  1. DSA Double Studded Adapter is the part that is often used in the wellhead system.
  2. DSA Double Studded Adapter is designed and manufactured in accordance with API 6A standard
  3. DSA Double Studded Adapter is used when there is a restriction of space in the drill string. They provide an ideal solution by hooking up two different equipment of different size and pressure rating
  4. Ring Grooves can be inlayed with a variety of stainless steels and high Nickel Alloys.
