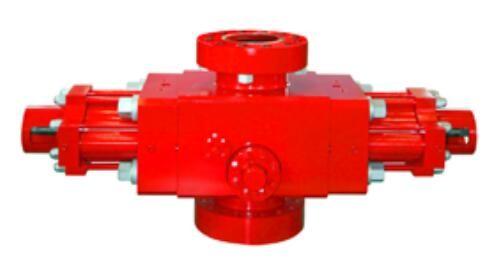

7 1/16-15000psi Single Ram Bop Oil Well Blowout Preventer In Oilfield
7 1/16-15000psi Single Ram Bop Oil Well Blowout Preventer In Oilfield
Specifications
Brand Name :
Cameron/Shaffer/Rongsheng/Shenkai
Model Number :
7 1/16"-15000psi
Certification :
API 16A
Place of Origin :
China
MOQ :
1 set
Price :
USD 2500 set
Payment Terms :
T/T
Supply Ability :
5 sets per 3 months
Delivery Time :
7 work days
Packaging Details :
Iron Case
Name :
Single Ram Bop In Oilfield
Size :
7 1/16"
Pressure :
15000psi
Hydraulic controlled rated working pressure (MPa/psi) :
21/3,000
Other Name :
Oil Well Blowout Preventer
Application :
Oilfield
Description

7 1/16" 15000psi Single Ram Bop In Oilfield

Feature of Single Ram Bop

1. The design and manufacture of the Single Ram Bop complies requirements of API 16A and GB/T20174 completely.It is equipped with rams of various dimensions that it can meet all kinds of demands.
2. Pressure-bearing parts are made of high-quality alloy steel,so it is with good strength and impact toughness.
3. The side door sealing adopts combined seal rings,so its well killing sealing assistance ability is strong.
4. Use ram of floating or integral type, the sealing is reliable and it it easy for renewal.

(We can provide the BOP: bore size from 7 1/16” to 30”, pressure from 500psi to 20000psi, Not limited in the below list)

Item Specification for Oil Rig Blowout Preventer System
Size and model

7 1/16″

-3000psi

7 1/16″

-5000psi

7 1/16″

-100000psi

9″-

3000psi

9″

-5000psi

11″

-3000psi

11″

-5000psi

11″

-10000psi

13 5/8″

-3000psi

13 5/8″

-5000psi

13 5/8″

-10000psi

20 3/4″

-3000psi

21 1/4″

-5000psi

26 3/4”

-3000psi
Bore (mm/in.) 179.4 179.4 179.4 228.6 228.6 279.4 279.4 279.4 346.1 346.1 346.1 527 539.8 679.4
7 1/16 7 1/16 7 1/16 9 9 11 11 11 13 5/8 13 5/8 13 5/8 20 3/4 21 1/4 26 3/4
Rated working pressure (MPa/psi) 21 35 70 21 35 21 35 70 21 35 70 21 35 21
3,000 5,000 10,000 3,000 5,000 3,000 5,000 10,000 3,000 5,000 10,000 3,000 5,000 3,000
Hydrostatic pressure testing pressure (MPa/psi) 31.5 52.5 105 31.5 52.5 31.5 52.5 105 31.5 52.5 105 31.5 70 31.5
4,500 7,500 15,000 4,500 7,500 4,500 7,500 15,000 4,500 7,500 15,000 4,500 10,000 4,500
Hydraulic-controlled rated working pressure (MPa/psi) 21/3,000
Recommended hydraulic working pressure seal pipe (MPa/psi) 1218~1522psi
Volume for open one set rams 36 L
Volume for close one set rams 40 L
The outlet of hydraulic oil NPT 1”
Temperature grade of metal T-20/250(-29℃～121℃)
Temperature grade of non-metal BAB (-18℃~66℃~93℃)
Medium material contact with well liquid Per to NACE MR-01-75, meet API 16A 4th Edition Standard

We always focus on good quality and excellentservice, comply strictly with international
trade practice, to be aworld-class petroleum equipment supplier. We
warmly Welcome our businesspartner to establish
long-term cooperative relationship with us.
