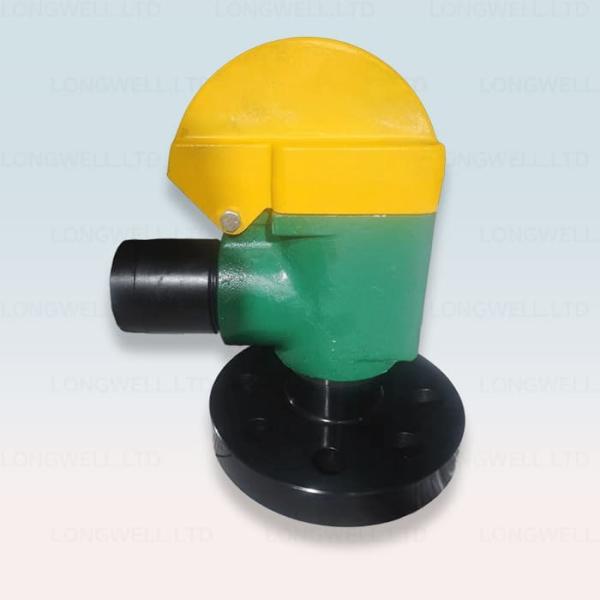

What is Mud Pump Relief Valve JA-3?

The relief valve should be set to 50% greater than the normal operating pressure (70 psi for normal operations, but this value may vary depending on the specifics of the job).

It is recommended that the valve be located on the suction manifold of the pump, but may be located elsewhere on the suction line at the customer’s discretion.

The outlet line from the relief valve should gradually slope down to the tank level, and should be supported to prevent any dips or low spots where mud could collect, harden and potentially block flow.

It is recommended that a suction pressure relief valve be used in the suction line to prevent damage to either pump in the event of a high pressure surge occurring in the line.

Application of Mud Pump Relief Valve JA-3

Safety valve is used as a mud pump fluid end accessory in the oil drilling industry.

Function of Mud Pump Relief Valve JA-3

The safety valve serves to guarantee smooth operation of a mud pump within rated working pressure range.

Features of Mud Pump Relief Valve JA-3

The safety valve offers easy reset, flexible operation, small bearing area, and high universality.

How to install the Mud Pump Relief Valve JA-3?

Shear pin safety valve is used at the discharge part of the mud pump.JA-3 shear pin safety valve changes the discharging pressure by changing the position of the shear pin ,which is operation easy and work reliable.

JA-3 Shear Relief Valve, also named shear pin safety valve is used at the discharge part of the mud pump.

JA-3 shear pin safety valve changes the discharging pressure by changing the position of the shear pin ,which is operation easy and work reliable.

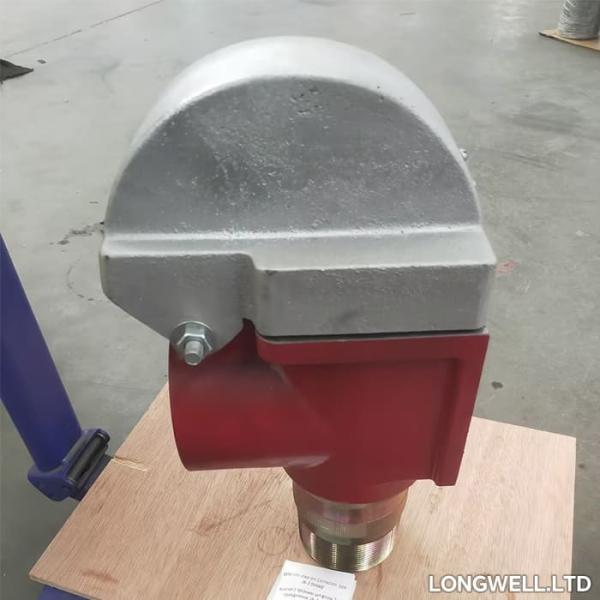

connection type of the Mud Pump Relief Valve JA-3:

screw thread

flange

Features of of the Mud Pump Relief Valve JA-3:

1. Opening and shutting neatly.

2. Piston's bearing pressure area is small.

3. To reposition simply.

4. Safety Valve may use for multifold mud pumps.

5. flange / screw thread connection

6. Max pressure:35Mpa
