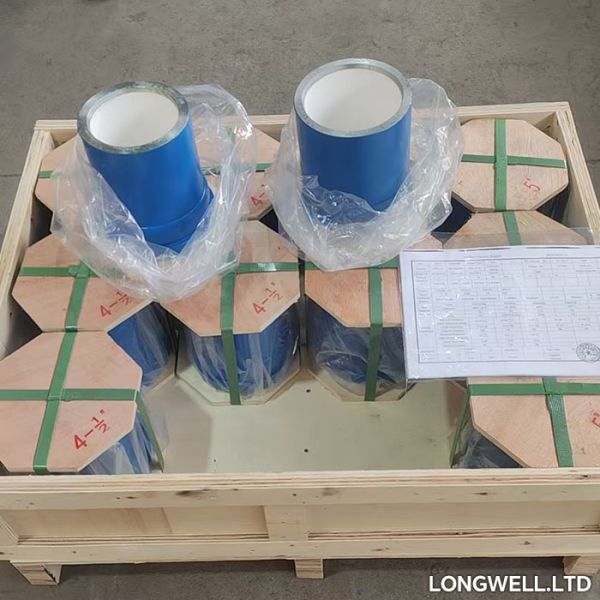

Ceramic Liner / Ceramic Bushing Part No.: RS11306A.05.18.00 For F-1000 drilling pump
Ceramic Liner / Ceramic Bushing Part No.: RS11306A.05.18.00 For F-1000 drilling pump
Specifications
Brand Name :
LONGWELL
Model Number :
RS11306A.05.18.00
Place of Origin :
CHINA
MOQ :
1
Payment Terms :
T/T
Supply Ability :
500 PCS/MONTH
Packaging Details :
Iron Pallet
Description

Ceramic Liner / Ceramic Bushing
Part No.: RS11306A.05.18.00
For F-1000 drilling pump

Technical specifications:

Inner diameter: Ø 6 3/4" (171.45 mm)
Outer diameter: Ø 196 mm
Flange diameter: Ø 222 mm
Height: 365 mm
Technical requirements:

Ceramic inner working surface
Minimum service life: 3000 operating hours in polymer medium
Working pressure: 25 MPa
Ceramic material composition:

Aluminum oxide (Al₂O₃)
Zirconium dioxide (ZrO₂)
Yttrium oxide (Y₂O₃)
Mechanical properties:

Flexural strength: approx. 560 MPa
Hardness: 91 HRA (Rockwell A)
Wear resistance: 0.28 cm³
Warranty requirement:

Minimum 3000 operating hours after installation in polymer medium
