Automated Optical Inspection Bend Rebend Testing Machine For Engine Valve Weld Seam Detection
Automated Optical Inspection Bend Rebend Testing Machine For Engine Valve Weld Seam Detection
Automated Optical Inspection Bend Rebend Testing Machine For Engine Valve Weld Seam Detection
Automated Optical Inspection Bend Rebend Testing Machine For Engine Valve Weld Seam Detection
Specifications
Brand Name :
M-TECH
Certification :
CE.Omron
Place of Origin :
China
MOQ :
1 set
Price :
USD32000-USD40000/set
Supply Ability :
200 sets per year
Delivery Time :
90 work days
Packaging Details :
Plywood case
Description

Weld Seam Detection Machine for Engine Valve

The weld seam detection machine uses camera technology to inspect the height and width of laser welding weld seams, promptly identifying welding defects, enhancing welding quality and production efficiency, and reducing costs. By monitoring the shape of the weld seam in real time, it assists operators in adjusting parameters to ensure compliance with standard requirements, making it an indispensable tool in the modern welding industry.

Performance of Weld Seam Detection Machine for Engine Valve

1,The device is suitable for production of Stem diameter Φ5.0－Φ6.3 mm, length 105-135 mm, welding seam diameter: <20mm, Head diameter: Φ25-33 mm valve

2,Keyence 3D laser measurement LJ-X8080 for the inspection. Detection width:35mm, Repeatability precision:X-axis 1μm, Z-axis:0.5μm

3,Cycle time: ≤5.5s(Target:<5s).

4,Working level Height: 1100mm

5,The feeding frame is strong and nice appearance,the welding line is firm and smooth ,Easy to adjust and two pieces of material is not allowed to appear at the same time.

6,The feeding system is running stable and reliable,moreover,it can be adjusted flexibly,in case failure occurs,there will be interlocking and alarming.

7,The equipment inlet is equipped with FRL and a switch for discharging residual gas.
Intermediate relay fixed on the Pneumatic solenoid valve control circuit.

8,Protection cover by welding net and aluminum profile

Automated Optical Inspection Bend Rebend Testing Machine For Engine Valve Weld Seam DetectionAutomated Optical Inspection Bend Rebend Testing Machine For Engine Valve Weld Seam DetectionAutomated Optical Inspection Bend Rebend Testing Machine For Engine Valve Weld Seam DetectionAutomated Optical Inspection Bend Rebend Testing Machine For Engine Valve Weld Seam Detection

Our service

1. Automation solution design and consulting
2. Automation equipment supply and integration
3. Software development and system integration
4. After-sales support and maintenance
5. Training and knowledge transfer

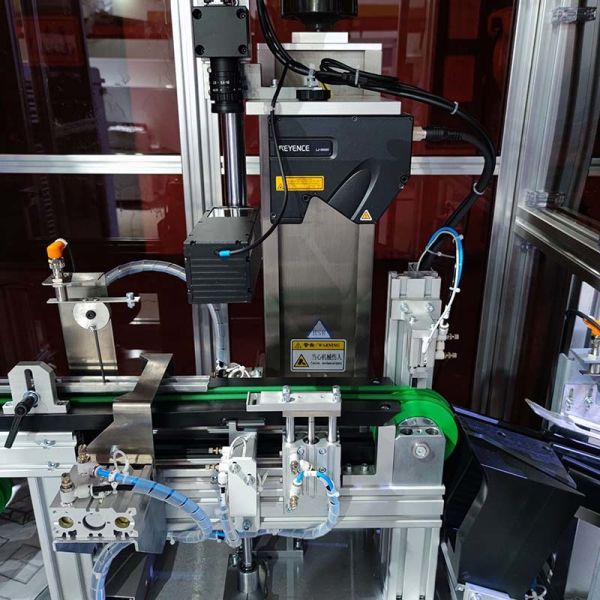

Feature picture of Weld Seam Detection Machine

Automated Optical Inspection Bend Rebend Testing Machine For Engine Valve Weld Seam Detection
