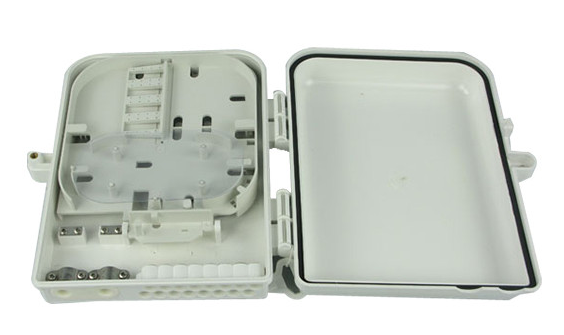

Grey Fiber Optic Distribution Box 48 Ports ABS FTTH Fiber Termination Box
Grey Fiber Optic Distribution Box 48 Ports ABS FTTH Fiber Termination Box
Grey Fiber Optic Distribution Box 48 Ports ABS FTTH Fiber Termination Box
Grey Fiber Optic Distribution Box 48 Ports ABS FTTH Fiber Termination Box
Specifications
Brand Name :
MingTong
Certification :
ISO
Place of Origin :
Dongguan CHINA
MOQ :
200
Price :
20-5000RNB/Each
Payment Terms :
L/C,T/T
Delivery Time :
It depends on the actual situation
Packaging Details :
cardboard box
Supply Ability :
2000 copies/Day
Name :
Fiber Optic Distribution Box
Operating Temperature :
-40°C to 60°C
Adapter Port :
7
Model :
2/48 Fiber Distribution Box
Install Splitter :
YES
Temperature :
-40°C - 60°C
Product Size :
320*260*100mm
Colorful Logo :
Support
Application :
Indoor or Outdoor
Item :
distribution box
Description

Grey Fiber Optic Distribution Box 48 Ports ABS FTTH Termination Box


Grey Fiber Optic Distribution Box 48 Ports ABS FTTH Fiber Termination BoxGrey Fiber Optic Distribution Box 48 Ports ABS FTTH Fiber Termination Box

Grey Fiber Optic Distribution Box 48 Ports ABS FTTH Fiber Termination Box

Performance index
Item Technical Data
Application 3.0*2.0 mm drop cable or indoor cable
Fiber diameter 125μm (652 & 657)
Tight cladding diameter 250μm & 900μm
Mode of application Single mode & Duplex mode
Tensile strength >50N
End-use temperature -40~+85ºC
Adaptor SC & FC
Insertion loss ≤0.2db(1310nm & 1550nm)
Output 2

Environmental reguirement
Working temprature : -40ºC~+85ºC
Relative humidity : ≤85% (+30ºC)
Atmospheric pressure : 70Kpa~106Kpa

Main technical datasheet
Insertion loss : ≤0.2db
UPC return loss : ≥50db
APC return loss : ≥60db
Life of insection and extraction : >1000 times

Thunder-proo technical datasheet
The grounding device is isolated with the cabinet, isloation resistance is less than 2*104MΩ/500V(DC);

IR≥2*104MΩ/500V(DC)
The withstand voltage between grounding device and cabinet is no less than 3000V(DC)/min, no puncture,

no flashover; U≥3000V
