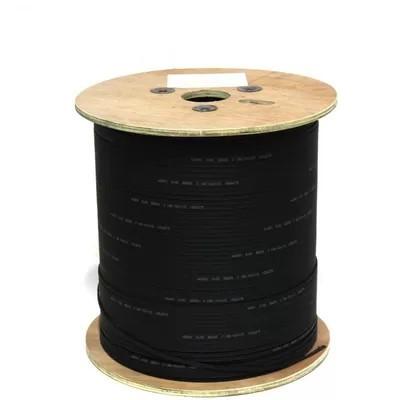

4 Core G652D LSZH FRP Kfrp FTTH Drop Cable 1km Per Drum IEC 60794 Standard
4 Core G652D LSZH FRP Kfrp FTTH Drop Cable 1km Per Drum IEC 60794 Standard
4 Core G652D LSZH FRP Kfrp FTTH Drop Cable 1km Per Drum IEC 60794 Standard
4 Core G652D LSZH FRP Kfrp FTTH Drop Cable 1km Per Drum IEC 60794 Standard
4 Core G652D LSZH FRP Kfrp FTTH Drop Cable 1km Per Drum IEC 60794 Standard
4 Core G652D LSZH FRP Kfrp FTTH Drop Cable 1km Per Drum IEC 60794 Standard
Specifications
Brand Name :
MingTong
Certification :
ISO
Place of Origin :
Dongguan CHINA
Price :
300-2000RNB/KM
Payment Terms :
L/C, T/T
Delivery Time :
It depends on the actual situation
MOQ :
20km
Packaging Details :
Wooden scroll + cardboard box / Wooden scroll + wooden board
Supply Ability :
200km/Day
Model NO. :
FTTH Drop Cable
Outer Sheath Color :
Black
Strengthen Member :
Steel Or FRP
Fiber Counts :
Fiber Counts
Certificate :
Anatel,ROHS,CE,FCC
Outer Jacket Materail :
LSZH
Weight :
26kg
Highlight :
Kfrp FTTH Drop Cable, 4 Core FTTH Drop Cable, LSZH G652D LSZH Cable
Description

4 Core G652D LSZH FRP Kfrp FTTH Drop Cable 1km Per Drum IEC 60794 Standard

4 Core G652D LSZH FRP Kfrp FTTH Drop Cable 1km Per Drum IEC 60794 Standard
Outdoor Fiber Optic Cable 1 2 4 Core G652D LSZH FRP Kfrp FTTH Drop Cable 1km Per Drum

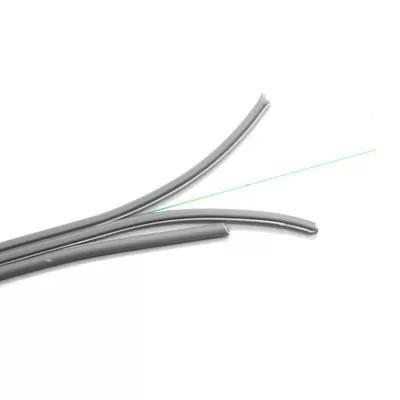

The FTTH drop cable is positioned in the centre. Two parrallel fiber reinforced plastics(FRP) are placed at the two sides. A steel wire as the additional strength member is also applied. Then, the cable is completed with a black or color PVC/LSZH sheath. The typical self-supporting bow-type drop fiber optic cable consists of GJXFH/GJXH cable and an additional strength member (steel wire or stranded steel wire).

Characteristics:

1. Special low-bend-sensitivity fiber provides high bandwidth and excellent communication transmission property.
2. Two parallel FRP/ steel strength members ensure good performance of crush resistance to protect the fiber.
3. Novel groove design, strip and splice, simplified installation and maintenance, higher tensile strength.
4. Single Steel wire as the additional strength member ensures good performance of tensile strength.
5. Simple structure lightweight and high practicability.
6. Novel flute design, easilystrip and splice, simplify the installation and maintenance.
7. Low smoke, zero-halogen and flame retardant sheath, environment-friendly, good safe.easily

Application:
1. High-performance optical network operating
2. High-speed optical routes in buildings (FTTH)
3. Suitable as cable extending from outdoor (as aerial cable) to indoor

Standards:
Comply with standard YD/T 1997-2009,ICEA-596,GR-409,IEC 60794.

Structure

Structure Unit Parameter
Fiber count Fibers 2
Diameter mm 5.0*2.0
Weight Kg/km Approx.21
Sheath color Black
Sheath material LSZH
O.D of steel wire mm 1.0±0.05mm
Strength member mm 0.5mm FRP
Tensile strength N 1500
Crush Resistance N 2200
Bending Radius Dynamic 30×Cable Diameter
Static 15×Cable Diameter
Operating Temperature ℃ -40 --- +70

Test Datasheet

Category Description Specifications
G.657A1
Optical Specifications Attenuation @1310-1625nm ≤0.36dB/km
@1383±3nm ≤0.36dB/km
@1550nm ≤0.22dB/km
Attenuation discontinuity ≤0.05 dB
Attenuation vs. Wavelength @1285~1330nm ≤0.05 dB/km
@1525~1575nm ≤0.05 dB/km
Zero Dispersion Wavelength 1300~1324nm
Zero Dispersion Slope ≤0.092ps/(nm2.km)
Dispersion @1310nm ≤3.5 ps/nm.km
@1550nm ≤18 ps/nm.km
Polarization Mode Dispersion(PMD) ≤0.2ps/km1/2
Cable Cutoff Wavelength(λcc) ≤1260nm
Effective Group Index of Refraction @1310nm 1.4675
@1550nm 1.4681
Macro bend loss (30mm radius ,100turns) 1625nm ≤0.1 dB

Geometric

Specifications

 Mode Field Diameter @1310nm 9.2±0.6μm
@1550nm 10.4±0.8μm
Cladding Diameter 125±1μm
Cladding Non-Circularity ≤1.0%
Coating Diameter 245±7μm
Coating/Cladding Concentricity Error ≤8μm
Core/Cladding Concentricity Error ≤0.8μm

Mechanical

Specifications

 Proof Test level ≥1.0%
Fiber Curl Radius ≥4.0m
Peak Coating Strip Force 1.3~8.9N
