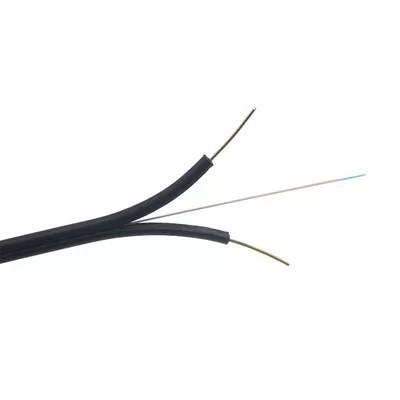

Indoor LSZH Fiber Drop Wire G657A1 G652D G652A 6 Core Comms Cable
Indoor LSZH Fiber Drop Wire G657A1 G652D G652A 6 Core Comms Cable
Indoor LSZH Fiber Drop Wire G657A1 G652D G652A 6 Core Comms Cable
Indoor LSZH Fiber Drop Wire G657A1 G652D G652A 6 Core Comms Cable
Specifications
Brand Name :
MingTong
Certification :
ISO
Place of Origin :
Dongguan CHINA
Price :
300-2000RNB/KM
Payment Terms :
L/C, T/T
Delivery Time :
It depends on the actual situation
MOQ :
20km
Packaging Details :
Wooden scroll + cardboard box / Wooden scroll + wooden board
Supply Ability :
200km/Day
Name :
6 Core Comms Cable
Fiber Type :
Single-Mode G657A1
Number Of Fiber :
1
Construction :
Steel Messenger
Bending Radius :
10D/20D (mm)
Outer Jacket Materail :
LSZH
Samples :
In Stock
Highlight :
10D LSZH Fiber Drop Wire, G652A Fiber Drop Wire, G652A 6 Core Comms Cable
Description

Indoor LSZH Fiber Drop Wire G657A1 G652D G652A 6 Core Comms Cable

Indoor LSZH Fiber Drop Wire G657A1 G652D G652A 6 Core Comms Cable

FTTH G657A1 G652D G652A 1 2 4 Core Communication Cable Indoor Drop Cable

FTTH indoor drop cable is constructed with two single mode fiber. The cable is protected by a dielectric strength
member made of fiberglass reinforced plastic (FRP) and a LSZH outer jacket. Ideal for use in FTTH & FTTx applications between the building’s main telecommunications room and the apartment / office consolidation point.
Features and Benefits
1. Easy to Strip
2. Direct Termination
3. Small Diameter
4. Complete Dry Design
5. Water Resistance
6. Halogen Free Fire Retardant / Low Smoke Zero Halogen
7. Flexible
8. Enforced with Non-Metallic Strength Members
Application
1. FTTH (fiber to the home) indoor cabling and distribution.
2. Access network and local area network (LAN).
3. Indoor Interconnect and Patch-cord Applications
4. Indoor FTTH applications horizontal and riser
5. Clipping to surfaces including skirting boards
6. Short distance external use with black LSZH jacket
7. Used end users directly cabling and Fiber optic communication system

Structure

Structure Unit Parameter
Fiber count Fibers 2
Diameter mm 4.0*2.0
Weight Kg/km Approx.17.7
Sheath color Black
Sheath material LSZH
O.D of steel wire mm 1.0±0.05mm
Strength member mm 0.5mm FRP
Tensile strength N 1500
Crush Resistance N 2200
Bending Radius Dynamic 30×Cable Diameter
Static 15×Cable Diameter
Operating Temperature ℃ -40 --- +70

Test Datasheet

Category Description Specifications
G.657A1
Optical Specifications Attenuation @1310-1625nm ≤0.36dB/km
@1383±3nm ≤0.36dB/km
@1550nm ≤0.22dB/km
Attenuation discontinuity ≤0.05 dB
Attenuation vs. Wavelength @1285~1330nm ≤0.05 dB/km
@1525~1575nm ≤0.05 dB/km
Zero Dispersion Wavelength 1300~1324nm
Zero Dispersion Slope ≤0.092ps/(nm2.km)
Dispersion @1310nm ≤3.5 ps/nm.km
@1550nm ≤18 ps/nm.km
Polarization Mode Dispersion(PMD) ≤0.2ps/km1/2
Cable Cutoff Wavelength(λcc) ≤1260nm
Effective Group Index of Refraction @1310nm 1.4675
@1550nm 1.4681
Macro bend loss (30mm radius ,100turns) 1625nm ≤0.1 dB

Geometric

Specifications

 Mode Field Diameter @1310nm 9.2±0.6μm
@1550nm 10.4±0.8μm
Cladding Diameter 125±1μm
Cladding Non-Circularity ≤1.0%
Coating Diameter 245±7μm
Coating/Cladding Concentricity Error ≤8μm
Core/Cladding Concentricity Error ≤0.8μm

Mechanical

Specifications

 Proof Test level ≥1.0%
Fiber Curl Radius ≥4.0m
Peak Coating Strip Force 1.3~8.9N
