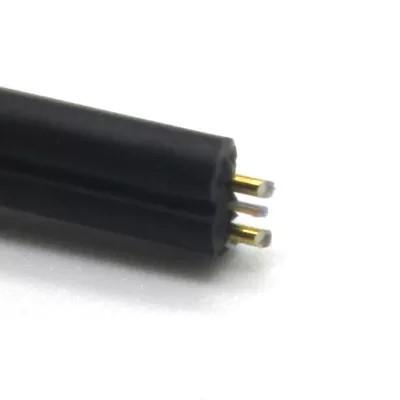

Low Smoke FRP Flat FTTH Drop Cable 4 Core Singlemode G657A1 G652D
Low Smoke FRP Flat FTTH Drop Cable 4 Core Singlemode G657A1 G652D
Low Smoke FRP Flat FTTH Drop Cable 4 Core Singlemode G657A1 G652D
Low Smoke FRP Flat FTTH Drop Cable 4 Core Singlemode G657A1 G652D
Specifications
Brand Name :
MingTong
Certification :
ISO
Place of Origin :
Dongguan CHINA
Price :
300-2000RNB/KM
Payment Terms :
L/C, T/T
Delivery Time :
It depends on the actual situation
MOQ :
20km
Packaging Details :
Wooden scroll + cardboard box / Wooden scroll + wooden board
Supply Ability :
200km/Day
Name :
FTTH Drop Cable
Model Number :
GJYXCH
Material Shape :
Flat Wire
Fiber Color :
Green, Yellow
Fiber Type :
9/125 G652D
Sheath Color :
Black And White
Cable Weight (Kg/km) :
28KG
Short Term Tensile ( N) :
200; 600
Warranty :
2 Year
Highlight :
Flat FTTH Drop Cable, FRP FTTH Drop Cable, g657a1 fiber Cable
Description

Low Smoke FRP Flat FTTH Drop Cable 4 Core Singlemode G657A1 G652D

Low Smoke FRP Flat FTTH Drop Cable 4 Core Singlemode G657A1 G652D

Indoor 1 2 4 Core Singlemode G657A1 G652D FRP Fiber Optic Flat FTTH Drop Cable
Fiber Optic Drop Cable access to the use of dish-shaped optical cable (indoor wiring) is the optical communication unit (fiber) in the center, placed on both sides of two parallel non-metallic reinforcement (FRP) or metal reinforcing member, and finally extrusion black or color poly Vinyl chloride (PVC) or LSZH (LSZH, low smoke, halogen-free, flame retardant) jacket.

Features:

  1. 1. Compliant with: ANSI,Bekkcore,TIA/EIA,IEC Strandards
  2. 2. PVC&LSZH cable option
  3. 3. Low insertion loss and hight return loss
  4. 4. Excellent repeatability and changeability
  5. 5. Optical performance 100% factory test

Application:

  1. All types of fiber cables with different structures
  2. High performance optical network operating
  3. High speed optical routes in buildings (FTTx)

Structure

Structure Unit Parameter
Fiber count Fibers 2
Diameter mm 4.0*2.0
Weight Kg/km Approx.17.7
Sheath color Black
Sheath material LSZH
O.D of steel wire mm 1.0±0.05mm
Strength member mm 0.5mm FRP
Tensile strength N 1500
Crush Resistance N 2200
Bending Radius Dynamic 30×Cable Diameter
Static 15×Cable Diameter
Operating Temperature ℃ -40 --- +70

Test Datasheet

Category Description Specifications
G.657A1
Optical Specifications Attenuation @1310-1625nm ≤0.36dB/km
@1383±3nm ≤0.36dB/km
@1550nm ≤0.22dB/km
Attenuation discontinuity ≤0.05 dB
Attenuation vs. Wavelength @1285~1330nm ≤0.05 dB/km
@1525~1575nm ≤0.05 dB/km
Zero Dispersion Wavelength 1300~1324nm
Zero Dispersion Slope ≤0.092ps/(nm2.km)
Dispersion @1310nm ≤3.5 ps/nm.km
@1550nm ≤18 ps/nm.km
Polarization Mode Dispersion(PMD) ≤0.2ps/km1/2
Cable Cutoff Wavelength(λcc) ≤1260nm
Effective Group Index of Refraction @1310nm 1.4675
@1550nm 1.4681
Macro bend loss (30mm radius ,100turns) 1625nm ≤0.1 dB

Geometric

Specifications

 Mode Field Diameter @1310nm 9.2±0.6μm
@1550nm 10.4±0.8μm
Cladding Diameter 125±1μm
Cladding Non-Circularity ≤1.0%
Coating Diameter 245±7μm
Coating/Cladding Concentricity Error ≤8μm
Core/Cladding Concentricity Error ≤0.8μm

Mechanical

Specifications

 Proof Test level ≥1.0%
Fiber Curl Radius ≥4.0m
Peak Coating Strip Force 1.3~8.9N

Low Smoke FRP Flat FTTH Drop Cable 4 Core Singlemode G657A1 G652D

Low Smoke FRP Flat FTTH Drop Cable 4 Core Singlemode G657A1 G652D

Low Smoke FRP Flat FTTH Drop Cable 4 Core Singlemode G657A1 G652D
